KLOTZ split keyboard

GEIGEIGEIST·KLOTZ·PCB/Klotz.kicad_pcb

KLOTZ split keyboard PCB layout, top view — open source board by GEIGEIGEIST

About the KLOTZ split keyboard PCB

KLOTZ split keyboard is an open source PCB design by GEIGEIGEIST, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 120.6 × 85.5 mm, with 50 components from 11 distinct parts.

Other key parts include the nice!nano. By type, the board carries 18 switches, 17 diodes, 4 jumpers, 3 inductors, 3 resistors and 2 battery holders.

It belongs with the keyboards, iot & wireless and dev boards & breakouts designs in this gallery.

From the project

KLOTZ is 34 keys column-staggered split keyboard. It uses an encoder and three status LEDs on each side.

- upload the ZIP - sometimes the Gerber preview from JLCPCB can't display the PCB, even when the files are fine. In this case use this dimensions: 120.5 mm* 85.5 mm - PCB Thickness 1.6mm - 2 layers - PCB Qty as much as you like. But be aware, that you need 2 PCBs for one keyboard - PCB Color Black - No impedance control - Surface Finish HASL(with lead) if you want the easiest soldering experience or LeadFree HASL. - Remove Order Number Yes

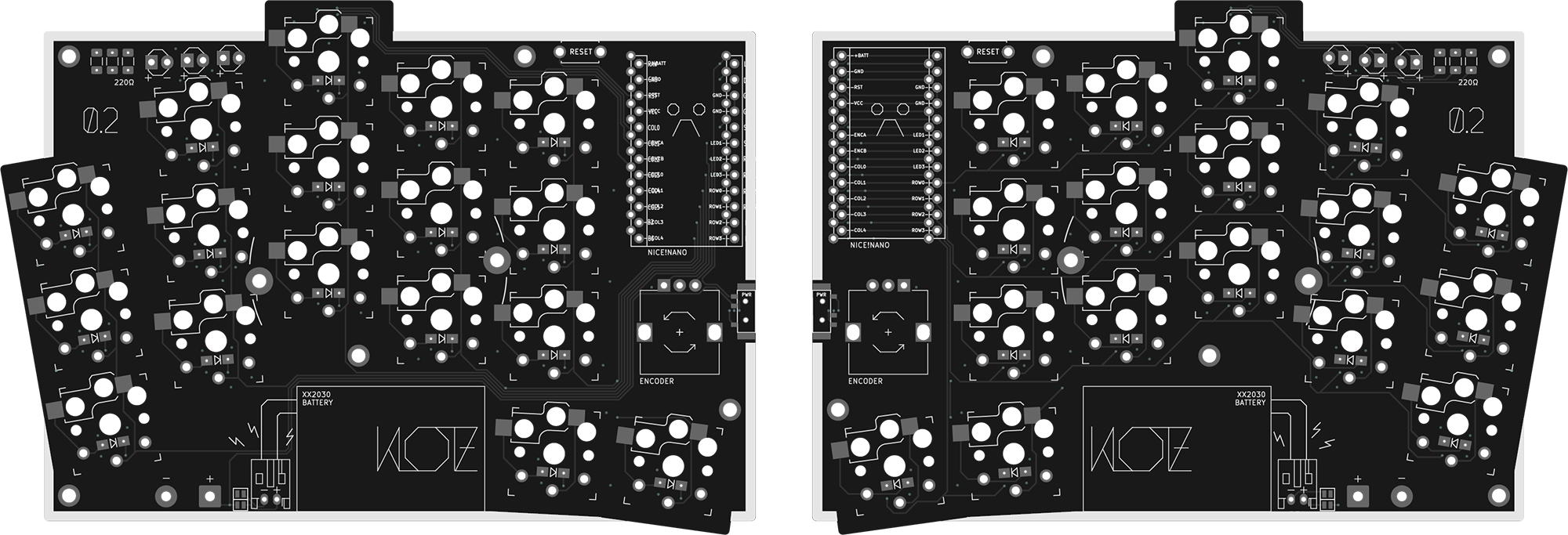

KLOTZ split keyboard, from the project README — From the project README

Main components on the KLOTZ split keyboard

KLOTZ split keyboard bill of materials (BOM)

50 components, 11 distinct parts.

Qty	Part	Footprint	Refs
1	nice!nano	ProMicro_v2	U1
1	Battery_Cell	JST_PH_reversible	BT1
1	Battery_Cell	custombatteryconnector	BT2
4	Device_Jumper_NO_Small	Jumper	JP1, JP2, JP3, JP4
1	SW_DPDT_x2	MSK12C02_reversible	PSW1
1	SW_Push	ResetSW	RSW1
17	MX_SW_HS	Kailh_socket_PG1350_optional_reversible	SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +9
1	RotaryEncoder	RotaryEncoder_Alps_EC12E_Vertical_H20mm	SW18
17	D_Small	Diode_SOD123	D1, D2, D3, D4, D5, D6, D7, D8 +9
3	LED	LED_3mm_reversible	L1, L2, L3
3	220	R_1206_DoubleSided	R1, R2, R3

KLOTZ split keyboard design files

The KiCad project lives in the GEIGEIGEIST/KLOTZ repository on GitHub; these links point at the commit this page was built from.

LayoutPCB/Klotz.kicad_pcb
SchematicPCB/Klotz.kicad_sch

KLOTZ split keyboard: common questions

How big is the KLOTZ split keyboard PCB?

The KLOTZ split keyboard measures 120.6 × 85.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the KLOTZ split keyboard?

50 components, from 11 distinct parts. The full bill of materials is listed on this page.

Where can I download the KLOTZ split keyboard design files?

From the GEIGEIGEIST/KLOTZ repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the KLOTZ split keyboard design in my own project?

Yes, under the terms of its GPL-3.0 license, which GEIGEIGEIST chose for the repository.
