Keyboard PCB layout, top view — open source AVR/Arduino board by georgsnarbuts

About the Keyboard PCB

Keyboard is an open source AVR/Arduino PCB design by georgsnarbuts, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 313 × 129 mm, with 185 components from 28 distinct parts.

Its main chip is the atmega, from the AVR/Arduino family. By type, the board carries 83 diodes, 81 LEDs, 7 resistors, 5 capacitors, 3 switches and 1 IC.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

a 65 % keyboard

A fully custom 65% mechanical keyboard, assembled entirely from through-hole components and left visible under a clear acrylic top plate. Named for the skyline embossed into its back plate.

The sample board pictured was built with Gateron Yellow switches (filmed, lubed with Krytox 205g0) and Durock stabilisers.

firmware/ is a QMK keyboard definition, not a standalone project. Drop it into a QMK checkout before building:

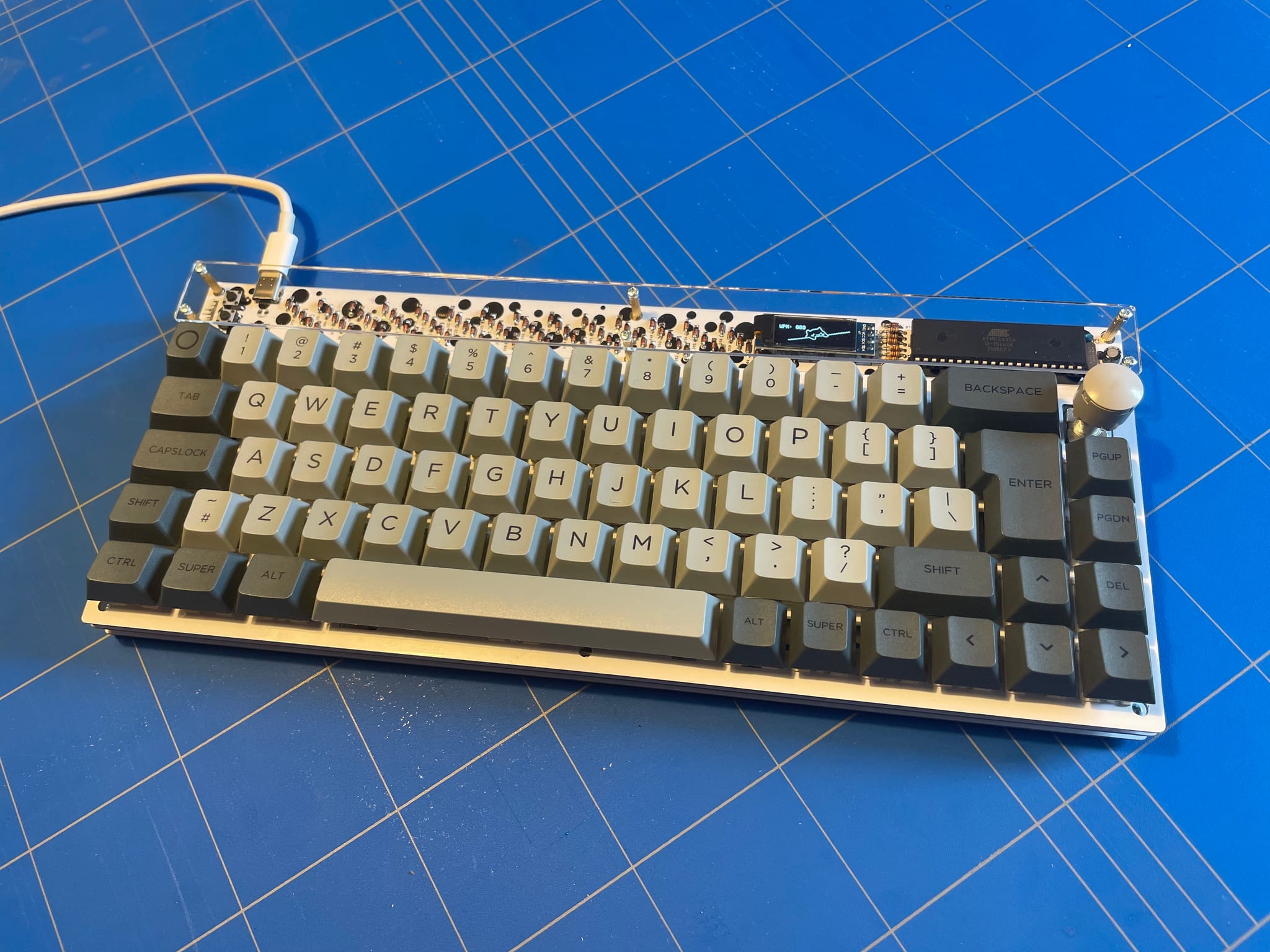

Keyboard, from the project README
From the project README

Main components on the Keyboard

atmega

Keyboard bill of materials (BOM)

185 components, 28 distinct parts.

QtyPartRefs
1
atmega
U1
1
Crystal
Y1
1
AVR-ISP-6
J1
1
500mA
F1
1
KEYSW
K_isoenter1
1
boot switch
SW1
1
Rotary_Encoder_Switch-Device-LCK75-rescue
SW2
1
reset switch
SW3
1
Type-C_USB_C_GCT_USB4085-mysterium-pcb-cache
USB1
6
KEYSW
K_1.5U_LALT1, K_1.5U_LCTRL1, K_1.5U_RALT1, K_1.5U_RCTRL1, K_ANSI\1, K_TAB1
5
KEYSW
K_1.25U_LALT1, K_1.25U_LCNTRL1, K_1.25U_LWIN1, K_ISO_LSHIFT1, K_STEPPED_CAPS1
62
KEYSW
K_1U_BACKSPACE1, K_1U_LCTRL1, K_1U_RALT1, K_1U_RCTRL1, K_1U_RWIN1, K_'1, K_,1, K_-1 +54
1
KEYSW
K_2U_BACKSPACE1
1
KEYSW
K_6.25U_SPACE1
1
KEYSW
K_7U_SPACE1
2
KEYSW
K_ANSI_ENTER1, K_ANSI_LSHIFT1
2
KEYSW
K_CAPS1, K_RSHIFT1
1
OLED-kbd
OL1
80
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +72
2
D_Zener_Small
D74, D75
Show 8 more
QtyPartRefs
1
LED
D76
2
22p
C1, C2
1
4.7u
C3
2
0.1u
C4, C5
2
1.5k
R1, R7
2
5.1k
R2, R3
2
75r
R4, R5
1
10k
R6

Keyboard design files

The KiCad project lives in the georgsnarbuts/riga65 repository on GitHub; these links point at the commit this page was built from.

Keyboard: common questions

What microcontroller does the Keyboard use?

The Keyboard is built around the atmega, from the AVR/Arduino family.

How big is the Keyboard PCB?

The Keyboard measures 313 × 129 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Keyboard?

185 components, from 28 distinct parts. The full bill of materials is listed on this page.

Where can I download the Keyboard design files?

From the georgsnarbuts/riga65 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Keyboard design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Keyboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
