Fan controller

GewoonMaarten·fan-controller·schematic/fan_controller.kicad_pcb

Fan controller PCB layout, top view — open source AVR/Arduino board by GewoonMaarten

About the Fan controller PCB

Fan controller is an open source AVR/Arduino PCB design by GewoonMaarten, published on GitHub under the MIT license. It is a 2-layer board measuring 50 × 40 mm, with 10 components from 9 distinct parts.

Its main chip is the ATmega328P-PU, from the AVR/Arduino family. By type, the board carries 3 connectors, 2 capacitors, 1 IC, 1 crystal, 1 switch and 1 resistor.

From the project

Arduino fan controller with schematic and PCB

The PCB was specificly designed for the Cetus3D 3D printer.

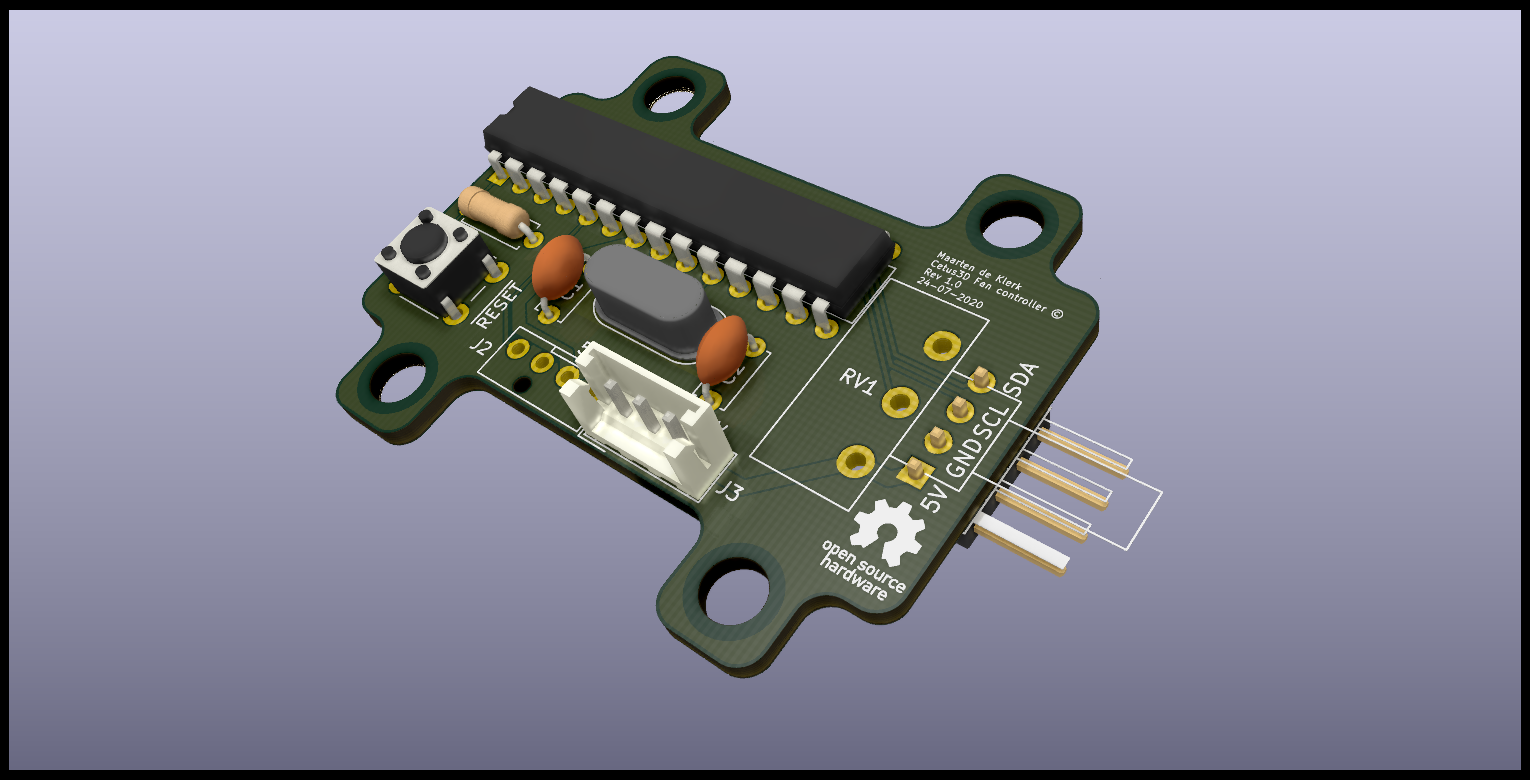

Fan controller, from the project README
From the project README

Main components on the Fan controller

ATmega328P-PU

Fan controller bill of materials (BOM)

10 components, 9 distinct parts.

QtyPartRefs
1
ATmega328P-PU
U1
1
16MHz
Y1
1
SH1106_OLED
J1
1
470531000
J2
1
B3B-EH-A(LF)(SN)
J3
1
1K
RV1
1
SW_Push
SW1
2
22pF
C1, C2
1
10K
R1

Fan controller design files

The KiCad project lives in the GewoonMaarten/fan-controller repository on GitHub; these links point at the commit this page was built from.

Fan controller: common questions

What microcontroller does the Fan controller use?

The Fan controller is built around the ATmega328P-PU, from the AVR/Arduino family.

How big is the Fan controller PCB?

The Fan controller measures 50 × 40 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Fan controller?

10 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the Fan controller design files?

From the GewoonMaarten/fan-controller repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Fan controller design in my own project?

Yes, under the terms of its MIT license, which GewoonMaarten chose for the repository.

Can I test firmware for the Fan controller without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
