Hardware
About the Hardware PCB

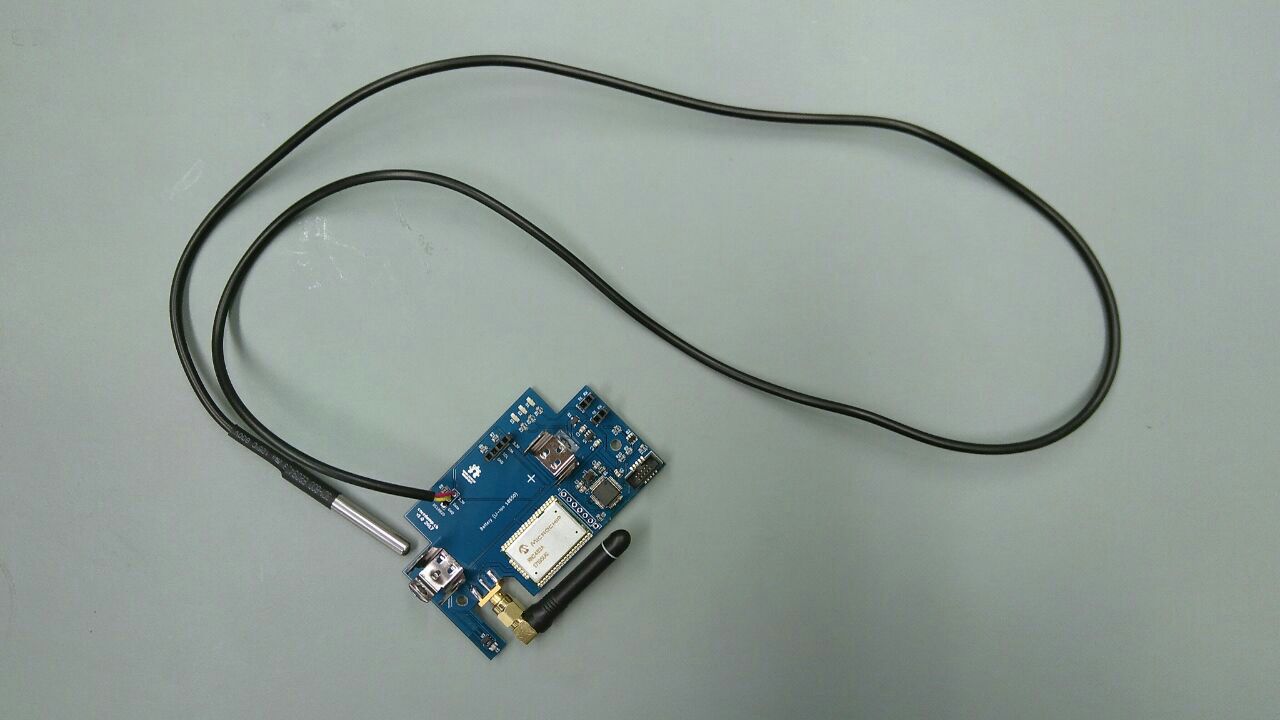

Hardware is an open source PCB design by gfroerli, published on GitHub. It is a 2-layer board measuring 56 × 90 mm, with 37 components from 24 distinct parts.
Other key parts include the LPC11U24FBD48, RN2483, SHT21, LP5907-Q1 and DS18B20. By type, the board carries 12 resistors, 7 capacitors, 5 ICs, 5 connectors, 3 diodes and 2 transistors.
From the project
PCB and other hardware stuff in the watertemp project.
- Enclosure: http://www.produktinfo.conrad.com/datenblaetter/525000-549999/536028-da-01-de-GEHAEUSEABSPICCOLOABSB65G.pdf
Main components on the Hardware
Hardware bill of materials (BOM)
37 components, 24 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LPC11U24FBD48 | LQFP-48_7x7mm_Pitch0.5mm | U1 |
| 1 | RN2483 | RN2483 | U2 |
| 1 | SHT21 | SHT21 | U3 |
| 1 | LP5907-Q1 | SOT-23-5 | U4 |
| 1 | DS18B20 | Pin_Header_Straight_1x03_Pitch2.54mm | U5 |
| 1 | Q_PMOS_GSD | SOT-23 | Q1 |
| 1 | Q_DUAL_NMOS_GSD_PMOS_SGD | TSOT26 | Q2 |
| 1 | 12MHz | Crystal_SMD_Abracon_ABM8G-4pin_3.2x2.5mm | Y1 |
| 1 | RN2483 Ext | Pin_Header_Straight_1x07_Pitch2.54mm | J1 |
| 1 | SWD | SWD_10Pin | J2 |
| 1 | I2C | Pin_Header_Straight_1x04_Pitch2.54mm | J3 |
| 1 | UART1 | Pin_Header_Straight_1x02_Pitch2.54mm | J4 |
| 1 | UART0 | Pin_Header_Straight_1x02_Pitch2.54mm | J5 |
| 1 | Antenna_Shield | SMA_EDGE | AE1 |
| 1 | LiIo | 36-54-ND | BT1 |
| 3 | LED | LED_0805 | D1, D2, D3 |
| 2 | 18pF | C_0805 | C1, C2 |
| 2 | 1uF | C_0805 | C3, C4 |
| 3 | 100nF | C_0805 | C5, C6, C7 |
| 3 | 470Ω | R_0805 | R1, R2, R3 |
Show 4 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 6 | 10KΩ | R_0805 | R4, R5, R6, R7, R11, R12 |
| 1 | 4.7K | R_0805 | R8 |
| 1 | 6.04K | R_0805 | R9 |
| 1 | 9.30K | R_0805 | R10 |
Hardware design files
The KiCad project lives in the gfroerli/hardware repository on GitHub; these links point at the commit this page was built from.
Hardware: common questions
How big is the Hardware PCB?
The Hardware measures 56 × 90 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Hardware?
37 components, from 24 distinct parts. The full bill of materials is listed on this page.
Where can I download the Hardware design files?
From the gfroerli/hardware repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Hardware design in my own project?
The repository has no license, so all rights stay with gfroerli. Use it as a reference, and ask the author before reusing the design.
