TridentSkirtLights
About the TridentSkirtLights PCB
TridentSkirtLights is an open source PCB design by Gi7mo, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 22.6 × 23.5 mm, with 14 components from 2 distinct parts.
Other key parts include the WS2812-2020.
It belongs with the displays & leds designs in this gallery.
From the project
BOM |Part NO. |Qty |LCSC | |--|--|--| | Conn_01x03 | 2 | C131339 | | WS2812-2020 | 12 | C965555 |
BOM |Part NO. |Qty |LCSC | |--|--|--| | Conn_01x03 | 2 | C131339 | | WS2812-2020 | 12 | C965555 |

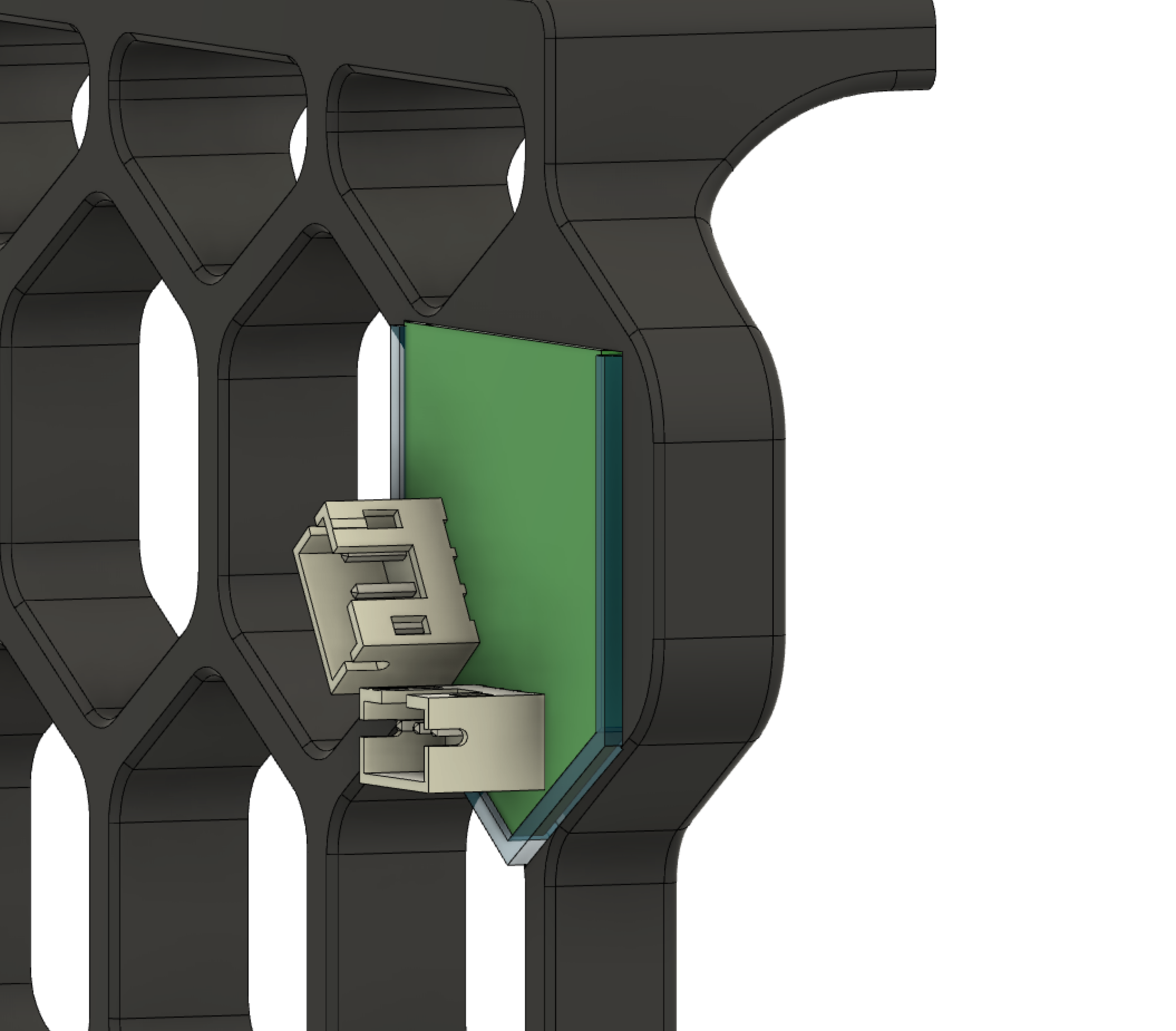

Assembly - Order the pcb at e.g. pcbway or jlcpcb (you need two for one printer) - Or just contact me via Discord "Gi7mo!#4618" i stil have some assembled boards left from my prototyping - Order the parts at e.g. lcsc - Print the new skirts (You WILL need supports) - Print the new logo inserts (You WILL need supports) - in the meantime, assemble the pcb - Push in the new logo inserts in your skirts - Push the pcb into the logo insert, no additional fasteing required - Wire up the pcbs to your…
Main components on the TridentSkirtLights
TridentSkirtLights bill of materials (BOM)
14 components, 2 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 12 | WS2812-2020 | LED_WS2812-2020 | U1, U2, U3, U4, U5, U6, U7, U8 +4 |
| 2 | CONN_01X03 Conn_01x03 | JST_PH_B3B-PH-K_1x03_P2.00mm_Vertical | IN1, OUT1 |
TridentSkirtLights design files
The KiCad project lives in the Gi7mo/TridentSkirtLights repository on GitHub; these links point at the commit this page was built from.
TridentSkirtLights: common questions
How big is the TridentSkirtLights PCB?
The TridentSkirtLights measures 22.6 × 23.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the TridentSkirtLights?
14 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the TridentSkirtLights design files?
From the Gi7mo/TridentSkirtLights repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the TridentSkirtLights design in my own project?
Yes, under the terms of its GPL-3.0 license, which Gi7mo chose for the repository.
