About the ECP5 BGA381 FT2232HQ FIFO EXT PCB
ECP5 BGA381 FT2232HQ FIFO EXT is an open source FPGA PCB design by gildobjanschi, published on GitHub under the MIT license. It is a 4-layer board measuring 64.4 × 54.6 mm, with 74 components from 22 distinct parts.
Its main chip is the DSLVDS1047PWR, from the FPGA family. Other key parts include the SN74HC04PWR. By type, the board carries 29 resistors, 25 diodes, 9 test points, 4 capacitors, 3 connectors and 2 ICs.
It belongs with the audio designs in this gallery.
From the project

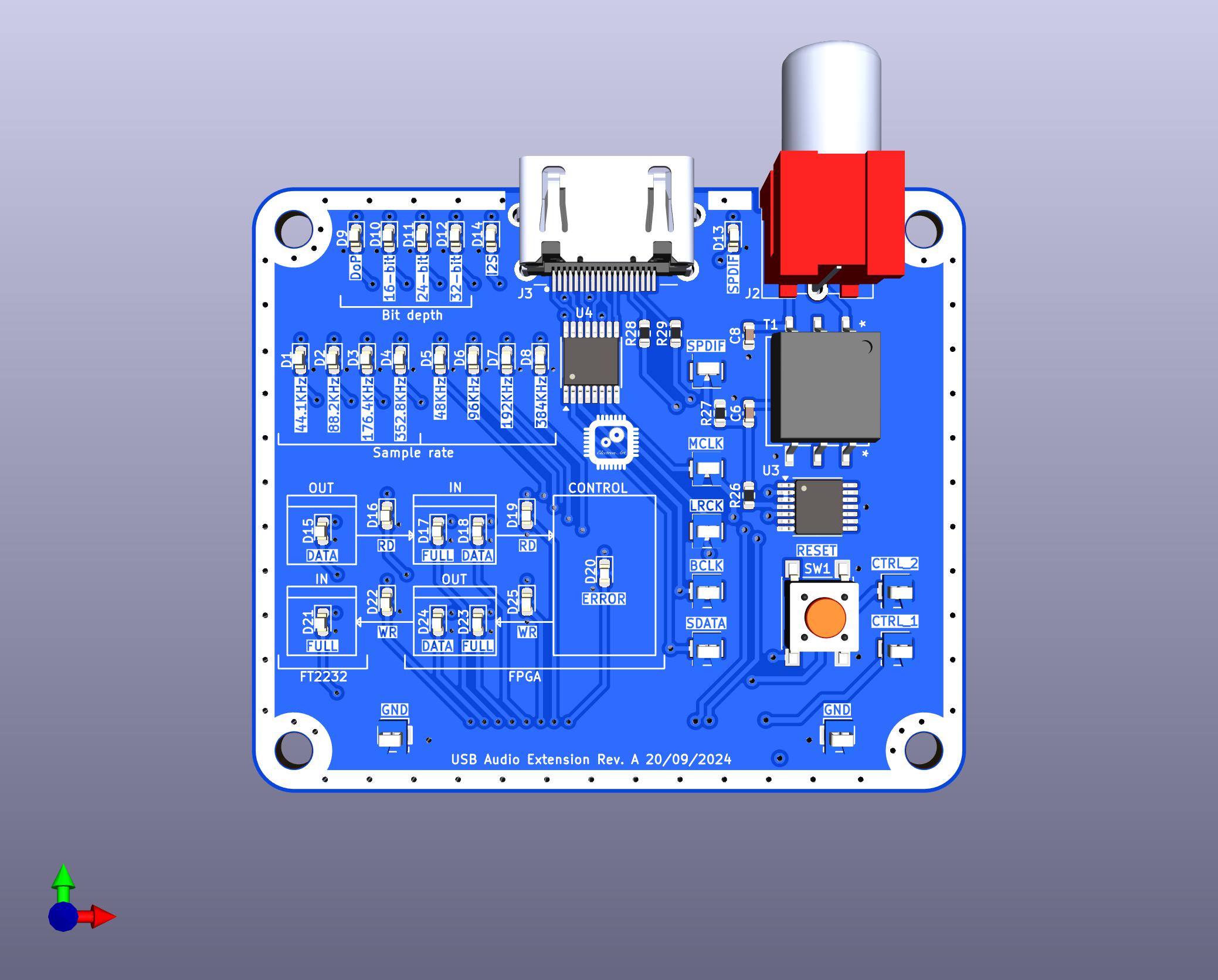

Extension board for the ECP5_BGA381_FT2232HQ_FIFO board
In the Manage Symbol Libraries click the Project Specific Libraries tab and add: Name: ECP5BGA381FT2232HQFIFOEXT and Library Path: ${ECP5BGA381FT2232HQFIFOEXT}/symbols/Symbols.kicad_sym
In the Manage Footprint Libraries click the Project Specific Libraries tab and add: Name: ECP5BGA381FT2232HQFIFOEXT and Library Path: ${ECP5BGA381FT2232HQFIFOEXT}/footprints/Footprints.pretty
Main components on the ECP5 BGA381 FT2232HQ FIFO EXT
ECP5 BGA381 FT2232HQ FIFO EXT bill of materials (BOM)
74 components, 22 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SN74HC04PWR 74HC04 Texas Instruments | TSSOP-14_4.4x5mm_P0.65mm | U1 |
| 1 | DSLVDS1047PWR DSLVDS1047 Texas Instruments | TSSOP-16-1EP_4.4x5mm_P0.65mm | U2 |
| 1 | FLE-126-01-G-DV Samtec Inc. | SAMTEC_FLE-126-01-G-DV | J1 |
| 1 | RCJ-044 CUI Devices | CUI_RCJ-042 | J2 |
| 1 | 10029449-001RLF HDMI A Amphenol ICC (FCI) | AMPHENOL_10029449-001RLF | J3 |
| 1 | PTS645SK43SMTR92 LFS C&K | SW_SPST_PTS645 | SW1 |
| 1 | DA101JC Murata Power Solutions Inc. | DA101J_MUR | T1 |
| 2 | 5197TR Keystone Electronics | KEYSTONE_5197TR | TP1, TP2 |
| 4 | 5190TR Keystone Electronics | KEYSTONE_5197TR | TP3, TP4, TP5, TP6 |
| 2 | 5191TR Keystone Electronics | KEYSTONE_5197TR | TP7, TP8 |
| 1 | 5194TR Keystone Electronics | KEYSTONE_5197TR | TP9 |
| 14 | APT1608LVBC/D BLUE Kingbright | LED_0603_1608Metric | D1, D2, D3, D4, D5, D6, D7, D8 +6 |
| 7 | APT1608LZGCK GREEN Kingbright | LED_0603_1608Metric | D13, D14, D15, D16, D18, D22, D24 |
| 3 | APT1608LSYCK/J3-PRV YELLOW Kingbright | LED_0603_1608Metric | D17, D21, D23 |
| 1 | APT1608LSECK/J3-PRV RED Kingbright | LED_0603_1608Metric | D20 |
| 3 | CL10B104KB8NNNC 0.1µF Samsung Electro-Mechanics | C_0603_1608Metric | C1, C2, C3 |
| 1 | CC0603KRX7R9BB183 18nF YAGEO | C_0603_1608Metric | C4 |
| 21 | ERJ-3EKF3300V 330 Panasonic Electronic Components | R_0603_1608Metric | R1, R2, R3, R4, R5, R6, R7, R8 +13 |
| 4 | ERJ-3EKF7500V 750 Panasonic Electronic Components | R_0603_1608Metric | R17, R20, R21, R23 |
| 1 | ERJ-3EKF1500V 150 Panasonic Electronic Components | R_0603_1608Metric | R26 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ERJ-3EKF75R0V 75 Panasonic Electronic Components | R_0603_1608Metric | R27 |
| 2 | ERJ-3EKF1000V 100 Panasonic Electronic Components | R_0603_1608Metric | R28, R29 |
ECP5 BGA381 FT2232HQ FIFO EXT design files
The KiCad project lives in the gildobjanschi/ECP5_BGA381_FT2232HQ_FIFO_EXT repository on GitHub; these links point at the commit this page was built from.
- Layoutkicad/ECP5.kicad_pcb
- Schematickicad/ECP5.kicad_sch
ECP5 BGA381 FT2232HQ FIFO EXT: common questions
What microcontroller does the ECP5 BGA381 FT2232HQ FIFO EXT use?
The ECP5 BGA381 FT2232HQ FIFO EXT is built around the DSLVDS1047PWR, from the FPGA family.
How big is the ECP5 BGA381 FT2232HQ FIFO EXT PCB?
The ECP5 BGA381 FT2232HQ FIFO EXT measures 64.4 × 54.6 mm, has 4 copper layers and is 1.58 mm thick.
How many components are on the ECP5 BGA381 FT2232HQ FIFO EXT?
74 components, from 22 distinct parts. The full bill of materials is listed on this page.
Where can I download the ECP5 BGA381 FT2232HQ FIFO EXT design files?
From the gildobjanschi/ECP5_BGA381_FT2232HQ_FIFO_EXT repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the ECP5 BGA381 FT2232HQ FIFO EXT design in my own project?
Yes, under the terms of its MIT license, which gildobjanschi chose for the repository.
Can I test firmware for the ECP5 BGA381 FT2232HQ FIFO EXT without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
