RTB D24
git4dcc·RTB_D24
About the RTB D24 PCB
RTB D24 is an open source AVR/Arduino PCB design by git4dcc, published on GitHub under the Apache-2.0 license. It is a 6-layer board measuring 17 × 10.9 mm, with 52 components from 29 distinct parts.
Its main chip is the AVR-64DA32, from the AVR/Arduino family. Other key parts include the DRV8231ADSGR and NCP730BMT500TBG. By type, the board carries 25 resistors, 9 connectors, 6 transistors, 6 capacitors, 3 ICs and 3 diodes.
From the project
DCC / Railcom decoder (NEM651, single sided), WS28xx

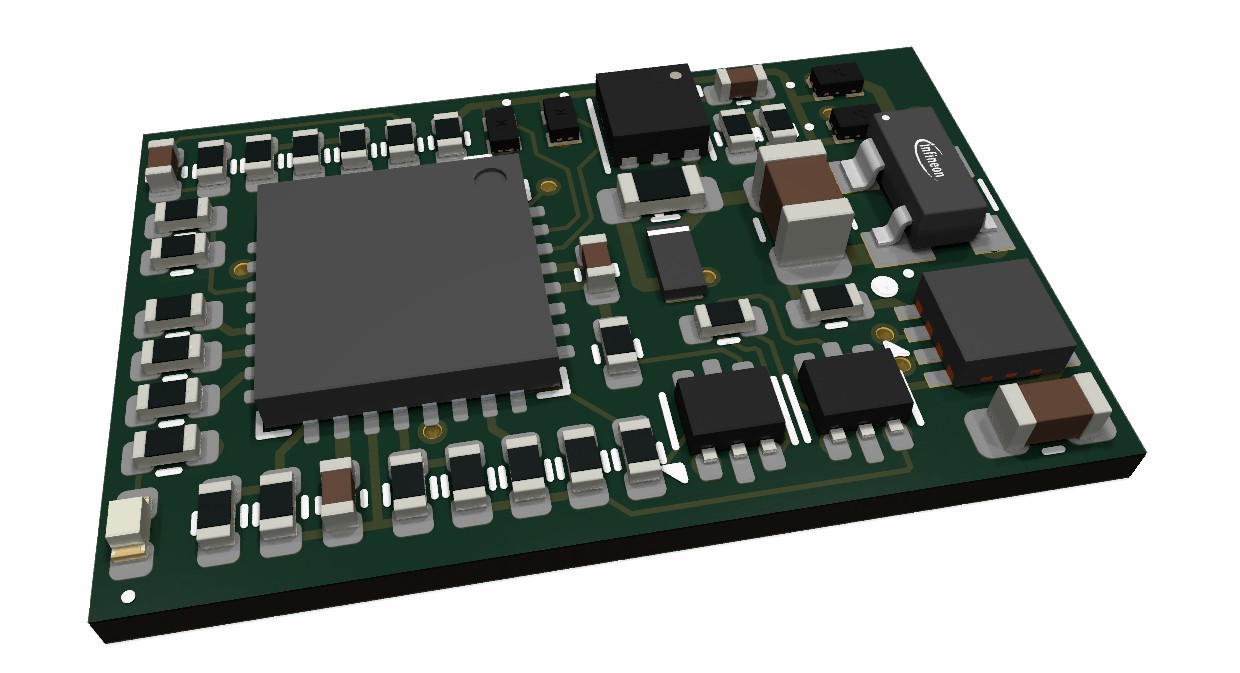

My Homebrew D24 is a single-sided DIY mobile decoder featuring a NEM-651 connector. While it shares the exact same dimensions as the D16, it offers additional AUX channels and supports WS28xx LED connections. It is fully designed for integration into the RTB digital control ecosystem.
- RTBD16 - NEM651 - RTBD20 - NEM651 - RTBD21 - Next18 - RTBD22 - Plux16 - RTB_D23 - NEM652

Main components on the RTB D24
RTB D24 bill of materials (BOM)
52 components, 29 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | DRV8231ADSGR | SON50P200X200X80-9N | IC1 |
| 1 | NCP730BMT500TBG | WSON-6-1EP_2x2mm_P0.65mm_EP1x1.6mm_ThermalVias | IC2 |
| 1 | AVR-64DA32 | VQFN-32-1EP_5x5mm_P0.5mm_EP3.1x3.1mm | U1 |
| 1 | BC847BDW1 | SOT-666 | Q1 |
| 1 | PMZB200UNEYL | PMZB200UNEYL | Q2 |
| 3 | PMZB200UNEYL | PMZB200UNEYL | Q3, Q5, Q6 |
| 1 | BC857BDW1 | SOT-666 | Q4 |
| 5 | Conn_01x01 | Solder_Pad_1.0x1.0mm | J1, J3, J4, J5, J6 |
| 1 | NEM651 | PinHeader_1x08_P1.27mm_Horizontal | J2 |
| 1 | WS28xx data | Solder_Pad_1.0x1.0mm | J7 |
| 1 | WS28xx GND | Solder_Pad_1.0x1.0mm | J8 |
| 1 | WS28xx power | Solder_Pad_1.0x1.0mm | J9 |
| 1 | LED pink | LED_0402_1005Metric | D1 |
| 1 | NSR20F40NXT5G | NSR20F40NXT5G | D2 |
| 1 | BAS3007ARPPE6327HTSA1 | BF998215 | D3 |
| 3 | 10u/6.3V | C_0402_1005Metric | C1, C3, C13 |
| 1 | 1u/35V | C_0603_1608Metric | C4 |
| 1 | 1u | C_0402_1005Metric | C6 |
| 1 | 22u/25V | C_0805_2012Metric | C7 |
| 4 | 4.7k | R_0402_1005Metric | R1, R4, R5, R6 |
Show 9 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 3.3k | R_0402_1005Metric | R2 |
| 1 | 22 | R_0402_1005Metric | R3 |
| 4 | 33k | R_0402_1005Metric | R7, R8, R10, R12 |
| 2 | 2.2 | R_0402_1005Metric | R9, R22 |
| 6 | 10k | R_0402_1005Metric | R11, R13, R15, R18, R19, R20 |
| 1 | 100 | R_0603_1608Metric | R14 |
| 3 | 220k | R_0402_1005Metric | R17, R34, R35 |
| 1 | 1k | R_0402_1005Metric | R21 |
| 2 | 9.1k | R_0402_1005Metric | R36, R37 |
RTB D24 design files
The KiCad project lives in the git4dcc/RTB_D24 repository on GitHub; these links point at the commit this page was built from.
- LayoutD24.kicad_pcb
- SchematicD24.kicad_sch
RTB D24: common questions
What microcontroller does the RTB D24 use?
The RTB D24 is built around the AVR-64DA32, from the AVR/Arduino family.
How big is the RTB D24 PCB?
The RTB D24 measures 17 × 10.9 mm, has 6 copper layers and is 0.8 mm thick.
How many components are on the RTB D24?
52 components, from 29 distinct parts. The full bill of materials is listed on this page.
Where can I download the RTB D24 design files?
From the git4dcc/RTB_D24 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the RTB D24 design in my own project?
Yes, under the terms of its Apache-2.0 license, which git4dcc chose for the repository.
Can I test firmware for the RTB D24 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
