About the Canned-ERCF-board
Canned-ERCF-board is an open source PCB design by gixxerfast, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 90.8 × 35.6 mm, with 30 components from 17 distinct parts.
By type, the board carries 17 resistors, 8 capacitors and 5 diodes.
It belongs with the robotics & motion designs in this gallery.
From the project

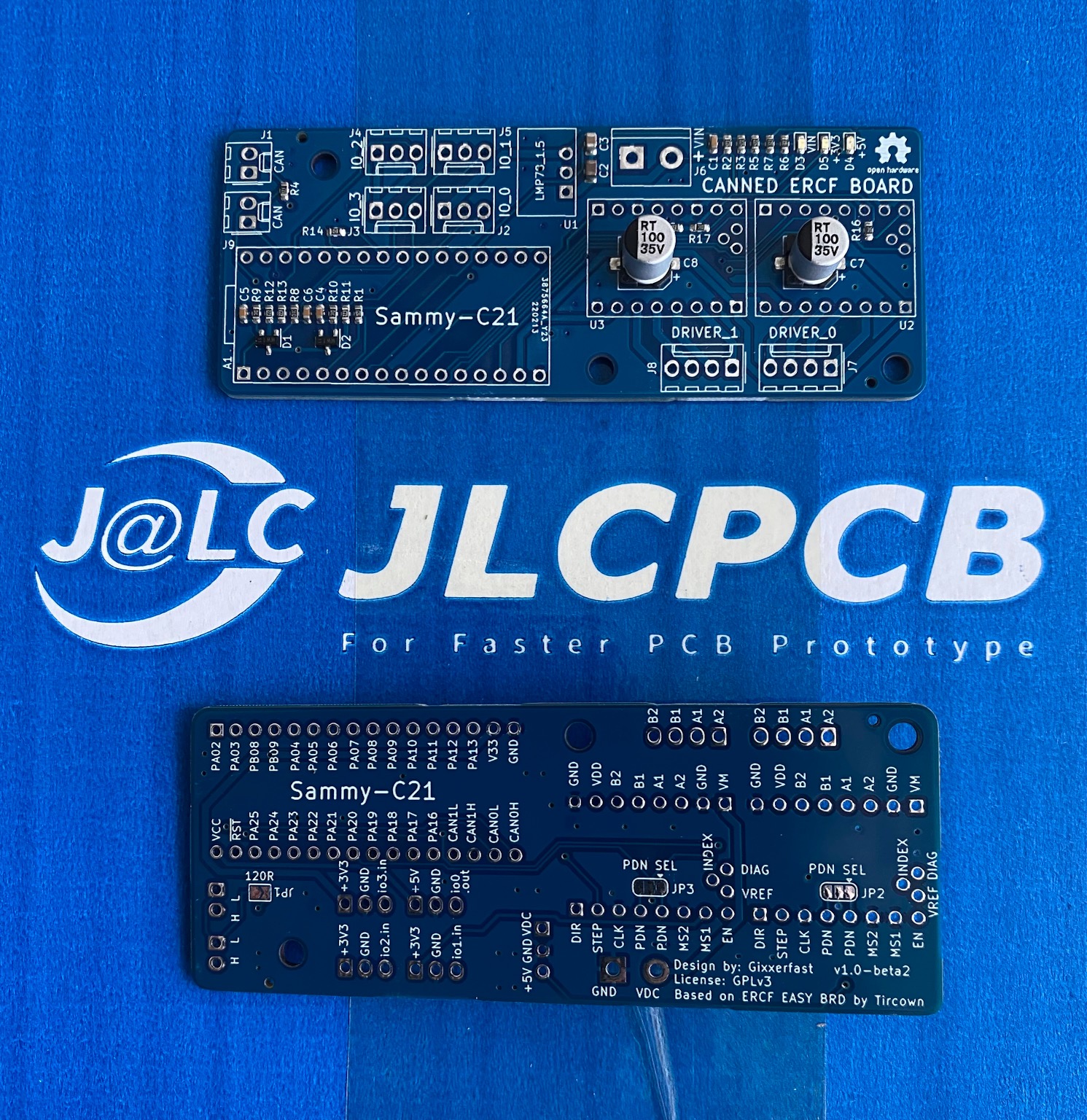

Enraged Rabbit Carrot Feeder CAN expansion board for Duet3
The Canned ERCF board is a general purpose Duet 3 CAN extansion board but specifically made to support the ERCF multifilament feeder system based on the ERCF Easy Brd by Tircown.
Check out the Duet RRF ERCF macros by pfn. With these macros you should be able to use a RRF equipped printer and run multi filament prints as with the original ERCF macros as long as you have enough ports and motors available.
Canned-ERCF-board bill of materials (BOM)
30 components, 17 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | BAT54C | SOT-23 | D1, D2 |
| 1 | Blue | LED_0603_1608Metric | D3 |
| 1 | Yellow | LED_0603_1608Metric | D4 |
| 1 | Green | LED_0603_1608Metric | D5 |
| 1 | 0u01 | C_0603_1608Metric | C1 |
| 1 | 10uF | C_0805_2012Metric | C2 |
| 1 | 22uF | C_0805_2012Metric | C3 |
| 3 | 2n2 | C_0603_1608Metric | C4, C5, C6 |
| 2 | 100uF | CP_Elec_6.3x7.7 | C7, C8 |
| 1 | 470R | R_0603_1608Metric | R1 |
| 1 | 47K | R_0603_1608Metric | R2 |
| 3 | 4K7 | R_0603_1608Metric | R3, R5, R15 |
| 2 | 120R | R_0603_1608Metric | R4, R7 |
| 1 | 390R | R_0603_1608Metric | R6 |
| 5 | 10K | R_0603_1608Metric | R8, R9, R10, R16, R17 |
| 3 | 27K | R_0603_1608Metric | R11, R12, R13 |
| 1 | 1k | R_0603_1608Metric | R14 |
Canned-ERCF-board design files
The KiCad project lives in the gixxerfast/Canned-ERCF-board repository on GitHub; these links point at the commit this page was built from.
Canned-ERCF-board: common questions
How big is the Canned-ERCF-board?
The Canned-ERCF-board measures 90.8 × 35.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Canned-ERCF-board?
30 components, from 17 distinct parts. The full bill of materials is listed on this page.
Where can I download the Canned-ERCF-board design files?
From the gixxerfast/Canned-ERCF-board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Canned-ERCF-board design in my own project?
Yes, under the terms of its GPL-3.0 license, which gixxerfast chose for the repository.
