Relay module 5v optocoupler smt

gkeiel·pcb_design_kicad·relay_module_5v_optocoupler_smt/relay_module_5v_optocoupler_smt.kicad_pcb

Relay module 5v optocoupler smt layout, top view — open source board by gkeiel

About the Relay module 5v optocoupler smt

Relay module 5v optocoupler smt is an open source PCB design by gkeiel, published on GitHub under the MIT license. It is a 2-layer board measuring 27.2 × 59.1 mm, with 11 components from 8 distinct parts.

Other key parts include the PC817. By type, the board carries 4 resistors, 2 connectors, 2 diodes, 1 IC, 1 transistor and 1 relay.

From the project

Printed circuit boards (PCBs) designs for some electronic circuits

PCB design of a single-channel relay module with optocoupler:

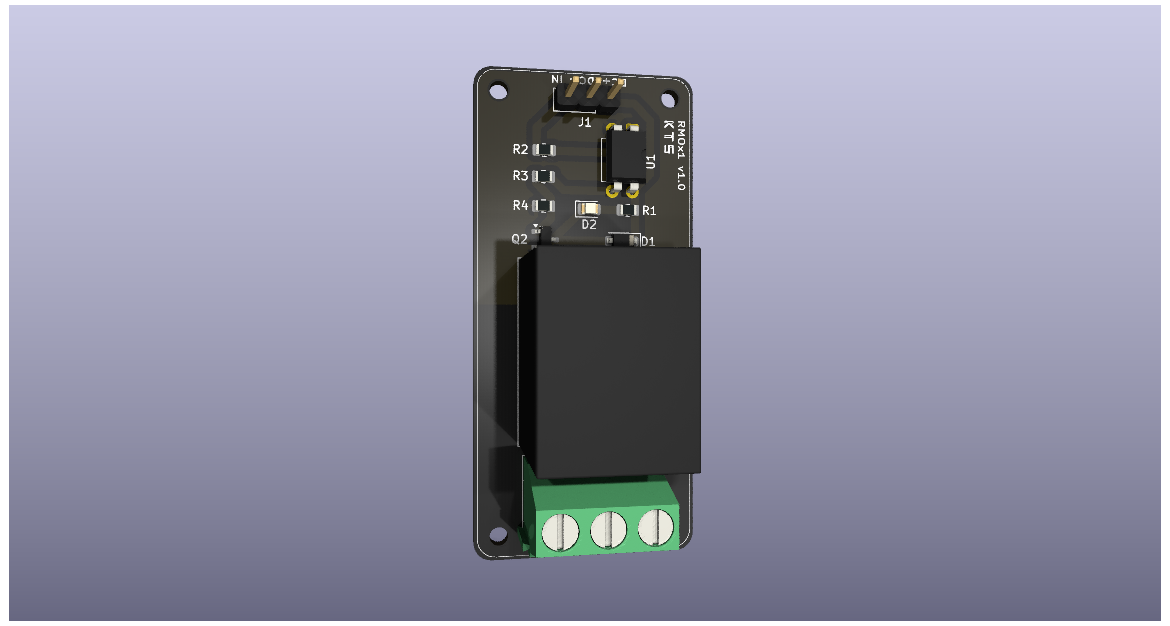

Relay module 5v optocoupler smt, from the project README — From the project README

Main components on the Relay module 5v optocoupler smt

Relay module 5v optocoupler smt bill of materials (BOM)

11 components, 8 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	PC817	DIP-4_W7.62mm	U1
1	BC817	SOT-23	Q2
1	Conn_01x02_Pin	PinHeader_1x03_P2.54mm_Vertical	J1
1	Conn_01x03_Pin	TerminalBlock_Phoenix_MKDS-1,5-3-5.08_1x03_P5.08mm_Horizontal	J2
1	Relay_SPDT	Relay_SPDT_Omron-G5LE-1	K1
1	1N4007	D_SOD-123	D1
1	LED RED 3mm	LED_0805_2012Metric	D2
4	R	R_0805_2012Metric	R1, R2, R3, R4

Relay module 5v optocoupler smt design files

The KiCad project lives in the gkeiel/pcb_design_kicad repository on GitHub; these links point at the commit this page was built from.

Relay module 5v optocoupler smt: common questions

How big is the Relay module 5v optocoupler smt?

The Relay module 5v optocoupler smt measures 27.2 × 59.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Relay module 5v optocoupler smt?

11 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Relay module 5v optocoupler smt design files?

From the gkeiel/pcb_design_kicad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Relay module 5v optocoupler smt design in my own project?

Yes, under the terms of its MIT license, which gkeiel chose for the repository.
