Gl ti xds isolated hardware PCB layout, top view — open source TI MSP430/CC board by glassboard-dev
Simulate this board

About the Gl ti xds isolated hardware PCB

Gl ti xds isolated hardware is an open source TI MSP430/CC PCB design by glassboard-dev, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 82 × 33 mm, with 112 components from 27 distinct parts.

Its main chip is the MSP432E401Y, from the TI MSP430/CC family. Other key parts include the AP7361EA-33E-13, ISOW7741, ISOW7742 and TPD4E004DRYR. By type, the board carries 49 capacitors, 35 resistors, 10 inductors, 6 ICs, 6 diodes and 4 connectors.

It belongs with the usb & debug tools designs in this gallery.

From the project

Isolated TI & CMSIS-DAP Compatible Debugger/Programmer

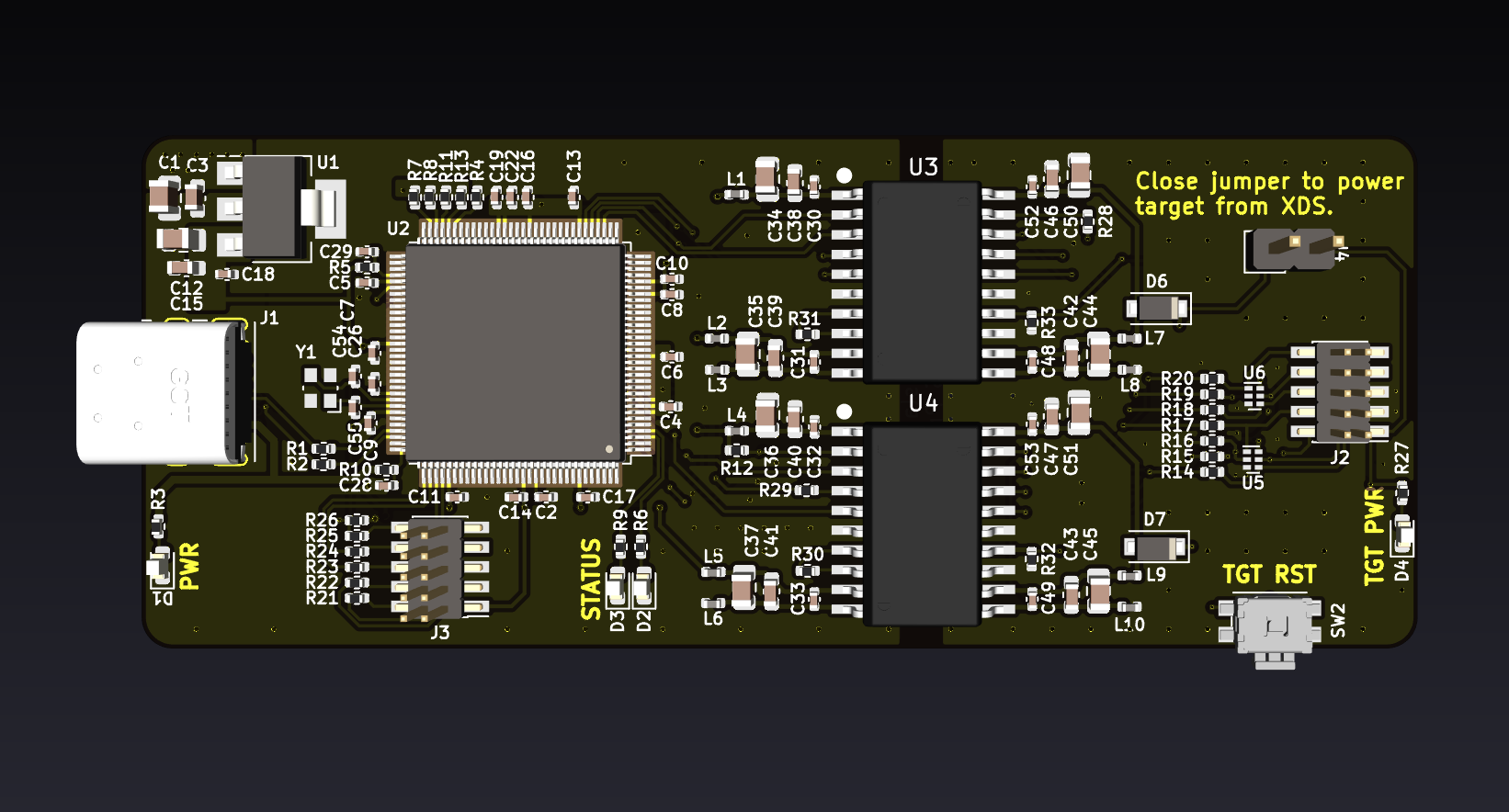

Gl ti xds isolated hardware, from the project README
From the project README

Main components on the Gl ti xds isolated hardware

AP7361EA-33E-13MSP432E401YISOW7741ISOW7742TPD4E004DRYR

Gl ti xds isolated hardware bill of materials (BOM)

112 components, 27 distinct parts.

QtyPartRefs
1
AP7361EA-33E-13
U1
1
MSP432E401Y
U2
1
ISOW7741
U3
1
ISOW7742
U4
2
TPD4E004DRYR
U5, U6
1
ABM8G-16.000MHZ-4Y-T3
Y1
1
USB4085
J1
1
TGT_JTAG
J2
1
IF_JTAG
J3
1
Conn_01x02_Male
J4
1
EVQPUD
SW2
4
LED
D1, D2, D3, D4
2
CRS01(TE85L,Q,M)
D6, D7
10
BLM15EX331SN1D
L1, L2, L3, L4, L5, L6, L7, L8 +2
10
10u
C1, C12, C34, C35, C36, C37, C44, C45 +2
27
0.1u
C2, C4, C5, C6, C7, C8, C9, C10 +19
10
1u
C3, C15, C38, C39, C40, C41, C42, C43 +2
2
10p
C54, C55
2
22R
R1, R2
4
470R
R3, R6, R9, R27
Show 7 more
QtyPartRefs
1
4.87k
R4
1
51R
R5
9
10k
R7, R8, R11, R13, R26, R30, R31, R32 +1
13
100R
R10, R14, R15, R16, R17, R18, R19, R20 +5
1
100k
R12
2
1K
R28, R29
2
5.1k
R34, R35
