Audio module

hackclub·hackxpansion·hardware/tutorials/audio_module/audio_module/audio_module.kicad_pcb

Audio module layout, top view — open source board by hackclub
Simulate this board

About the Audio module

Audio module is an open source PCB design by hackclub, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 25.5 × 32 mm, with 23 components from 9 distinct parts.

Other key parts include the PCM5102A. By type, the board carries 12 capacitors, 8 resistors, 2 connectors and 1 IC.

It belongs with the audio and displays & leds designs in this gallery.

From the project

A modular game console based on RP2354

- Resistor based module identification at start up - 2" 240x320 ST7789 LCD panel - RP2354 MCU - Easily adaptable module standard - Rust firmware with embassy and slint-ui

I really like the idea of modules, and modular things, and making people work together, so I made this.

The console has two 4 layer PCBs designed in KiCAD, a main-board and a daughter-board, designed for JLC's basic process.

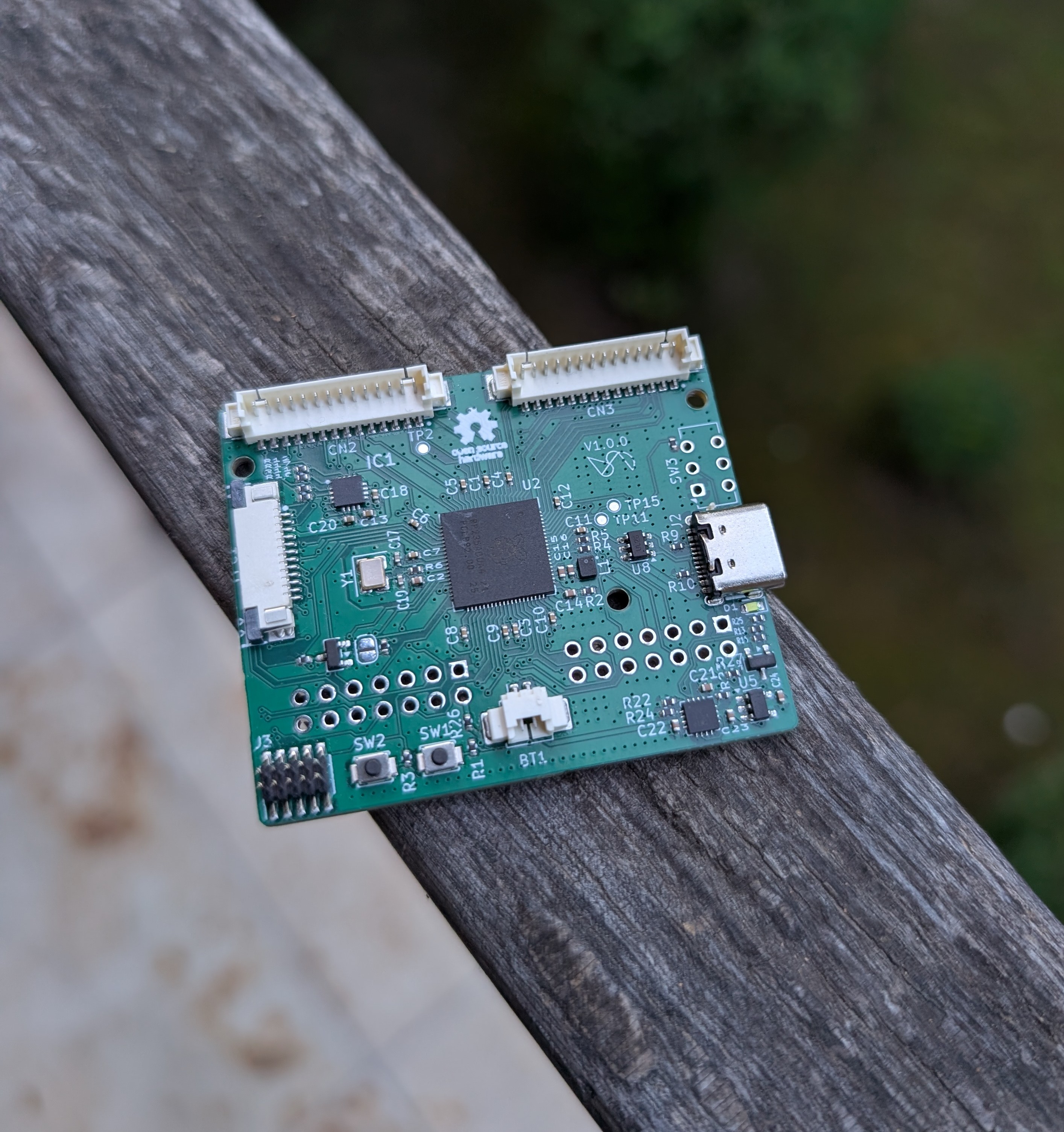

Audio module, from the project README
From the project README

Main components on the Audio module

PCM5102A

Audio module bill of materials (BOM)

23 components, 9 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
PCM5102A
U1
1
~
J1
1
AudioJack4_SwitchTR1
J3
4
100n
C2, C4, C6, C8
4
10u
C3, C5, C7, C9
4
2u2
C10, C11, C12, C13
2
R
R1, R2
2
470R
R3, R4
4
10k
R5, R6, R7, R8

Audio module design files

The KiCad project lives in the hackclub/hackxpansion repository on GitHub; these links point at the commit this page was built from.

Audio module: common questions

How big is the Audio module?

The Audio module measures 25.5 × 32 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Audio module?

23 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Audio module design files?

From the hackclub/hackxpansion repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Audio module design in my own project?

Yes, under the terms of its GPL-3.0 license, which hackclub chose for the repository.
