About the SD2IECplug PCB
SD2IECplug is an open source AVR/Arduino PCB design by hackup, published on GitHub. It is a 2-layer board measuring 50 × 49.4 mm, with 44 components from 26 distinct parts.
Its main chip is the ATMEGA644-20AU, from the AVR/Arduino family. Other key parts include the AMS1117-3.3. By type, the board carries 16 resistors, 8 connectors, 7 capacitors, 4 transistors, 3 diodes and 2 ICs.
It belongs with the retro computing designs in this gallery.
From the project

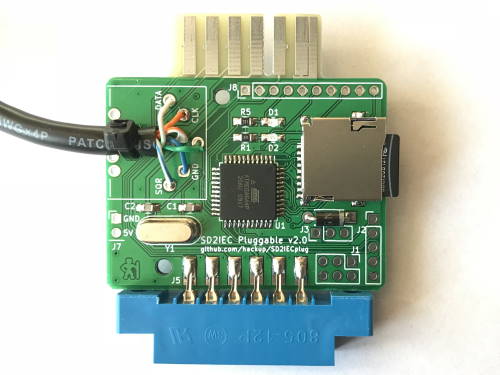

SD2IEC Pluggable
KiCAD project files for my take on a SD2IEC compatible board. The schematics are heavily based on the design by Shadowolf. The BOM export is included in the repository. There should probably be more documentation here, but while it is still missing you may find some additional information on my blog. This is all work in progress with absolutely no guarantees. USE AT YOUR OWN RISK!**

Main components on the SD2IECplug
SD2IECplug bill of materials (BOM)
44 components, 26 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ATMEGA644-20AU | TQFP-44_10x10mm_Pitch0.8mm | U1 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U2 |
| 4 | BSS138 | SOT-23_Handsoldering | Q1, Q2, Q3, Q4 |
| 1 | 8MHz | Crystal_HC49-4H_Vertical | Y1 |
| 1 | ISP | Pin_Header_Straight_2x03_Pitch2.54mm | J1 |
| 1 | X6 | Pin_Header_Straight_1x05_Pitch2.54mm | J2 |
| 1 | Aux | Pin_Header_Straight_1x03_Pitch2.54mm | J3 |
| 1 | IEC | DIN-6-Variable | J4 |
| 1 | C64-CassettePort | C64-Cassette-Port-Female | J5 |
| 1 | C64-CassettePort | C64-Cassette-Port-Male | J6 |
| 1 | Power | Pin_Header_Straight_1x02_Pitch2.54mm | J7 |
| 1 | X3 | Pin_Header_Straight_1x10_Pitch2.54mm | J8 |
| 2 | SW_Push | SW_SPST_FSMSM | SW1, SW2 |
| 1 | SD Connector | Conn_uSDcard | XS1 |
| 1 | red | LED_0805_HandSoldering | D1 |
| 1 | green | LED_0805_HandSoldering | D2 |
| 1 | 1N5817 | D_DO-41_SOD81_P7.62mm_Horizontal | D3 |
| 2 | 56p | C_0805_HandSoldering | C1, C2 |
| 3 | 10µ | CP_Tantalum_Case-S_EIA-3216-12_Hand | C3, C4, C5 |
| 2 | 100n | C_0805_HandSoldering | C6, C7 |
Show 6 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 330 | R_0805_HandSoldering | R1, R5 |
| 4 | 18 | R_0805_HandSoldering | R2, R6, R9, R12 |
| 4 | 10k | R_0805_HandSoldering | R3, R7, R10, R13 |
| 4 | 22k | R_0805_HandSoldering | R4, R8, R11, R14 |
| 1 | 2.2R | R_0805_HandSoldering | R15 |
| 1 | nB | R_0805_HandSoldering | R16 |
SD2IECplug design files
The KiCad project lives in the hackup/SD2IECplug repository on GitHub; these links point at the commit this page was built from.
- LayoutSD2IECplug.kicad_pcb
- SchematicSD2IECplug.kicad_sch
- BOMSD2IECplug-BOM.csv
SD2IECplug: common questions
What microcontroller does the SD2IECplug use?
The SD2IECplug is built around the ATMEGA644-20AU, from the AVR/Arduino family.
How big is the SD2IECplug PCB?
The SD2IECplug measures 50 × 49.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SD2IECplug?
44 components, from 26 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the SD2IECplug design files?
From the hackup/SD2IECplug repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the SD2IECplug design in my own project?
The repository has no license, so all rights stay with hackup. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the SD2IECplug without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
