Controllino can
About the Controllino can PCB
Controllino can is an open source PCB design by HarveyBates, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 19.2 × 34 mm, with 12 components from 11 distinct parts.
Other key parts include the MCP2515-xST and MCP2562-E-SN. By type, the board carries 3 resistors, 2 ICs, 2 connectors, 2 capacitors, 1 crystal and 1 jumper.

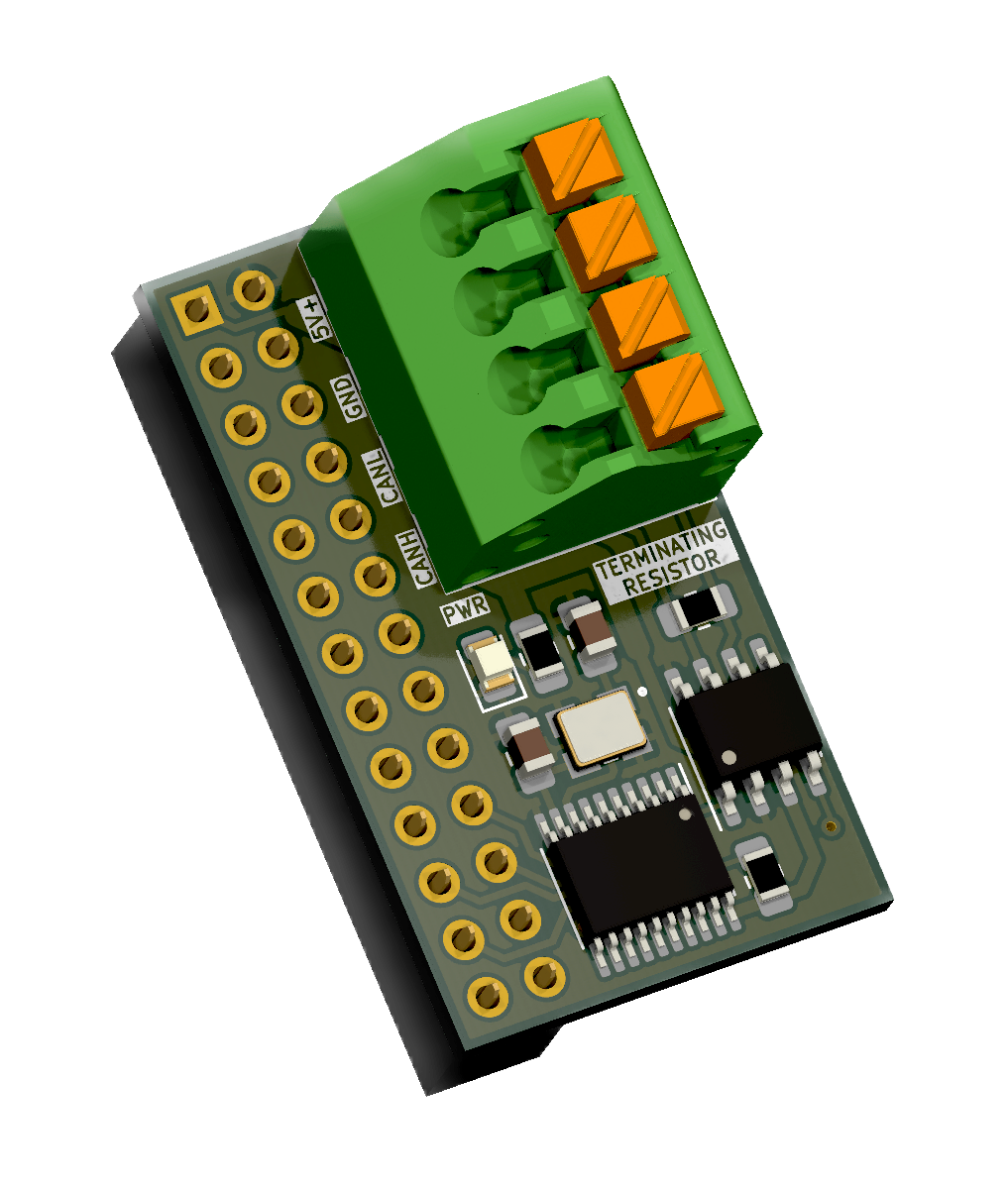

From the project
CAN interface for the Controllino-MEGA
Main components on the Controllino can
Controllino can bill of materials (BOM)
12 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MCP2515-xST | TSSOP-20_4.4x6.5mm_P0.65mm | U1 |
| 1 | MCP2562-E-SN | SOIC-8_3.9x4.9mm_P1.27mm | U2 |
| 1 | 8 MHz | ECS-80-12-33-JGN-TR | Y2 |
| 1 | Conn_02x13_Odd_Even | PinSocket_2x13_P2.54mm_Vertical | J2 |
| 1 | TBL002A-350-04GR-2OR | TBL002A-350-04GR-2OR | J5 |
| 1 | SolderJumper_2_Open | SolderJumper-2_P1.3mm_Open_Pad1.0x1.5mm | JP1 |
| 1 | LED | LED_0805_2012Metric | D3 |
| 2 | 22pF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C8, C9 |
| 1 | 120 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1 |
| 1 | 10K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R4 |
| 1 | 330 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R6 |
Controllino can design files
The KiCad project lives in the HarveyBates/controllino-can repository on GitHub; these links point at the commit this page was built from.
Controllino can: common questions
How big is the Controllino can PCB?
The Controllino can measures 19.2 × 34 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Controllino can?
12 components, from 11 distinct parts. The full bill of materials is listed on this page.
Where can I download the Controllino can design files?
From the HarveyBates/controllino-can repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Controllino can design in my own project?
Yes, under the terms of its GPL-3.0 license, which HarveyBates chose for the repository.
