KiCAD-CY8CPROTO-063-BLE PSoC 6

Haxous742·KiCAD-CY8CPROTO-063-BLE_PSoC_6·Project/Final.kicad_pcb

KiCAD-CY8CPROTO-063-BLE PSoC 6 PCB layout, top view — open source board by Haxous742

About the KiCAD-CY8CPROTO-063-BLE PSoC 6 PCB

KiCAD-CY8CPROTO-063-BLE PSoC 6 is an open source PCB design by Haxous742, published on GitHub under the MIT license. It is a 2-layer board measuring 102.2 × 26.7 mm, with 109 components from 54 distinct parts.

Other key parts include the AP7365-WG-7, SIP32408DNP-T1-GE4, CYBLE-416045-02 and SIP32510DT-T1-GE3. By type, the board carries 44 resistors, 37 capacitors, 8 ICs, 8 connectors, 4 LEDs and 3 switches.

It belongs with the iot & wireless designs in this gallery.

From the project

A KiCad project that has the schematic and PCB design for the CY8CPROTO-063-BLE-PSoC-6-BLE-Prototyping-Kit

The electronic design and development were done using KiCad, an open-source EDA software. The version used for this project is KiCad 9.0.0.

This project is licensed under the MIT License. See the LICENSE file for details.

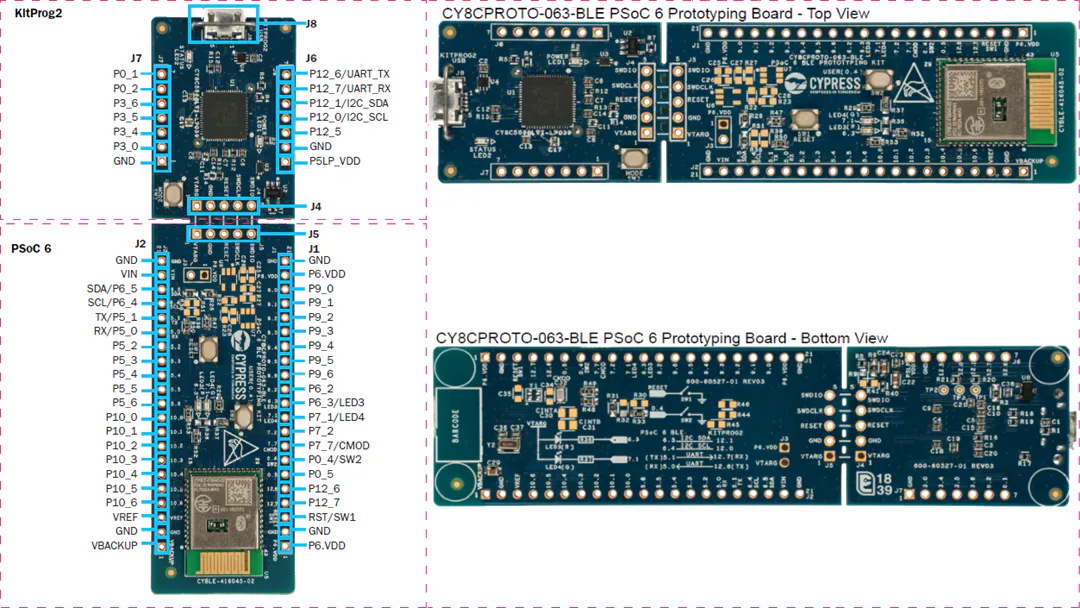

KiCAD-CY8CPROTO-063-BLE PSoC 6, from the project README
From the project README

Main components on the KiCAD-CY8CPROTO-063-BLE PSoC 6

AP7365-WG-7SIP32408DNP-T1-GE4CYBLE-416045-02SIP32510DT-T1-GE3

KiCAD-CY8CPROTO-063-BLE PSoC 6 bill of materials (BOM)

109 components, 54 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
~
U1
1
AP7365-WG-7
U2
1
SIP32408DNP-T1-GE4
U3
1
~
U4
1
CYBLE-416045-02
U5
1
AP7365-WG-7
U6
1
SIP32510DT-T1-GE3
U7
1
~
U8
1
24MHZ
24Mhz
Y1
1
32.768KHZ
32.768KHz
Y2
2
CONN_01X21
Conn_01x21
J1, J2
1
HDR2
J3
2
CONN_01X05
Conn_01x05
J4, J5
2
CONN_01X07
Conn_01x07
J6, J7
1
10118194-0001LF
J8
3
SKRPACE010
SW1, SW2, SW3
3
TestPoint
TP1, TP2, TP3
1
POWER LED
LED1
1
STATUS LED
LED2
1
RED LED
LED3
Show 34 more
QtyPartRefs
1
GREEN LED
LED4
1
10NF
10nF
C1
11
0.1UF
0.1uF
C2, C4, C6, C8, C10, C15, C17, C19 +3
11
1.0UF
1.0uF
C3, C5, C7, C9, C11, C12, C13, C14 +3
2
4.7UF
4.7uF
C22, C24
1
0.47UF
0.47uF
C25
2
0.1UF
0.1uF
C26, C28
1
4.7UF
4.7uF
C27
1
10UF
10uF
C29
2
0.47NF
0.47nF
C30, C31
1
2.2NF
2.2nF
C32
2
10PF
10pF
C34, C35
2
22PF
22pF
C36, C37
1
100K
R1
2
2.2K
R2, R17
3
0OHM
0ohm
R3, R9, R41
2
15K
R4, R15
2
30K
R5, R16
1
180K
R6
1
57.6K
R7
1
383K
R8
1
100K
R12
2
49.9K
R13, R14
2
22E
R18, R19
2
4.7K
R20, R21
1
180K
R22
1
57.6K
R23
14
0OHM
0ohm
R27, R28, R29, R31, R32, R44, R46, R47 +6
3
10K
R30, R33, R45
1
470OHM
470ohm
R36
1
330OHM
330ohm
R37
1
4.7K
4.7k
R38
1
4.7K
4.7k
R39
1
120K
R40

KiCAD-CY8CPROTO-063-BLE PSoC 6 design files

The KiCad project lives in the Haxous742/KiCAD-CY8CPROTO-063-BLE_PSoC_6 repository on GitHub; these links point at the commit this page was built from.

KiCAD-CY8CPROTO-063-BLE PSoC 6: common questions

How big is the KiCAD-CY8CPROTO-063-BLE PSoC 6 PCB?

The KiCAD-CY8CPROTO-063-BLE PSoC 6 measures 102.2 × 26.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the KiCAD-CY8CPROTO-063-BLE PSoC 6?

109 components, from 54 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the KiCAD-CY8CPROTO-063-BLE PSoC 6 design files?

From the Haxous742/KiCAD-CY8CPROTO-063-BLE_PSoC_6 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the KiCAD-CY8CPROTO-063-BLE PSoC 6 design in my own project?

Yes, under the terms of its MIT license, which Haxous742 chose for the repository.
