Mini keyboard
About the Mini keyboard PCB
Mini keyboard is an open source PCB design by hdlguy, published on GitHub under the MIT license. It is a 2-layer board measuring 158.8 × 120.7 mm, with 87 components from 5 distinct parts.
Other key parts include the MX1A-11NN, DEV-15583 and ABX00027. By type, the board carries 44 ICs, 42 diodes and 1 switch.
It belongs with the keyboards designs in this gallery.
From the project
Miscellaneous KiCad work
This is a repo to contain some simple attempts to use Kicad 6 to design printed circuit boards.

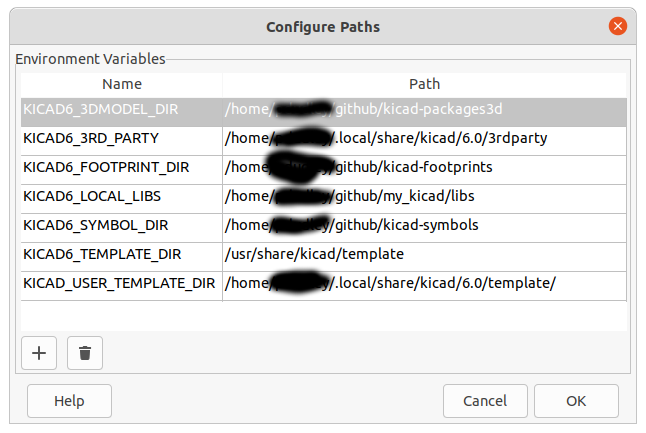

I like to make it so that design files are usable by just cloning them from GitHub but that is not completely possible with KiCad because libraries are external to the design folders and KiCad relies on user level pathname to access libraries.
The official KiCad libraries are cloned from these url:
Main components on the Mini keyboard
Mini keyboard bill of materials (BOM)
87 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 42 | MX1A-11NN | CHERRY_MX1A-11NN_SWITCH | U1, U2, U3, U4, U5, U6, U7, U8 +34 |
| 1 | DEV-15583 | MODULE_DEV-15583 | U100 |
| 1 | ABX00027 | MODULE_ABX00027 | U101 |
| 1 | PG151101S11 | SW_PG151101S11 | S1 |
| 42 | 1N4148W | D_SOD-123 | D1, D2, D3, D4, D5, D6, D7, D8 +34 |
Mini keyboard design files
The KiCad project lives in the hdlguy/kicad repository on GitHub; these links point at the commit this page was built from.
Mini keyboard: common questions
How big is the Mini keyboard PCB?
The Mini keyboard measures 158.8 × 120.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Mini keyboard?
87 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the Mini keyboard design files?
From the hdlguy/kicad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Mini keyboard design in my own project?
Yes, under the terms of its MIT license, which hdlguy chose for the repository.
