Rpi PCB layout, top view — open source board by hjalte33

About the Rpi PCB

Rpi is an open source PCB design by hjalte33, published on GitHub. It is a 2-layer board measuring 142.2 × 64.8 mm, with 5 components from 2 distinct parts.

By type, the board carries 4 capacitors and 1 connector.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

See The full pinout in the included pdf documentation

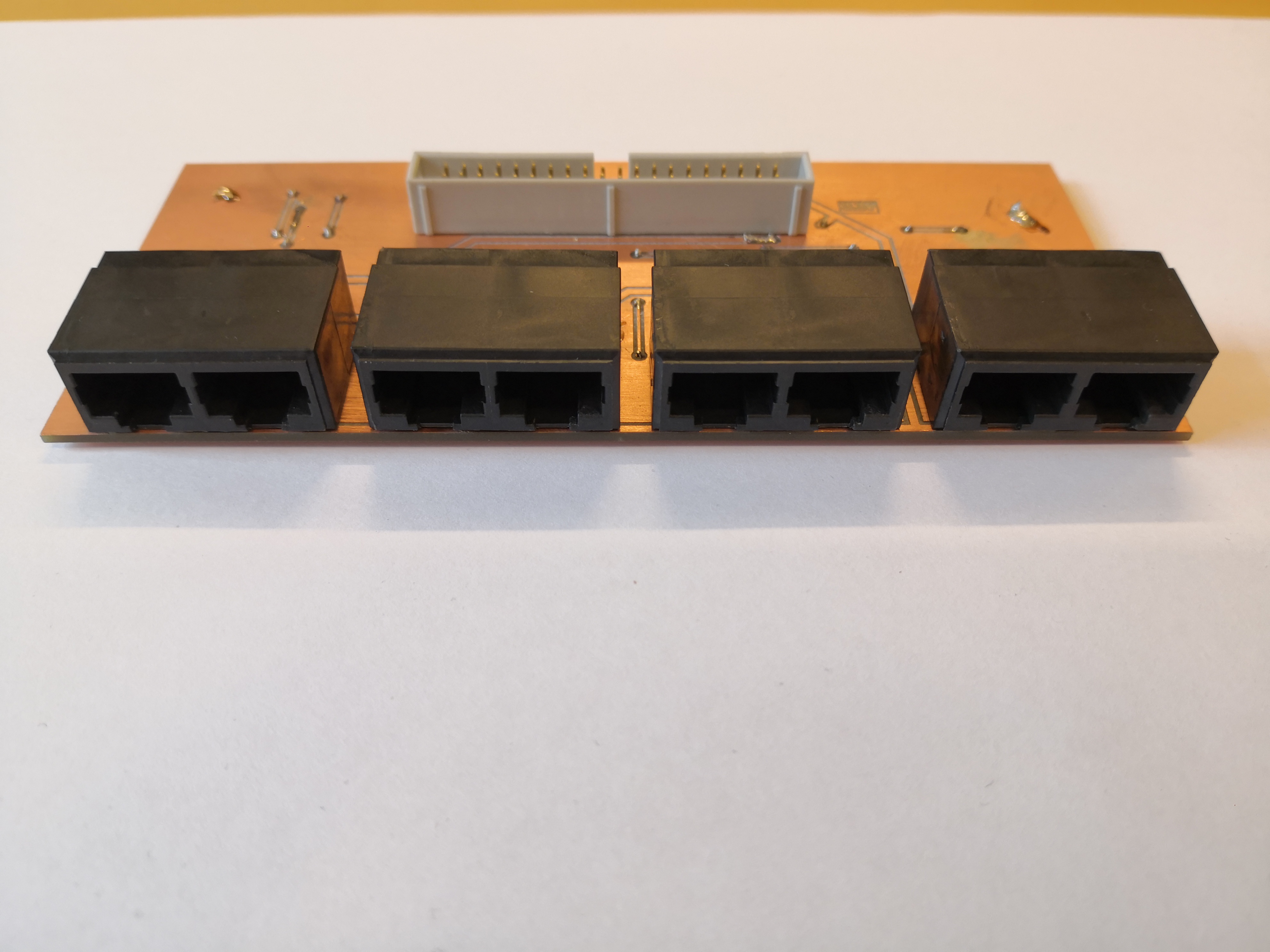

Rpi, from the project README
From the project README

Rpi bill of materials (BOM)

5 components, 2 distinct parts.

QtyPartRefs
1
Conn_01x40
j1
4
rj45_16p16c
c1_2, c3_4, c5_6, c7_8

Rpi design files

The KiCad project lives in the hjalte33/rpi-pcb repository on GitHub; these links point at the commit this page was built from.

Rpi: common questions

How big is the Rpi PCB?

The Rpi measures 142.2 × 64.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rpi?

5 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rpi design files?

From the hjalte33/rpi-pcb repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Rpi design in my own project?

The repository has no license, so all rights stay with hjalte33. Use it as a reference, and ask the author before reusing the design.
