C128 310381r7 sram adapter
hkzlab·C128_310381r7_sram_adapter
About the C128 310381r7 sram adapter PCB
C128 310381r7 sram adapter is an open source PCB design by hkzlab, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 99.1 × 34.8 mm, with 18 components from 15 distinct parts.
Other key parts include the 128K x 8 SRAM, 74HCT00 and 74HCT573. By type, the board carries 9 connectors, 5 capacitors and 4 ICs.
It belongs with the retro computing designs in this gallery.
From the project

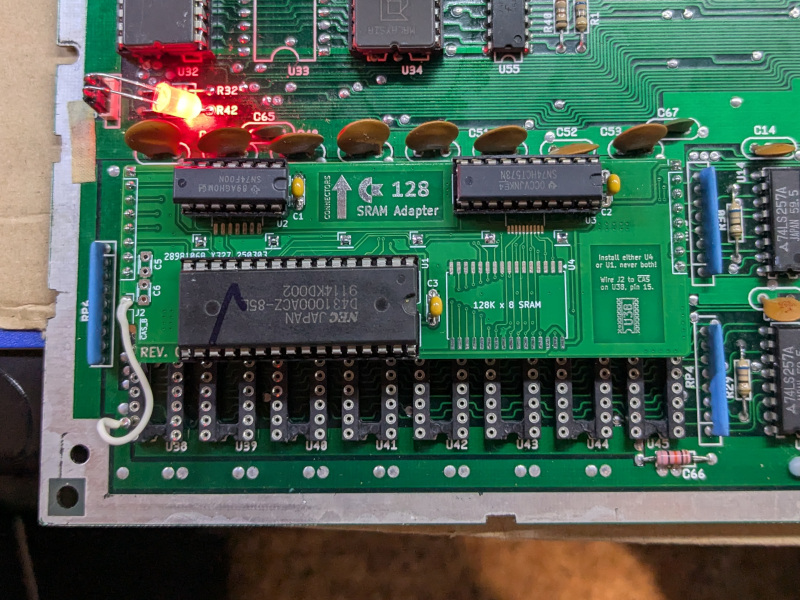

Static RAM replacement for the DRAMs on a C128 with a 310381R7 motherboard
Any use of this project is under your own responsibility. You will be responsible of checking the correct construction and functionality of your board. By using this project You will agree that I cannot be held responsible if it will destroy any of your devices, damage your computer, burn down your house or whatever.
WARNING: This device was only tested to fit on a motherboard model 310381R7!!!

Main components on the C128 310381r7 sram adapter
C128 310381r7 sram adapter bill of materials (BOM)
18 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 128K x 8 SRAM | DIP-32_W15.24mm | U1 |
| 1 | 74HCT00 | DIP-SO-14 | U2 |
| 1 | 74HCT573 | DIP-TSSOP-20 | U3 |
| 1 | 128K x 8 SRAM | SOP-32_11.305x20.495mm_P1.27mm | U4 |
| 1 | T_0_L_DRAM | PinHeader_1x08_P2.54mm_Vertical | J1 |
| 1 | ~{CAS_B} | PinHeader_1x01_P2.54mm_Horizontal | J2 |
| 1 | T_7_R_DRAM | PinHeader_1x08_P2.54mm_Vertical | J3 |
| 1 | T_1_L_DRAM | PinHeader_1x01_P2.54mm_Vertical | J5 |
| 1 | T_2_L_DRAM | PinHeader_1x01_P2.54mm_Vertical | J6 |
| 1 | T_3_L_DRAM | PinHeader_1x01_P2.54mm_Vertical | J7 |
| 1 | T_4_L_DRAM | PinHeader_1x01_P2.54mm_Vertical | J8 |
| 1 | T_5_L_DRAM | PinHeader_1x01_P2.54mm_Vertical | J9 |
| 1 | T_6_L_DRAM | PinHeader_1x01_P2.54mm_Vertical | J10 |
| 3 | 100nF | C_Disc_1206_P5.00mm | C1, C2, C3 |
| 2 | 82pF-820pF | C_Disc_1206_P2.50mm | C5, C6 |
C128 310381r7 sram adapter design files
The KiCad project lives in the hkzlab/C128_310381r7_sram_adapter repository on GitHub; these links point at the commit this page was built from.
C128 310381r7 sram adapter: common questions
How big is the C128 310381r7 sram adapter PCB?
The C128 310381r7 sram adapter measures 99.1 × 34.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the C128 310381r7 sram adapter?
18 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the C128 310381r7 sram adapter design files?
From the hkzlab/C128_310381r7_sram_adapter repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the C128 310381r7 sram adapter design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
