OrthusTrackpad
About the OrthusTrackpad PCB
OrthusTrackpad is an open source PCB design by Hob-dev, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 36.4 × 36.4 mm, with 12 components from 9 distinct parts.
Other key parts include the IQS7211E001QNR. By type, the board carries 7 capacitors, 3 resistors, 1 IC and 1 connector.
It belongs with the keyboards and displays & leds designs in this gallery.
From the project

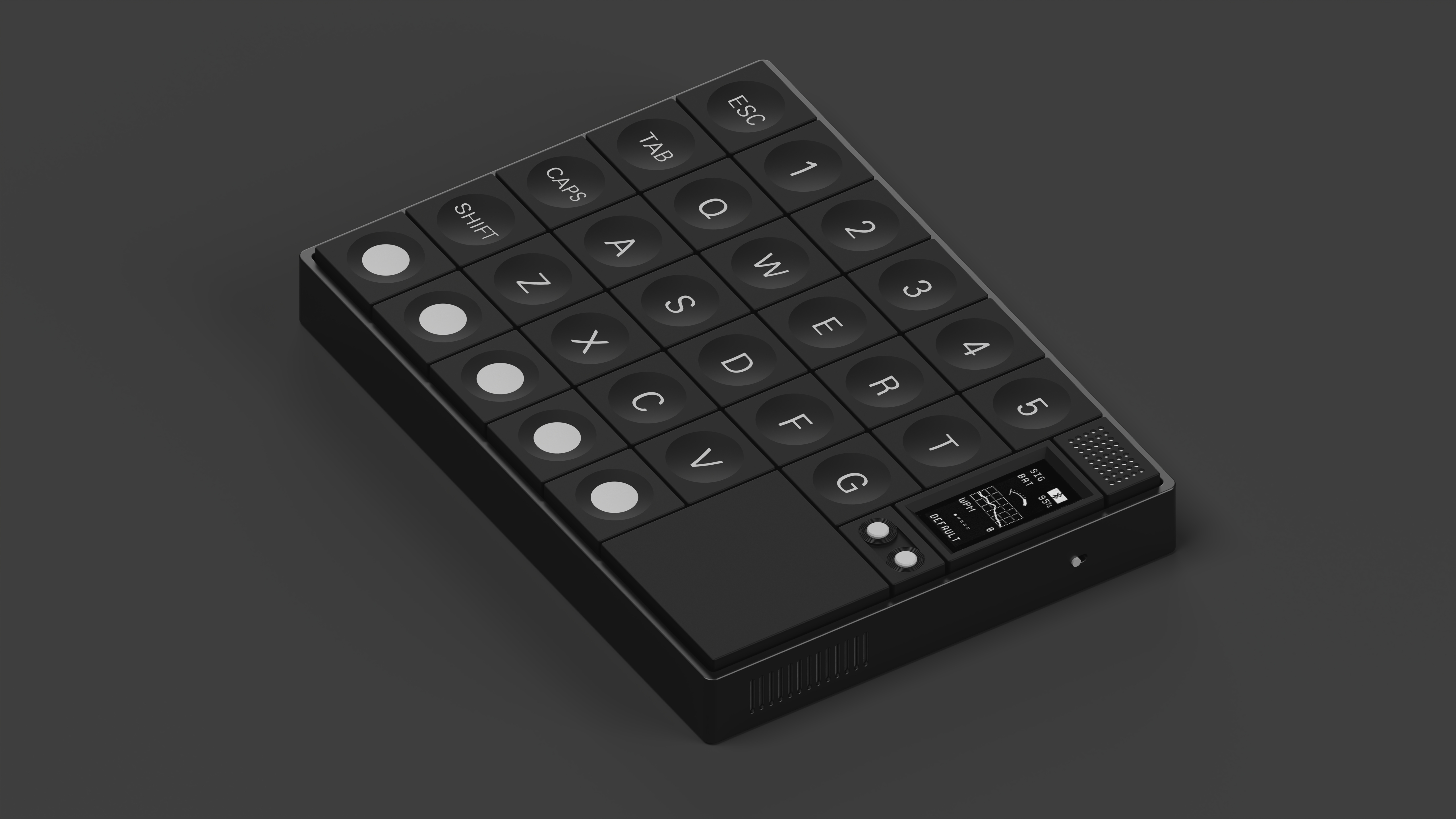

A highly portable split keyboard focused on feeling and sound.
An ergonomic split keyboard PCB with an integrated capacitive trackpad, Sharp Memory Display, and speaker. Designed around Kailh Choc low-profile switches and styled after Nothing.
Orthus is a 6×5 ortholinear split — two mirrored halves, one with the alpha cluster (QWERT/ASDFG/ZXCV) and a number row (1–5), the other with the right-hand alphas, symbols, and a numpad row. Each half carries:
Main components on the OrthusTrackpad
OrthusTrackpad bill of materials (BOM)
12 components, 9 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | IQS7211E001QNR | UQFN-20_L3.0-W3.0-P0.40-BL-EP1.7 | U1 |
| 1 | Conn_01x06 | FPC-SMD_6P-P0.50_XUNPU_FPC-05F-6PH15 | J1 |
| 1 | C84721 100pF | C_0402_1005Metric | C1 |
| 1 | C15849 2.2uF | C_0402_1005Metric | C2 |
| 1 | C15849 100pF | C_0402_1005Metric | C3 |
| 2 | 2.2uF | C_0402_1005Metric | C4, C6 |
| 1 | 100pF | C_0402_1005Metric | C5 |
| 1 | 100nF | C_0402_1005Metric | C7 |
| 3 | C25804 4.7k | R_0603_1608Metric | R1, R2, R3 |
OrthusTrackpad design files
The KiCad project lives in the Hob-dev/Orthus repository on GitHub; these links point at the commit this page was built from.
OrthusTrackpad: common questions
How big is the OrthusTrackpad PCB?
The OrthusTrackpad measures 36.4 × 36.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the OrthusTrackpad?
12 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the OrthusTrackpad design files?
From the Hob-dev/Orthus repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the OrthusTrackpad design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
