Max10 electron ula

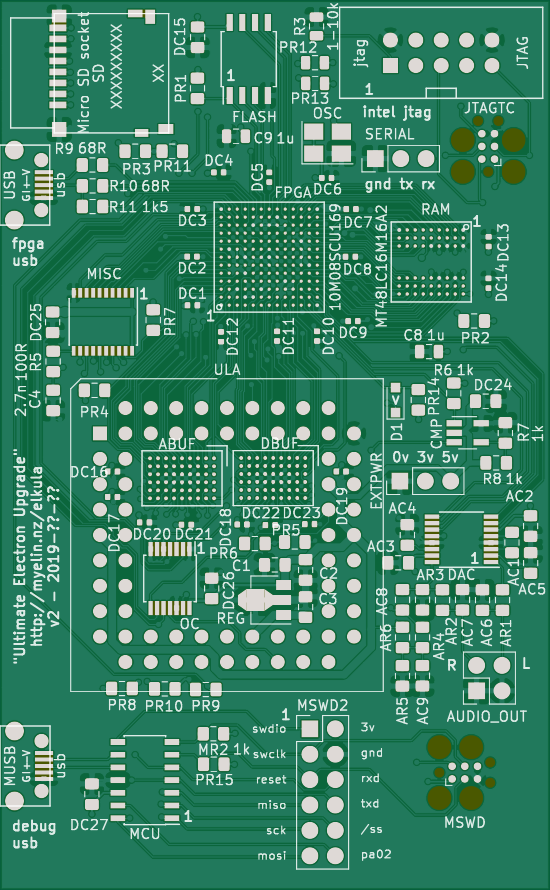

About the Max10 electron ula PCB
Max10 electron ula is an open source PCB design by hoglet67, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 55 × 89 mm, with 127 components from 24 distinct parts.
By type, the board carries 8 resistors, 6 capacitors and 1 diode.
From the project
This is a PCB for the Electron ULA replacement project (the "Ultimate Electron Upgrade").
This is a PCB for the Electron ULA replacement project (the "Ultimate Electron Upgrade").
Stardot thread: https://stardot.org.uk/forums/viewtopic.php?f=3&t=9223
Max10 electron ula bill of materials (BOM)
127 components, 24 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 1u | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | AC1, AC5 |
| 2 | 4.7u | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | AC2, AC3 |
| 1 | 2.2u | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | AC4 |
| 2 | 2.7n NF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | AC6, AC7 |
| 2 | 10u | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | AC8, AC9 |
| 2 | 560R NF | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | AR1, AR2 |
| 2 | 10k NF | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | AR3, PR11 |
| 15 | 10k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | AR4, AR5, AR6, PR1, PR2, PR3, PR4, PR5 +7 |
| 22 | 100n | C_0402_1005Metric | DC1, DC2, DC3, DC4, DC5, DC6, DC7, DC8 +14 |
| 5 | 100n | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | DC15, DC24, DC25, DC26, DC27 |
| 1 | 1k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | MR2 |
| 1 | swd | PinHeader_2x06_P2.54mm_Vertical | MSWD2 |
| 2 | 10k | R_0805_2012Metric | PR12, PR13 |
| 53 | — | via_single | staple_single1, staple_single2, staple_single3, staple_single4, staple_single5, staple_single6, staple_single7, staple_single8 +45 |
| 1 | BAT54 | D_SOD-323_HandSoldering | D1 |
| 1 | 10u | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C1 |
| 2 | 1u | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C2, C3 |
| 1 | 2.7n | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C4 |
| 2 | 1u | C_0805_2012Metric | C8, C9 |
| 1 | 1-10k | R_0805_2012Metric | R3 |
Show 4 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 100R | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R5 |
| 3 | 1k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R6, R7, R8 |
| 2 | 68R | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R9, R10 |
| 1 | 1k5 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R11 |
Max10 electron ula design files
The KiCad project lives in the hoglet67/ElectronFpga repository on GitHub; these links point at the commit this page was built from.
Max10 electron ula: common questions
How big is the Max10 electron ula PCB?
The Max10 electron ula measures 55 × 89 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Max10 electron ula?
127 components, from 24 distinct parts. The full bill of materials is listed on this page.
Where can I download the Max10 electron ula design files?
From the hoglet67/ElectronFpga repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Max10 electron ula design in my own project?
Yes, under the terms of its GPL-3.0 license, which hoglet67 chose for the repository.
