Cosmos docks PCB layout, top view — open source board by holeminhnhat3101

About the Cosmos docks PCB

Cosmos docks is an open source PCB design by holeminhnhat3101, published on GitHub under the MIT license. It is a 2-layer board measuring 76.6 × 81.5 mm, with 55 components from 11 distinct parts.

Other key parts include the SN74LV1T34DBV and MOUDLE-SEEEDUINO-XIAO. By type, the board carries 15 capacitors, 13 LEDs, 10 switches, 9 diodes, 5 resistors and 2 ICs.

It belongs with the displays & leds and keyboards designs in this gallery.

From the project

Cosmos-docks is a custom hackpad created by me. It includes a custom PCB, a fully 3D-printable case, one rotary encoder, an OLED display, and SK6812MINI-E addressable RGB LEDs. The design is built around the Seeed XIAO RP2040 and uses QMK firmware.

Cosmos Docks is a custom 9-key macropad designed from scratch for Hack Club Stardance. It includes a custom PCB, a fully 3D-printable case, one rotary encoder, an OLED display, and SK6812MINI-E addressable RGB LEDs.

The design is built around the Seeed XIAO RP2040 and uses QMK firmware.

- 9 MX-style mechanical switches - 1 EC11 rotary encoder - 0.91 inch 128×32 I2C OLED display - 13 SK6812MINI-E addressable RGB LEDs - Seeed XIAO RP2040 microcontroller - Custom 2-layer PCB designed in KiCad - Fully 3D-printable top and bottom case - QMK firmware with OLED, encoder, and RGB Matrix support -…

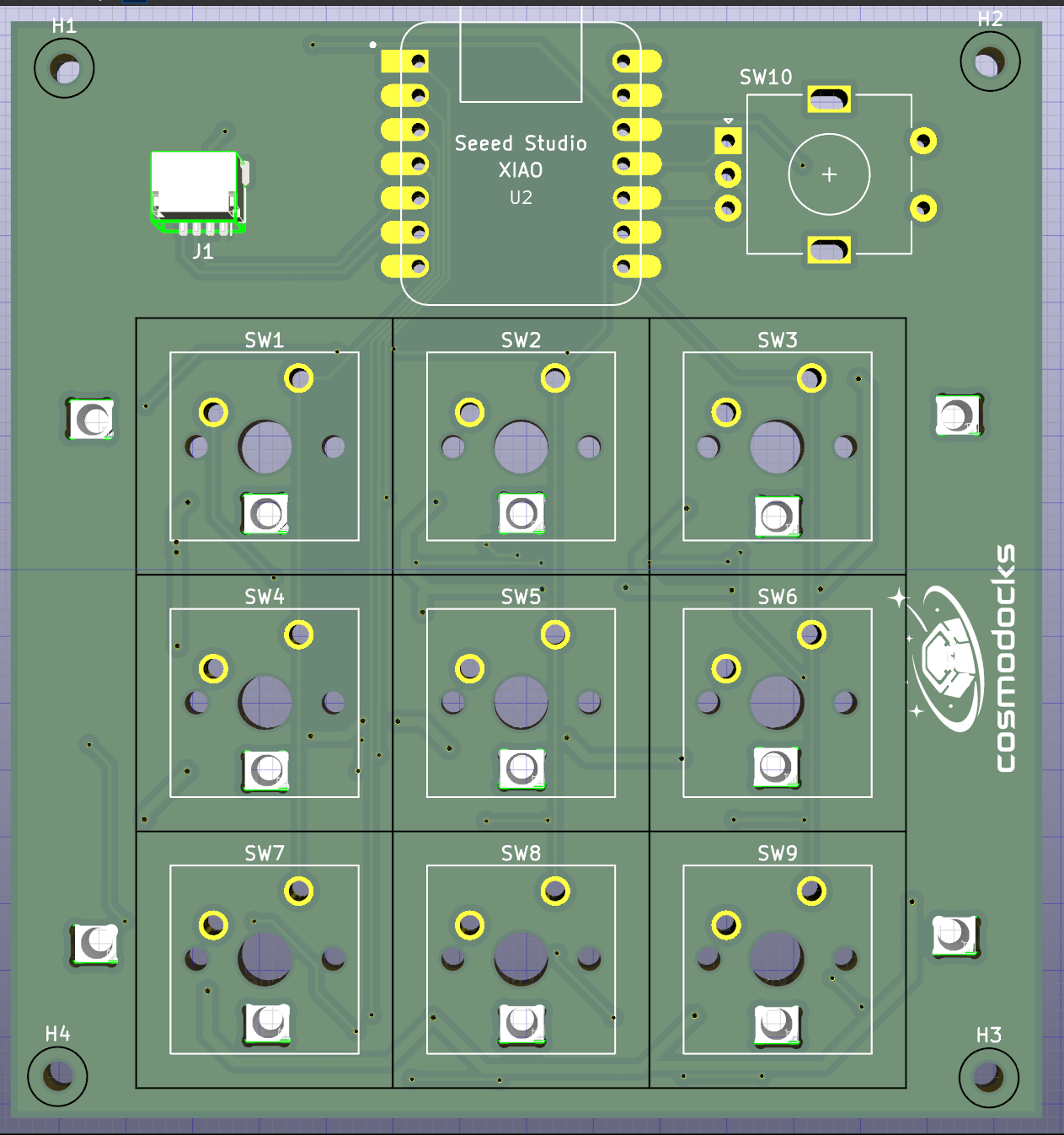

Cosmos docks, from the project README
From the project README

Main components on the Cosmos docks

SN74LV1T34DBVMOUDLE-SEEEDUINO-XIAO

Cosmos docks bill of materials (BOM)

55 components, 11 distinct parts.

QtyPartRefs
1
SN74LV1T34DBV
U1
1
MOUDLE-SEEEDUINO-XIAO
U2
1
Conn_01x04
J1
9
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +1
1
RotaryEncoder
SW10
13
SK6812MINI-E
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +5
9
1N4148W
D1, D2, D3, D4, D5, D6, D7, D8 +1
2
10nF
C1, C6
13
0.1uF
C2, C3, C4, C5, C7, C8, C9, C10 +5
1
330R
R1
4
10K
R2, R3, R4, R5

Cosmos docks design files

The KiCad project lives in the holeminhnhat3101/Cosmos-docks repository on GitHub; these links point at the commit this page was built from.

Cosmos docks: common questions

How big is the Cosmos docks PCB?

The Cosmos docks measures 76.6 × 81.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Cosmos docks?

55 components, from 11 distinct parts. The full bill of materials is listed on this page.

Where can I download the Cosmos docks design files?

From the holeminhnhat3101/Cosmos-docks repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Cosmos docks design in my own project?

Yes, under the terms of its MIT license, which holeminhnhat3101 chose for the repository.
