Cpu8085
About the Cpu8085 PCB

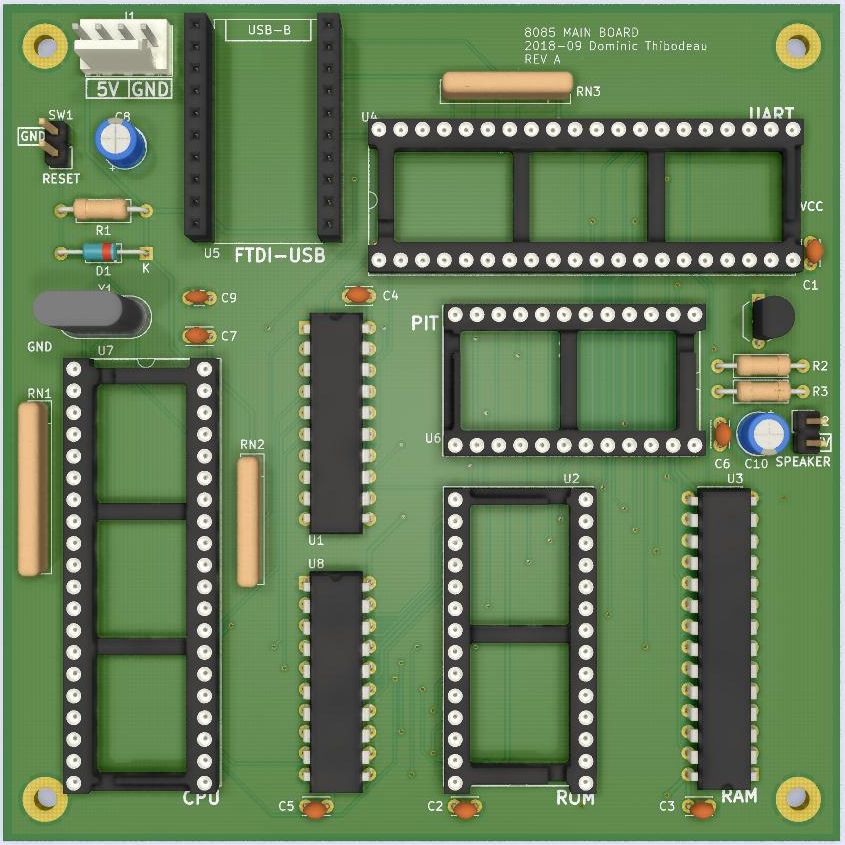

Cpu8085 is an open source PCB design by hotkeysoft, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 30 components from 22 distinct parts.
Other key parts include the GLUE_LOGIC, 27C256, IS61C256AH, 8250 and FTDI-USB. By type, the board carries 10 capacitors, 8 ICs, 6 resistors, 2 connectors, 1 transistor and 1 crystal.
From the project
Simple 8085 computer with serial IO
Features ============ - 32KB ROM - Address [0x0000-7FFF] - 32KB RAM - Address [0x8000-FFFF] - 82C54 PIT (Programmable Interval Timer) - Port [0x40-0x43] - UART 8250 or 16550 - Port [0x60-0x67] - Connected to FTDI SerialUSB Adapter
Notes ============ - No voltage regulation on board, no protection of any kind - I made a somewhat working BASIC interpreter from scratch that runs on this hardware: pfe_8085basic
Main components on the Cpu8085
Cpu8085 bill of materials (BOM)
30 components, 22 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | GLUE_LOGIC | DIP-20_W7.62mm | U1 |
| 1 | 27C256 | DIP-28_W15.24mm_Socket | U2 |
| 1 | IS61C256AH | DIP-28_W7.62mm | U3 |
| 1 | 8250 | DIP-40_W15.24mm_Socket | U4 |
| 1 | FTDI-USB | FTDI_USB | U5 |
| 1 | 82C54 | DIP-24_W15.24mm_Socket | U6 |
| 1 | 8085 | DIP-40_W15.24mm_Socket | U7 |
| 1 | 74LS573 | DIP-20_W7.62mm | U8 |
| 1 | 2N3904 | TO-92_Inline_Wide | Q1 |
| 1 | 4MHz | Crystal_HC49-U_Vertical | Y1 |
| 1 | POWER | Molex_KK-254_AE-6410-04A_1x04_P2.54mm_Vertical | J1 |
| 1 | SPEAKER | PinHeader_1x02_P2.54mm_Vertical | J2 |
| 1 | RESET | PinHeader_1x02_P2.54mm_Vertical | SW1 |
| 1 | 1N4004 | D_DO-35_SOD27_P10.16mm_Horizontal | D1 |
| 7 | 0.1uF | C_Disc_D3.0mm_W2.0mm_P2.50mm | C1, C2, C3, C4, C5, C6, C7 |
| 2 | 1uF | CP_Radial_D5.0mm_P2.50mm | C8, C10 |
| 1 | 22pF | C_Disc_D3.0mm_W1.6mm_P2.50mm | C9 |
| 1 | 75K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
| 1 | 1K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2 |
| 1 | 33 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R3 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 10K | R_Array_SIP8 | RN1 |
| 2 | 10K | R_Array_SIP6 | RN2, RN3 |
