Tqfp44Breakout PCB layout, top view — open source board by hotkeysoft

About the Tqfp44Breakout PCB

Tqfp44Breakout is an open source PCB design by hotkeysoft, published on GitHub under the MIT license. It is a 2-layer board measuring 58.4 × 22.9 mm, with 3 components from 2 distinct parts.

Other key parts include the TQFP44. By type, the board carries 2 connectors and 1 IC.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Generic TQFP44 Breakout Board

Images ============ |Front | Back | |------------------------------------------------------|---------------------------------------------------| |||

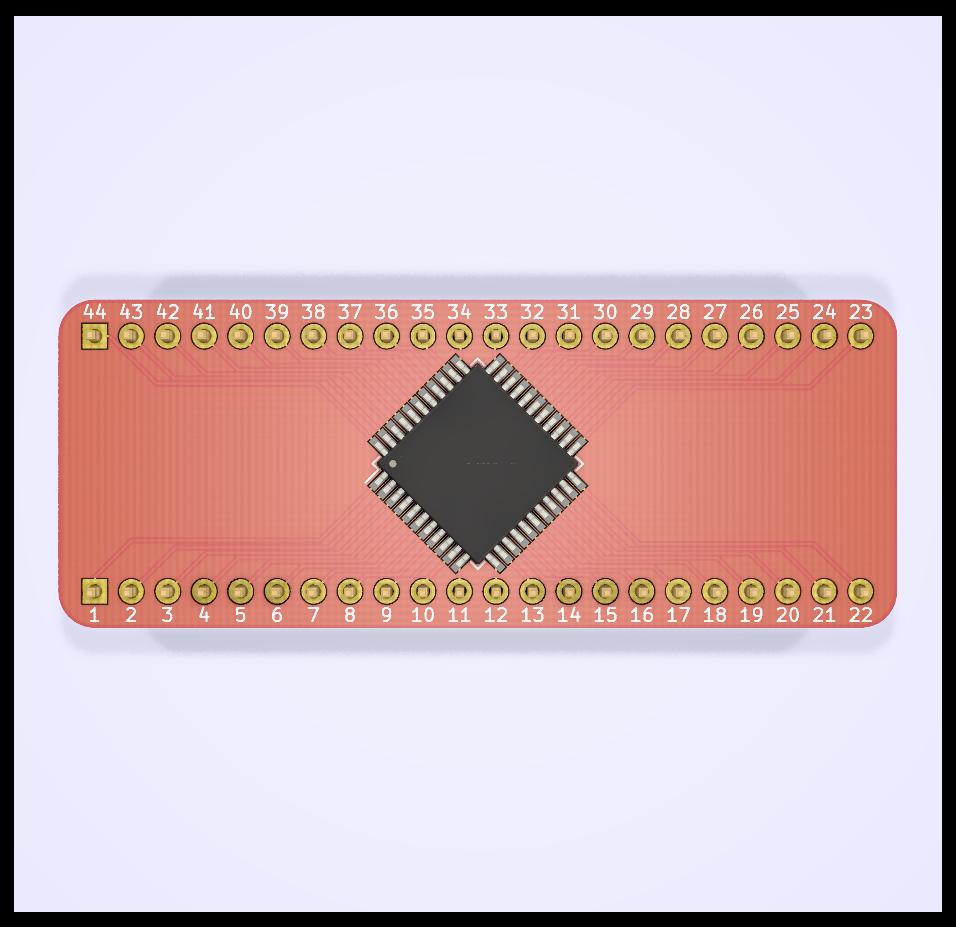

Tqfp44Breakout, from the project README
From the project README

Main components on the Tqfp44Breakout

TQFP44

Tqfp44Breakout bill of materials (BOM)

3 components, 2 distinct parts.

QtyPartRefs
1
TQFP44
U1
2
Conn_01x22
J1, J2

Tqfp44Breakout design files

The KiCad project lives in the hotkeysoft/tqfp44Breakout-kicad repository on GitHub; these links point at the commit this page was built from.

Tqfp44Breakout: common questions

How big is the Tqfp44Breakout PCB?

The Tqfp44Breakout measures 58.4 × 22.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Tqfp44Breakout?

3 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Tqfp44Breakout design files?

From the hotkeysoft/tqfp44Breakout-kicad repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Tqfp44Breakout design in my own project?

Yes, under the terms of its MIT license, which hotkeysoft chose for the repository.
