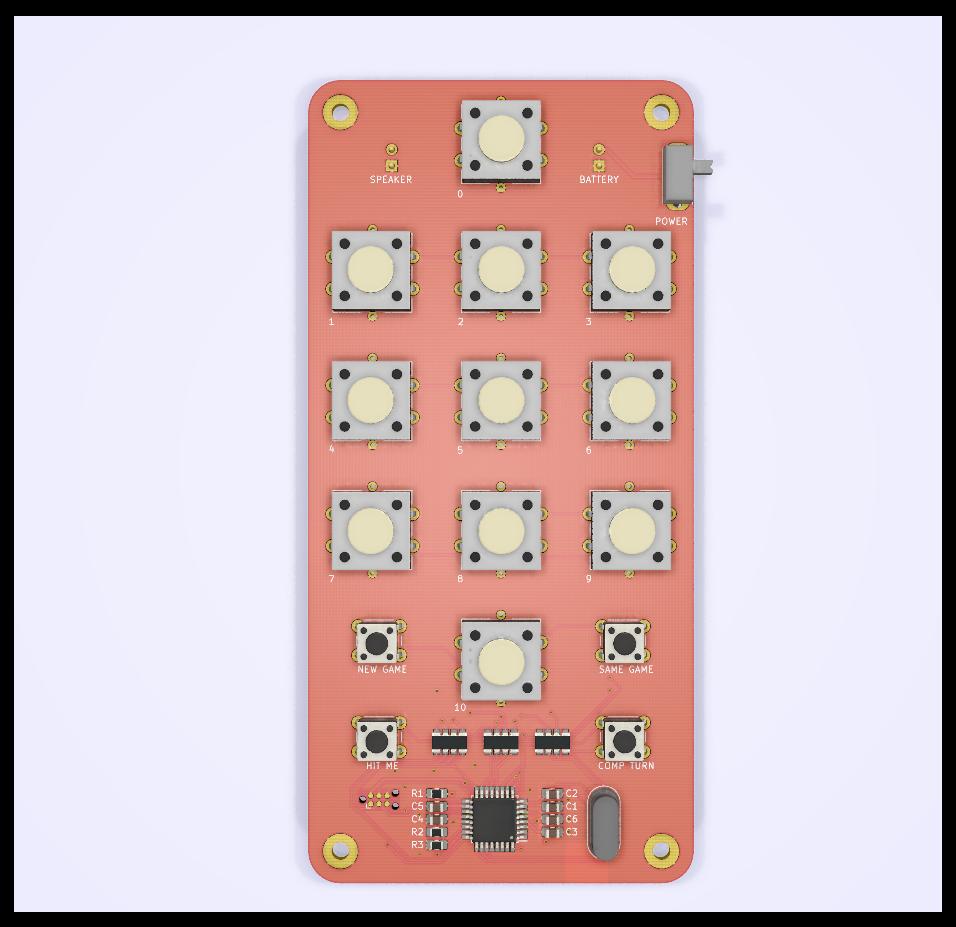

WizardElectronicGame PCB layout, top view — open source AVR/Arduino board by hotkeysoft

About the WizardElectronicGame PCB

WizardElectronicGame is an open source AVR/Arduino PCB design by hotkeysoft, published on GitHub under the MIT license. It is a 2-layer board measuring 60 × 125 mm, with 32 components from 26 distinct parts.

Its main chip is the ATmega328P-AU, from the AVR/Arduino family. By type, the board carries 16 switches, 6 capacitors, 6 resistors, 1 IC, 1 crystal and 1 connector.

From the project

Wizard Electronic Game (TMS1000 emulator running on ATmega328P)

The microcontroller runs a TMS1000-series emulator I made.

Two ROMs are loaded on the emulator: Merlin (TMS1100) and Master Merlin (TMS1400) (by Parker Brothers).

By default the game boots in Merlin mode. To play Master Merlin, press any of the four mode buttons while turning on the console.

Images ============ |Front | Back | |------------------------------------------------------|---------------------------------------------------| |||

WizardElectronicGame, from the project README
From the project README

Main components on the WizardElectronicGame

ATmega328P-AU

WizardElectronicGame bill of materials (BOM)

32 components, 26 distinct parts.

QtyPartRefs
1
ATmega328P-AU
U1
1
12MHz
Y1
1
BATTERY
J2
1
SPEAKER
LS1
1
0
SW1
1
1
SW2
1
2
SW3
1
3
SW4
1
4
SW5
1
5
SW6
1
6
SW7
1
7
SW8
1
8
SW9
1
9
SW10
1
10
SW11
1
NEW GAME
SW12
1
SAME GAME
SW13
1
HIT ME
SW14
1
COMP TURN
SW15
1
POWER
SW16
Show 6 more
QtyPartRefs
2
18pF
C1, C2
4
100nF
C3, C4, C5, C6
1
10K
R1
1
330K
R2
1
100K
R3
3
1K
RN1, RN2, RN3

WizardElectronicGame design files

The KiCad project lives in the hotkeysoft/wizardElectronicGame-kicad repository on GitHub; these links point at the commit this page was built from.

WizardElectronicGame: common questions

What microcontroller does the WizardElectronicGame use?

The WizardElectronicGame is built around the ATmega328P-AU, from the AVR/Arduino family.

How big is the WizardElectronicGame PCB?

The WizardElectronicGame measures 60 × 125 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the WizardElectronicGame?

32 components, from 26 distinct parts. The full bill of materials is listed on this page.

Where can I download the WizardElectronicGame design files?

From the hotkeysoft/wizardElectronicGame-kicad repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the WizardElectronicGame design in my own project?

Yes, under the terms of its MIT license, which hotkeysoft chose for the repository.

Can I test firmware for the WizardElectronicGame without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
