About the Xc9536xlBreakout PCB

Xc9536xlBreakout is an open source PCB design by hotkeysoft, published on GitHub under the MIT license. It is a 2-layer board measuring 48.3 × 25.4 mm, with 10 components from 7 distinct parts.

Other key parts include the XC9536XL-VQ44 and MIC5504-3.3YM5. By type, the board carries 5 capacitors, 3 connectors and 2 ICs.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Breakout Board for XC9536XL CPLD

XC9536XL CPLD Features ============ - 5 ns pin-to-pin logic delays - System frequency up to 178 MHz - 36 macrocells with 800 usable gates - 5V tolerant I/O pins (accept 5 V, 3.3V, and 2.5V signals) - 3.3V or 2.5V output capability

Breakout Board Features ============ - JTAG Programming Header - 5V->3.3V Voltage Regulator to power XC9536XL - XC9536XL is 5V tolerant and, with a 3.3V output, is compatible with in 5V TTL projects.

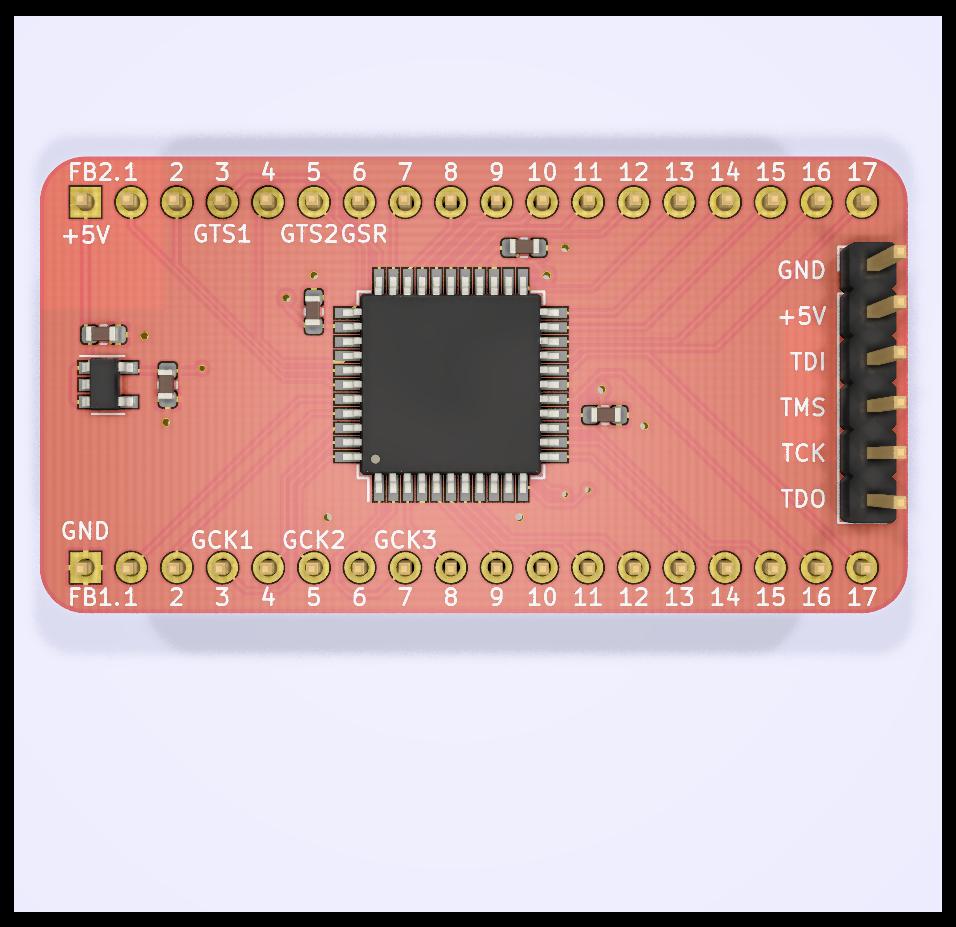

Xc9536xlBreakout, from the project README — From the project README

Main components on the Xc9536xlBreakout

XC9536XL-VQ44 MIC5504-3.3YM5

Xc9536xlBreakout bill of materials (BOM)

10 components, 7 distinct parts.

Qty	Part	Footprint	Refs
1	XC9536XL-VQ44	TQFP-44_10x10mm_P0.8mm	U1
1	MIC5504-3.3YM5	SOT-23-5	U2
1	19-36	PinHeader_1x18_P2.54mm_Vertical	J1
1	1-18	PinHeader_1x18_P2.54mm_Vertical	J2
1	JTAG	PinHeader_1x06_P2.54mm_Vertical	J3
3	0.1uF	C_0603_1608Metric	C1, C2, C3
2	1uF	C_0603_1608Metric	C4, C5

Xc9536xlBreakout design files

The KiCad project lives in the hotkeysoft/xc9536xlBreakout-kicad repository on GitHub; these links point at the commit this page was built from.

LayoutXC9536XL.kicad_pcb

Xc9536xlBreakout: common questions

How big is the Xc9536xlBreakout PCB?

The Xc9536xlBreakout measures 48.3 × 25.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Xc9536xlBreakout?

10 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the Xc9536xlBreakout design files?

From the hotkeysoft/xc9536xlBreakout-kicad repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Xc9536xlBreakout design in my own project?

Yes, under the terms of its MIT license, which hotkeysoft chose for the repository.
