Sevenpin PCB layout, top view — open source board by hshit2010

About the Sevenpin PCB

Sevenpin is an open source PCB design by hshit2010, published on GitHub. It is a 2-layer board measuring 56 × 64 mm, with 9 components from 4 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 7 switches, 1 IC and 1 connector.

It belongs with the displays & leds designs in this gallery.

From the project

Hi my name is harshit and i started this project 3 days ago with no knowledge of hardware etc and this journey took 3 days in short like this day1: created the schematic, pcb design day 2: completed the pcb and started on case day 3:completed the case in this project i have 6 key

Hi my name is harshit and i started this project 3 days ago with no knowledge of hardware etc and this journey took 3 days in short like this day1: created the schematic, pcb design day 2: completed the pcb and started on case day 3:completed the case in this project i have 6 keys , rotatory dial and 1 mini oled screen used

it uses KMK and is structured like this :

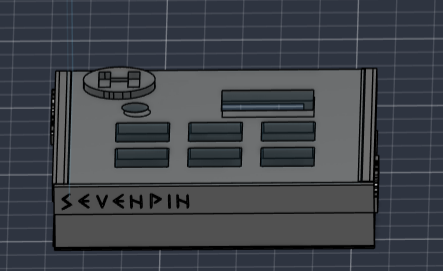

Sevenpin, from the project README
From the project README

Main components on the Sevenpin

MOUDLE-SEEEDUINO-XIAO

Sevenpin bill of materials (BOM)

9 components, 4 distinct parts.

QtyPartRefs
1
MOUDLE-SEEEDUINO-XIAO
U1
1
Conn_01x04_Socket
J1
6
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6
1
RotaryEncoder_Switch
SW7

Sevenpin design files

The KiCad project lives in the hshit2010/sevenpin repository on GitHub; these links point at the commit this page was built from.

Sevenpin: common questions

How big is the Sevenpin PCB?

The Sevenpin measures 56 × 64 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Sevenpin?

9 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Sevenpin design files?

From the hshit2010/sevenpin repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Sevenpin design in my own project?

The repository has no license, so all rights stay with hshit2010. Use it as a reference, and ask the author before reusing the design.
