About the VoidHHKB-Solder PCB

VoidHHKB-Solder is an open source STM32 PCB design by hungrygeek, published on GitHub. It is a 2-layer board measuring 286.4 × 96.2 mm, with 155 components from 84 distinct parts.

Its main chip is the STM32F072CBT6, from the STM32 family. Other key parts include the XC6206P332MR-G. By type, the board carries 63 diodes, 9 capacitors, 2 ICs, 2 switches, 2 resistors and 1 fuse.

It belongs with the keyboards designs in this gallery.

From the project

Open-source HHKB-layout MX custom keyboard — KiCad PCB, case STL, QMK/VIA firmware. Personal iteration of the HSKB (Happy Sabi Keyboard).

2) Upload the VoidHHKB-Solder.zip file in production/.

3) Set the quantity of the PCBs you want made.

4) Set your desired PCB parameters. Here are some suggested parameters: (Everything else can be kept at their default)

- PCB Color: Purple - Surface Finish: ENIG - Remove Order Number: Yes

5) Enable the PCB Assembly option at the bottom, and set the following parameters:

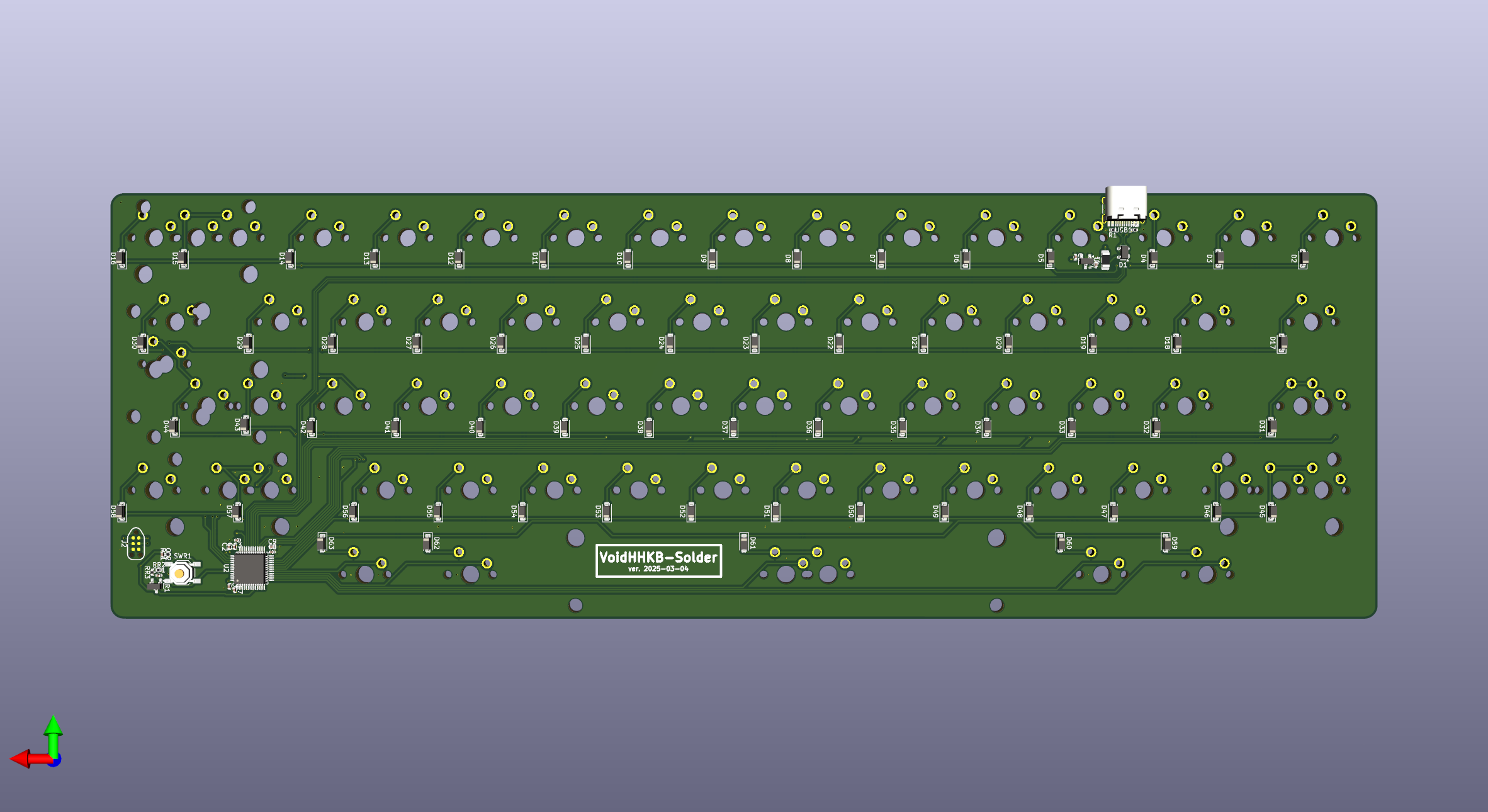

VoidHHKB-Solder, from the project README
From the project README

Main components on the VoidHHKB-Solder

XC6206P332MR-GSTM32F072CBT6

VoidHHKB-Solder bill of materials (BOM)

155 components, 84 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
XC6206P332MR-G
XC6206P332MR
U1
1
STM32F072CBT6
U2
1
CL05A106MQ5NUNC
10uF
CR1
1
CL05A105KA5NQNC
1uF
CR2
1
nSMD050
500mA
F1
1
Esc
MX1
1
1
MX2
1
2
MX3
1
3
MX4
1
4
MX5
1
5
MX6
1
6
MX7
1
7
MX8
1
8
MX9
1
9
MX10
1
10
MX11
1
-
MX12
1
=
MX13
1
\
MX14
1
`
MX15
Show 64 more
QtyPartRefs
1
Full Backspace
MX16
1
Tab
MX17
1
Q
MX18
1
W
MX19
1
E
MX20
1
R
MX21
1
T
MX22
1
Y
MX23
1
U
MX24
1
I
MX25
1
O
MX26
1
P
MX27
1
[
MX28
1
]
MX29
1
Backspace
MX30
1
Stepped Caps
MX31
1
A
MX32
1
S
MX33
1
D
MX34
1
F
MX35
1
G
MX36
1
H
MX37
1
J
MX38
1
K
MX39
1
L
MX40
1
;
MX41
1
'
MX42
2
NUHS
MX43, MX48
1
ANSI Enter
MX44
1
Caps
MX45
1
ISO Enter
MX46
1
LShift
MX47
1
Z
MX49
1
X
MX50
1
C
MX51
1
V
MX52
1
B
MX53
1
N
MX54
1
M
MX55
1
,
MX56
1
.
MX57
1
/
MX58
1
RShift 1.75u
MX59
1
fn
MX60
1
LShift 1.25u
MX61
1
RShift 2.75u
MX62
2
Alt
MX63, MX67
2
Super
MX64, MX66
1
Spacebar
MX65
1
Off Center Spacebar
MX68
1
2N7002
QR1
1
0402WGF3302TCE
33k
RR1
1
0402WGF1002TCE
10k
RR2
1
0402WGF1003TCE
100k
RR3
1
2u Backspace
S1
1
ISO Enter
S3
1
TS-1187A-B-A-B
SWR1
1
TYPE-C-31-M-12
USB_C_Receptacle_USB2.0_16P
USB1
1
PRTR5V0U2X
D1
62
1N4148W
D2, D3, D4, D5, D6, D7, D8, D9 +54
2
CL05A475MP5NRNC
4.7uF
C1, C8
4
CL05B104KO5NNNC
100nF
C2, C3, C7, C9
3
CL05A105KA5NQNC
1uF
C4, C5, C6
2
0402WGF5101TCE
5k1
R1, R2

VoidHHKB-Solder design files

The KiCad project lives in the hungrygeek/HSKB repository on GitHub; these links point at the commit this page was built from.

VoidHHKB-Solder: common questions

What microcontroller does the VoidHHKB-Solder use?

The VoidHHKB-Solder is built around the STM32F072CBT6, from the STM32 family.

How big is the VoidHHKB-Solder PCB?

The VoidHHKB-Solder measures 286.4 × 96.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the VoidHHKB-Solder?

155 components, from 84 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the VoidHHKB-Solder design files?

From the hungrygeek/HSKB repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the VoidHHKB-Solder design in my own project?

The repository has no license, so all rights stay with hungrygeek. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the VoidHHKB-Solder without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
