Tmc2660-quad
About the Tmc2660-quad PCB
Tmc2660-quad is an open source PCB design by hzeller, published on GitHub. It is a 4-layer board measuring 125 × 40 mm, with 67 components from 13 distinct parts.
Other key parts include the TMC2660. By type, the board carries 36 capacitors, 16 resistors, 10 connectors, 4 ICs and 1 fuse.
It belongs with the robotics & motion designs in this gallery.
From the project

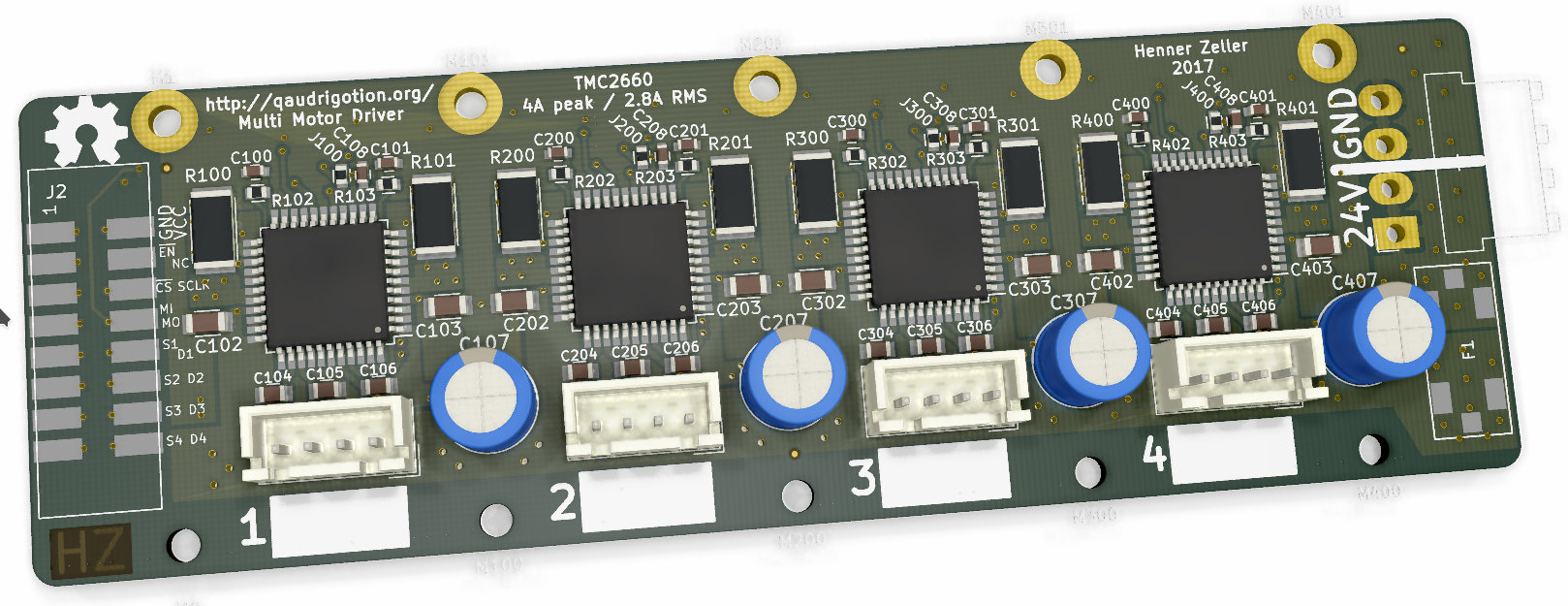

TMC2660 Four stepper motor drivers on a stick.
Quadrigotion: Multiple Motor Drivers, one connector ============================================================
Often it is useful to have all the motor drivers needed for a machine on a separate circuit board to be able to mount it to a heatsink or close to the action. This is what this project is about. The name Quadrigotion is a word amalgamated from 'Quadriga' (Four horses powering a chariot) and 'Motion'.
Main components on the Tmc2660-quad
Tmc2660-quad bill of materials (BOM)
67 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | TMC2660 | LQFP-44_10x10mm_Pitch0.8mm | U100, U200, U300, U400 |
| 1 | Power | JST_VH_B4PS-VH_2x4x3.96mm_Horizontal | J1 |
| 1 | DataIn | IDC_Header_SMD_16pins | J2 |
| 4 | 0R | R_0603 | J100, J200, J300, J400 |
| 4 | Motor | JST_XH_B04B-XH-A_04x2.50mm_Straight | P100, P200, P300, P400 |
| 1 | Fuse | BladeFuse-Mini_Keystone-3586 | F1 |
| 8 | 10n | C_0603 | C100, C101, C200, C201, C300, C301, C400, C401 |
| 8 | 10u | C_1206 | C102, C103, C202, C203, C302, C303, C402, C403 |
| 12 | 100n | C_0805 | C104, C105, C106, C204, C205, C206, C304, C305 +4 |
| 4 | 180u | CP_Radial_D8.0mm_P3.50mm | C107, C207, C307, C407 |
| 4 | 470n | C_0603 | C108, C208, C308, C408 |
| 8 | 0.075 | R_2512 | R100, R101, R200, R201, R300, R301, R400, R401 |
| 8 | 10R | R_0603 | R102, R103, R202, R203, R302, R303, R402, R403 |
Tmc2660-quad design files
The KiCad project lives in the hzeller/quadrigotion repository on GitHub; these links point at the commit this page was built from.
Tmc2660-quad: common questions
How big is the Tmc2660-quad PCB?
The Tmc2660-quad measures 125 × 40 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Tmc2660-quad?
67 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the Tmc2660-quad design files?
From the hzeller/quadrigotion repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Tmc2660-quad design in my own project?
The repository has no license, so all rights stay with hzeller. Use it as a reference, and ask the author before reusing the design.
