Display module
About the Display module
Display module is an open source PCB design by i-melnichenko, published on GitHub under the MIT license. It is a 2-layer board measuring 35.6 × 41.3 mm, with 8 components from 7 distinct parts.
Other key parts include the 74LS00 and 74LS373. By type, the board carries 2 ICs, 2 capacitors, 1 connector and 1 resistor.
It belongs with the displays & leds designs in this gallery.
From the project

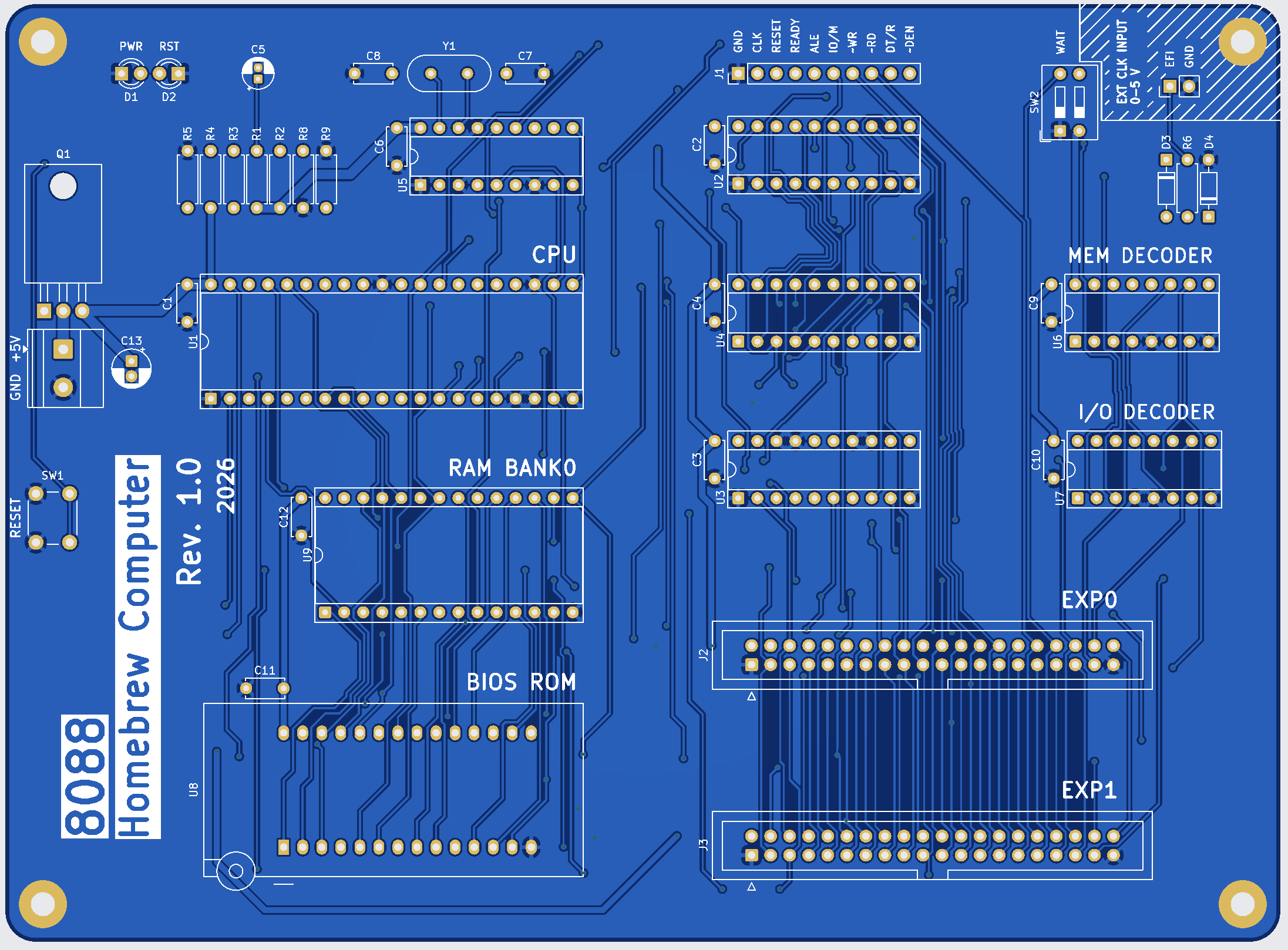

An open-source modular computer built around the Intel 8088 CPU.
An open-source modular computer built around the Intel 8088 CPU.
This project explores the design of a modular 8088-based computer using through-hole DIP components and a custom expansion architecture.
The project is developed incrementally, starting with a minimal working system and gradually adding new hardware and software capabilities.
The default firmware is a minimal ROM BIOS. It builds a 32 KiB EEPROM image, initializes an HD44780-compatible 20×4 LCD on Exp1, copies the bundled program to SRAM, and transfers control to it.
Main components on the Display module
Display module bill of materials (BOM)
8 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74LS00 | DIP-14_W7.62mm_Socket | U1 |
| 1 | 74LS373 | DIP-20_W7.62mm_Socket | U2 |
| 1 | Exp0 | PinSocket_2x20_P2.54mm_Vertical | J1 |
| 1 | WC1602A | PinSocket_1x16_P2.54mm_Vertical | DS1 |
| 1 | 10k | Potentiometer_Runtron_RM-065_Vertical | RV1 |
| 2 | 100nF | C_Disc_D5.0mm_W2.5mm_P5.00mm | C2, C3 |
| 1 | 650 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2 |
Display module design files
The KiCad project lives in the i-melnichenko/8088-homebrew-computer repository on GitHub; these links point at the commit this page was built from.
Display module: common questions
How big is the Display module?
The Display module measures 35.6 × 41.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Display module?
8 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the Display module design files?
From the i-melnichenko/8088-homebrew-computer repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Display module design in my own project?
Yes, under the terms of its MIT license, which i-melnichenko chose for the repository.
