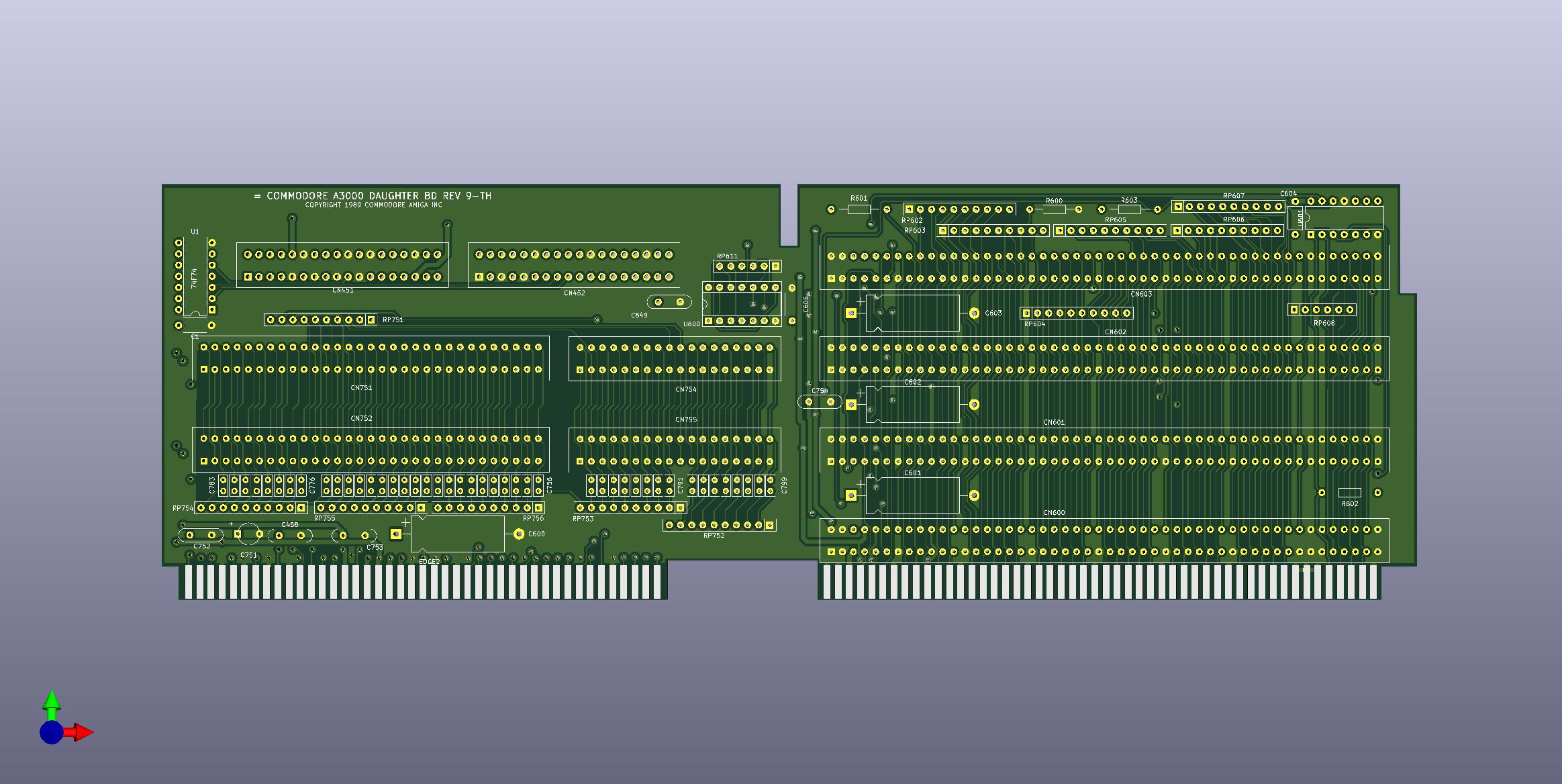

Amiga-3000-Daughterboard
iansbremner·Amiga-3000-Daughterboard
About the Amiga-3000-Daughterboard PCB
Amiga-3000-Daughterboard is an open source PCB design by iansbremner, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 285.8 × 94.6 mm, with 90 components from 21 distinct parts.
Other key parts include the 110-43-314-41-001000, CD74HCT32EE4 and SN7407N. By type, the board carries 57 capacitors, 10 connectors, 4 resistors and 3 ICs.
It belongs with the retro computing designs in this gallery.
From the project
When fabbing the board you will probably be asked if you want to remove the solder mask on the area for the Edge Connectors. It is fine to say Yes to this.

Main components on the Amiga-3000-Daughterboard
Amiga-3000-Daughterboard bill of materials (BOM)
90 components, 21 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 110-43-314-41-001000 74F74 | DIP-14_W7.62mm | U1 |
| 1 | CD74HCT32EE4 74HCT32 | DIP-14_W7.62mm_Socket | U600 |
| 1 | SN7407N 7407 | DIP-14_W7.62mm | U601 |
| 2 | 2-5530843-7 Video_Slot | Video Slot | CN451, CN452 |
| 4 | 2-5530843-2 Zorro-III | Zorro-III | CN600, CN601, CN602, CN603 |
| 2 | 6-5530843-5 ISA_8_Bit | ISA 8 Bit | CN751, CN752 |
| 2 | 2-5530843-7 ISA_16_Bit_Extended | ISA 16 Bit | CN754, CN755 |
| 1 | Edge1 | Edge2 | EDGE1 |
| 1 | Edge2 | Edge1 | EDGE2 |
| 6 | 4610X-104-221/331LF 220/330 | R_Array_SIP10 | RP602, RP603, RP604, RP605, RP606, RP607 |
| 1 | 4606X-104-221/331L 220/330 | R_Array_SIP6 | RP608 |
| 1 | 4606M-101-102LF 1K | R_Array_SIP6 | RP611 |
| 1 | 4610H-101-472LF 4.7k | R_Array_SIP10 | RP751 |
| 5 | 4610M-101-102LF 1K | R_Array_SIP10 | RP752, RP753, RP754, RP755, RP756 |
| 3 | A104K15X7RH5UAAP 0.1uF | C_Axial_L5.1mm_D3.1mm_P7.50mm_Horizontal | C1, C604, C606 |
| 5 | A224K20X7RF5UAAP 0.22uF | C_Disc_D7.0mm_W2.5mm_P5.00mm | C458, C752, C753, C754, C849 |
| 4 | MAL203135221E3 220uF 16V | CP_Axial_L21.0mm_D8.0mm_P28.00mm_Horizontal | C600, C601, C602, C603 |
| 1 | ECA-1CEN220 22uF 16V | CP_Radial_D8.0mm_P5.00mm | C751 |
| 44 | A102K15X7RF5UAAP 1000pF | C_Rect_L4.6mm_W2.0mm_P2.50mm_MKS02_FKP02 | C756, C757, C758, C759, C760, C761, C762, C763 +36 |
| 2 | MRS16000C1001FC100 1K | Resistor | R600, R602 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | SFR2500004700JA500 470 | Resistor | R601, R603 |
Amiga-3000-Daughterboard design files
The KiCad project lives in the iansbremner/Amiga-3000-Daughterboard repository on GitHub; these links point at the commit this page was built from.
- LayoutDaughterboard.kicad_pcb
- BOMBOM.xlsx
Amiga-3000-Daughterboard: common questions
How big is the Amiga-3000-Daughterboard PCB?
The Amiga-3000-Daughterboard measures 285.8 × 94.6 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Amiga-3000-Daughterboard?
90 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Amiga-3000-Daughterboard design files?
From the iansbremner/Amiga-3000-Daughterboard repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Amiga-3000-Daughterboard design in my own project?
Yes, under the terms of its GPL-3.0 license, which iansbremner chose for the repository.
