STM32 Cpp Self Watering Pot Firmware-Hardware

igokraj·STM32_Cpp_Self_Watering_Pot_Firmware-Hardware·hardware/Self_Watering_POT/Self_Watering_POT.kicad_pcb

STM32 Cpp Self Watering Pot Firmware-Hardware PCB layout, top view — open source STM32 board by igokraj

About the STM32 Cpp Self Watering Pot Firmware-Hardware PCB

STM32 Cpp Self Watering Pot Firmware-Hardware is an open source STM32 PCB design by igokraj, published on GitHub under the MIT license. It is a 2-layer board measuring 50 × 80 mm, with 60 components from 26 distinct parts.

Its main chip is the C69336, from the STM32 family. Other key parts include the C6186. By type, the board carries 18 resistors, 16 capacitors, 9 diodes, 3 connectors, 3 switches and 2 ICs.

It belongs with the displays & leds and sensors designs in this gallery.

From the project

Complete firmware and hardware solution for a self-watering pot, written in C++

Projekt zakładał stworzenie automatycznej, samopodlewającej się doniczki na mikrokontrolerze STM32F446RE. Firmware jest napisany w C++. System pilnuje wilgotności gleby i sam włącza pompkę, kiedy gleba robi się za sucha. Da się też wymusić podlewanie ręcznie, a system ma kilka zabezpieczeń na wypadek, gdyby coś poszło nie tak (zaklinowana pompa, uszkodzony czujnik, zawieszony program, pusty pojemnik na wodę).

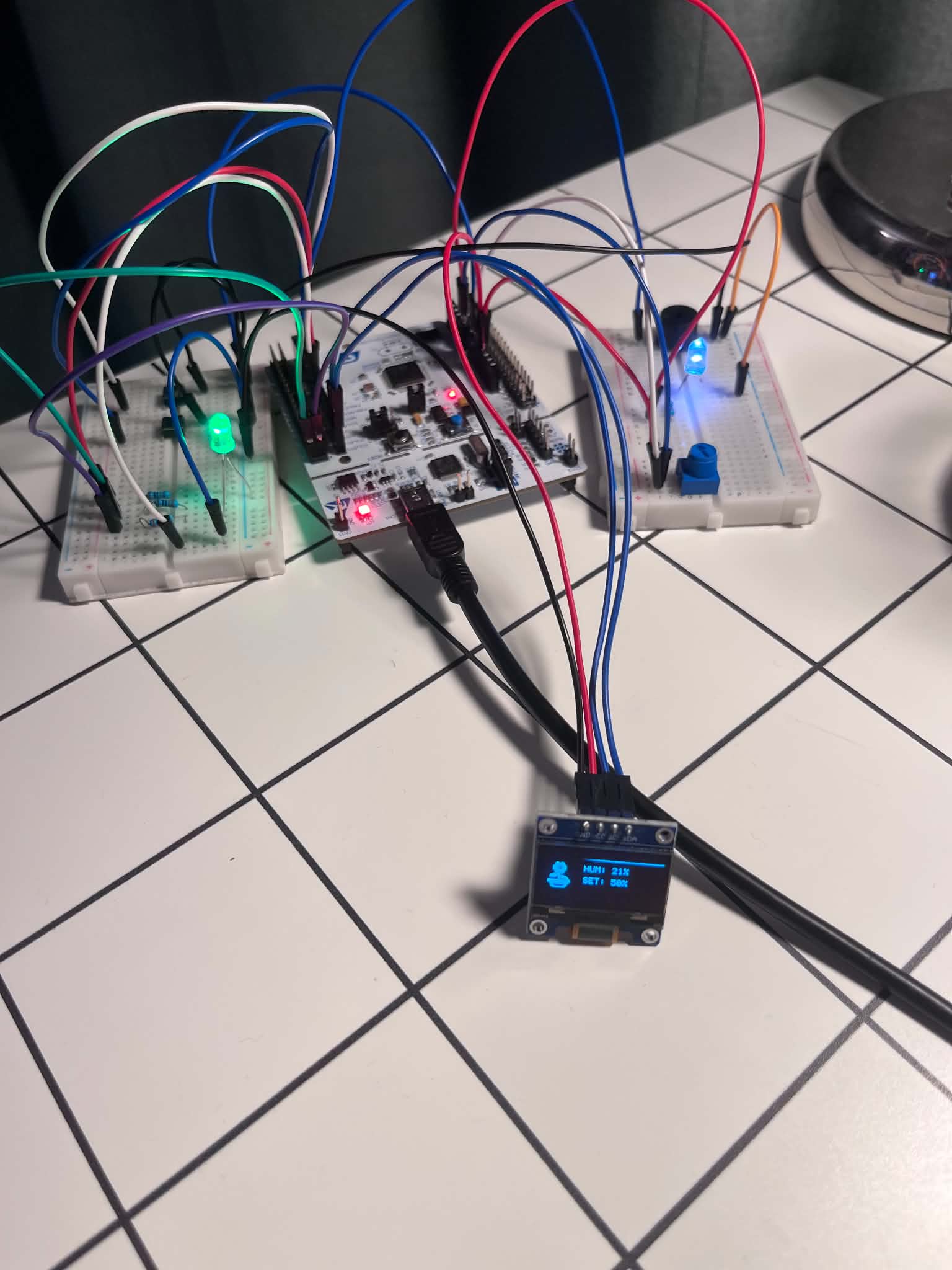

STM32 Cpp Self Watering Pot Firmware-Hardware, from the project README
From the project README

Main components on the STM32 Cpp Self Watering Pot Firmware-Hardware

C6186C69336

STM32 Cpp Self Watering Pot Firmware-Hardware bill of materials (BOM)

60 components, 26 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C6186
AMS1117-3.3_SOT223
U1
1
C69336
STM32F446RETx
U2
1
IRLZ540N
Q1
1
Barrel_Jack
J1
2
SCREW_TERMINAL_01X02
Screw_Terminal_01x02
J5, J6
1
Buzzer
Buzzer1
1
C49318453
1812L150/24
F1
1
Conn_01x03_Pin
Hum Sensor1
1
CONN_01X04_PIN
Conn_01x04_Pin
OLED1
1
CONN_01X04_PIN
Conn_01x04_Pin
STLink1
3
SW_Push
SW1, SW2, SW3
1
LED
LED1
1
LED_ARGB
RGB1
1
C83846
SMBJ15A
D2
1
C388236
B340_SMA
D3
7
C2480
SS14
D4, D6, D7, D8, D9, D10, D11
1
C141723
BEAD(FCM1608KF-601T03)
L1
2
C7171
10uF
C1, C3
11
C1591
100nF
C2, C4, C5, C7, C8, C9, C10, C13 +3
2
C11369
4.7uF
C6, C11
Show 6 more
QtyPartRefs
1
C382212
1uF
C12
4
C17630
330
R1, R2, R3, R12
2
C17673
4.7k
R4, R5
7
C17414
10k
R6, R9, R10, R11, R13, R14, R15
1
C17408
100
R7
4
C17513
1k
R8, R16, R17, R18

STM32 Cpp Self Watering Pot Firmware-Hardware design files

The KiCad project lives in the igokraj/STM32_Cpp_Self_Watering_Pot_Firmware-Hardware repository on GitHub; these links point at the commit this page was built from.

STM32 Cpp Self Watering Pot Firmware-Hardware: common questions

What microcontroller does the STM32 Cpp Self Watering Pot Firmware-Hardware use?

The STM32 Cpp Self Watering Pot Firmware-Hardware is built around the C69336, from the STM32 family.

How big is the STM32 Cpp Self Watering Pot Firmware-Hardware PCB?

The STM32 Cpp Self Watering Pot Firmware-Hardware measures 50 × 80 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the STM32 Cpp Self Watering Pot Firmware-Hardware?

60 components, from 26 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the STM32 Cpp Self Watering Pot Firmware-Hardware design files?

From the igokraj/STM32_Cpp_Self_Watering_Pot_Firmware-Hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the STM32 Cpp Self Watering Pot Firmware-Hardware design in my own project?

Yes, under the terms of its MIT license, which igokraj chose for the repository.

Can I test firmware for the STM32 Cpp Self Watering Pot Firmware-Hardware without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
