About the NRF5340 PCB
NRF5340 is an open source PCB design by ihsan92UM, published on GitHub. It is a 4-layer board measuring 29.6 × 29.6 mm, with 29 components from 19 distinct parts.
Other key parts include the NPM1300-QEAA-R, NORA-B106-00B, LIS2DTW12, STS40 and USBLC6-2SC6. By type, the board carries 8 capacitors, 5 ICs, 5 resistors, 4 connectors, 4 diodes and 2 switches.
It belongs with the test & measurement and iot & wireless designs in this gallery.

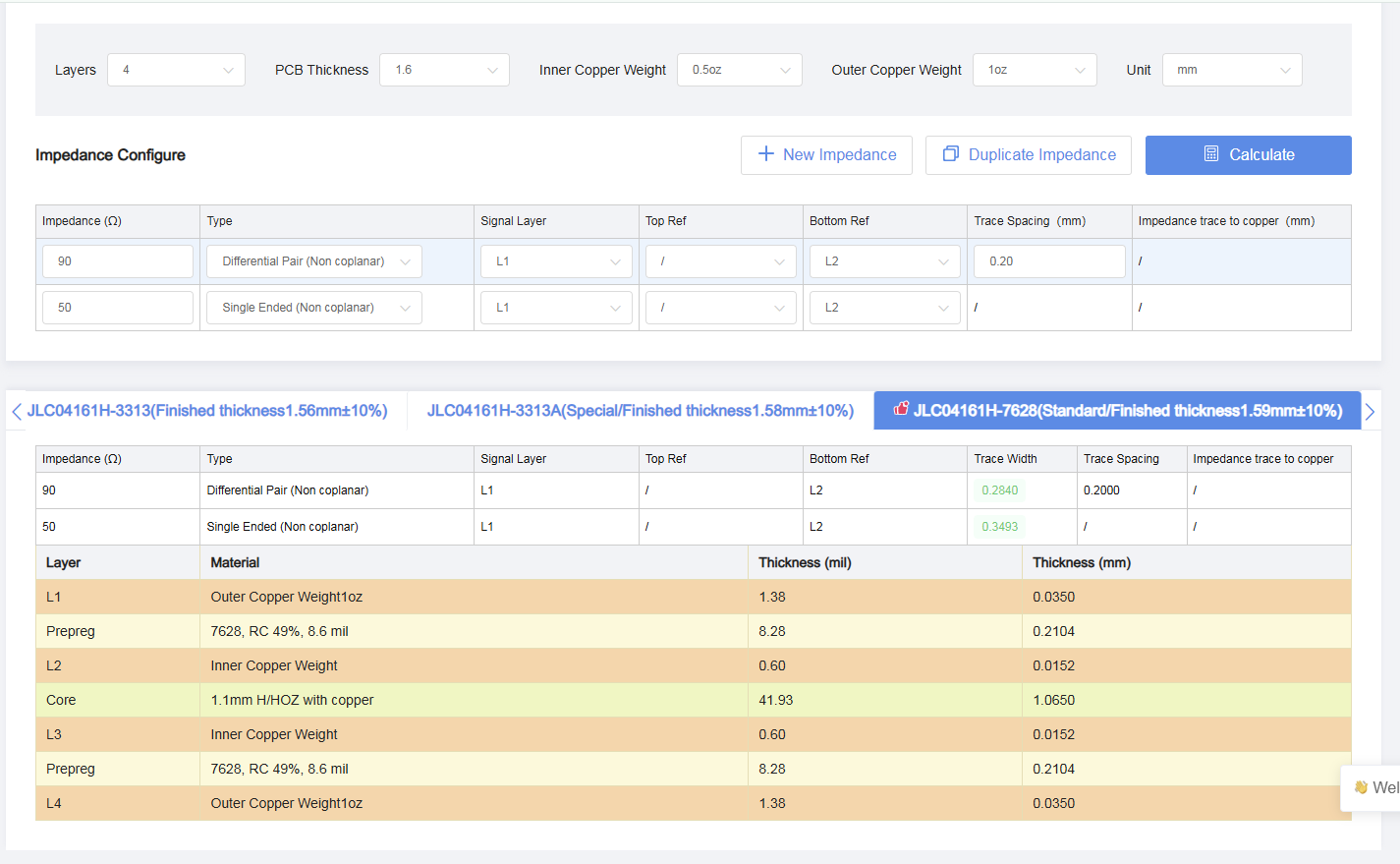

From the project
Project Work Submission at Chair of Micro Systems, TU Dresden
Main components on the NRF5340
NRF5340 bill of materials (BOM)
29 components, 19 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NPM1300-QEAA-R | NPM1300 | IC1 |
| 1 | NORA-B106-00B | NORA-B106-00B | U1 |
| 1 | LIS2DTW12 | LIS2DTW12_STM | U2 |
| 1 | STS40 | STS40 | U4 |
| 1 | USBLC6-2SC6 | SOT-23-6 | U6 |
| 3 | SM02B-SRSS-TB | SM02B-SRSS-TB | J3, J4, J8 |
| 1 | UJ20-C-H-G-SMT-P16-TR | SAMESKY_UJ20-C-H-G-SMT-P16-TR-USBC-FEMALE | J9 |
| 2 | SW_MEC_5E | SW4_PTS815 SJM 250 SMTR LFS_CNK | SW1, SW2 |
| 2 | Red | LED_0603_1608Metric | D1, D3 |
| 1 | Green | LED_0603_1608Metric | D4 |
| 1 | Blue | LED_0603_1608Metric | D5 |
| 1 | 2.2uH 20% | L_0603_1608Metric | L1 |
| 4 | 100nF | C_0603_1608Metric | C1, C9, C17, C18 |
| 1 | 4.7uF | C_0603_1608Metric | C7 |
| 2 | 10uF | C_0603_1608Metric | C8, C13 |
| 1 | 2.2uF | C_0603_1608Metric | C11 |
| 3 | 4.7K | R_0603_1608Metric | R1, R8, R9 |
| 1 | 220R | R_0603_1608Metric | R2 |
| 1 | 330K | R_0603_1608Metric | R6 |
NRF5340 design files
The KiCad project lives in the ihsan92UM/Project-work repository on GitHub; these links point at the commit this page was built from.
NRF5340: common questions
How big is the NRF5340 PCB?
The NRF5340 measures 29.6 × 29.6 mm, has 4 copper layers and is 1.6062 mm thick.
How many components are on the NRF5340?
29 components, from 19 distinct parts. The full bill of materials is listed on this page.
Where can I download the NRF5340 design files?
From the ihsan92UM/Project-work repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the NRF5340 design in my own project?
The repository has no license, so all rights stay with ihsan92UM. Use it as a reference, and ask the author before reusing the design.
