Rc helicopter remote

ikajdan·rc-helicopter-remote·hardware/rc_helicopter_remote_control.kicad_pcb

Rc helicopter remote PCB layout, top view — open source STM32 board by ikajdan

About the Rc helicopter remote PCB

Rc helicopter remote is an open source STM32 PCB design by ikajdan, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 100 × 50 mm, with 43 components from 24 distinct parts.

Its main chip is the STM32L4P5RET6, from the STM32 family. Other key parts include the LTC3440EMS#PBF and NRF24L01_Breakout. By type, the board carries 11 capacitors, 11 resistors, 5 switches, 5 diodes, 3 ICs and 2 connectors.

It belongs with the power & battery designs in this gallery.

From the project

RC helicopter remote control based on an STM32 MCU

This project is a custom PCB-based remote controller for an RC helicopter, built around the STM32L452RET6 microcontroller. It interfaces with two joysticks, four buttons, and two potentiometers to capture user input and transmits control data wirelessly via the NRF24L01 module to the helicopter's mainboard.

It complements the Mainboard PCB and is developed in parallel with it as part of the same system.

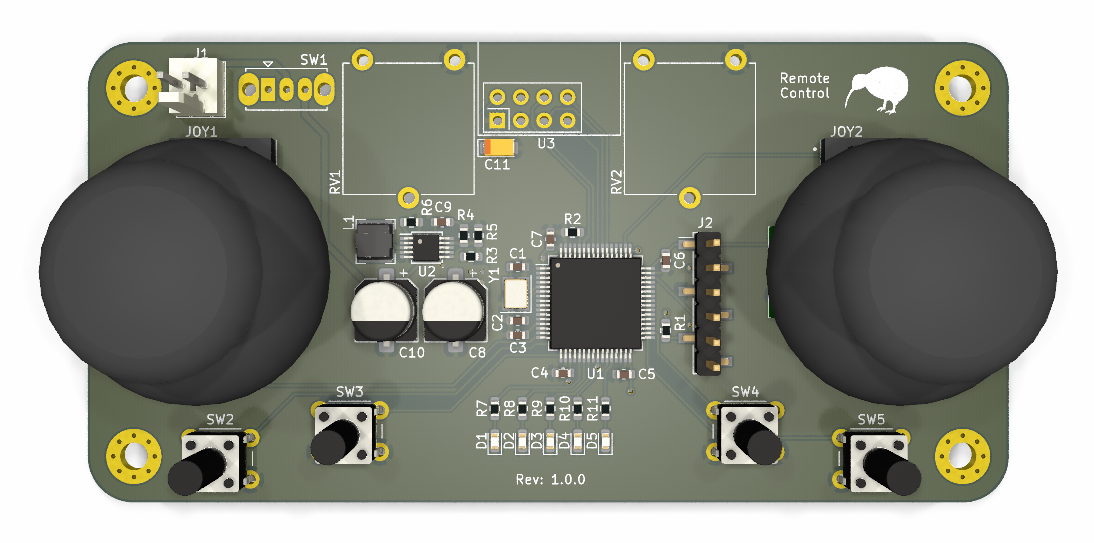

Rc helicopter remote, from the project README
From the project README

Main components on the Rc helicopter remote

STM32L4P5RET6LTC3440EMS#PBFNRF24L01_Breakout

Rc helicopter remote bill of materials (BOM)

43 components, 24 distinct parts.

QtyPartRefs
1
STM32L4P5RET6
U1
1
LTC3440EMS#PBF
LTC3440EMS
U2
1
NRF24L01_Breakout
U3
1
16MHz
Y1
1
Battery Pack
J1
1
SWD
J2
2
COM-09032
JOY1, JOY2
2
100kΩ
RV1, RV2
1
SW_SPST
SW1
4
SW_Push
SW2, SW3, SW4, SW5
5
Blue
D1, D2, D3, D4, D5
1
10μH
L1
2
22pF
C1, C2
5
100nF
C3, C4, C5, C6, C7
1
22μF
C8
1
1.5nF
C9
1
10μF
C10
1
10μF
C11
2
10kΩ
R1, R2
1
340kΩ
R3
Show 4 more
QtyPartRefs
1
15kΩ
R4
1
200kΩ
R5
1
60.4kΩ
R6
5
140Ω
R7, R8, R9, R10, R11

Rc helicopter remote design files

The KiCad project lives in the ikajdan/rc-helicopter-remote repository on GitHub; these links point at the commit this page was built from.

Rc helicopter remote: common questions

What microcontroller does the Rc helicopter remote use?

The Rc helicopter remote is built around the STM32L4P5RET6, from the STM32 family.

How big is the Rc helicopter remote PCB?

The Rc helicopter remote measures 100 × 50 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rc helicopter remote?

43 components, from 24 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rc helicopter remote design files?

From the ikajdan/rc-helicopter-remote repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Rc helicopter remote design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which ikajdan chose for the repository.
