MicroDev128-32P
About the MicroDev128-32P PCB
MicroDev128-32P is an open source PCB design by ILikeBWRs, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 49.1 × 17.8 mm, with 31 components from 20 distinct parts.
Other key parts include the AVR128DB32-E/RXB and LT8653SEV_PBF. By type, the board carries 11 capacitors, 6 diodes, 4 resistors, 3 connectors, 2 ICs and 2 switches.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
The board specific repo of the MicroDev128-32P

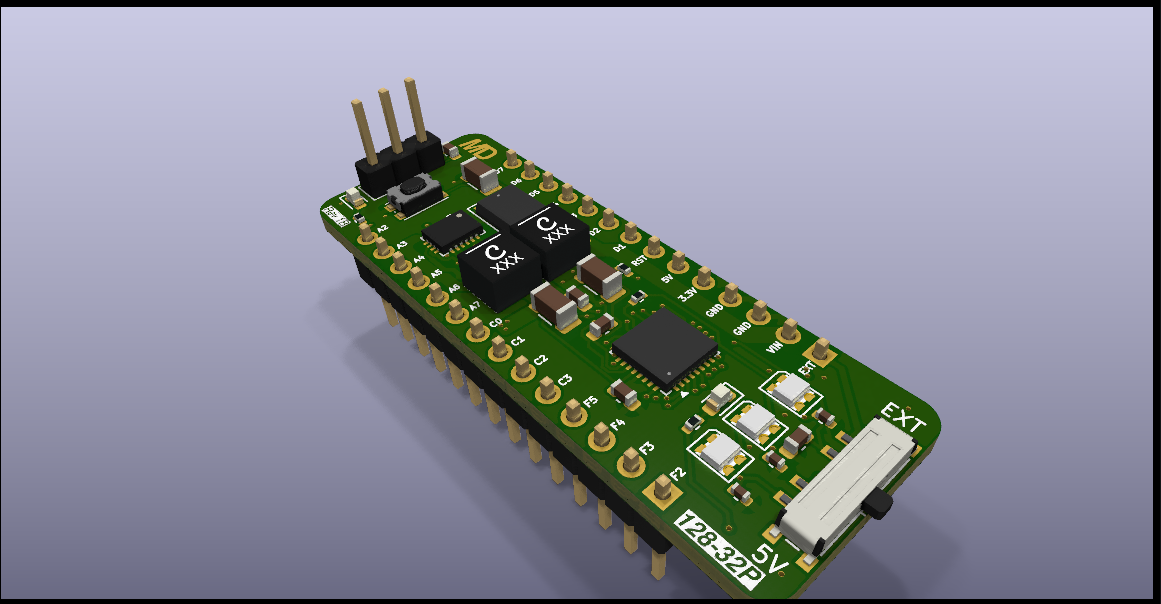

The MicroDev128-32P is open-source development board with a high-power voltage regulator with up to 2A continous, Multi-voltage IO - which allows PortC to run on a different voltage than the rest of the board - elimenating the need for voltage level shifters. The MicroDev128-32P aims to be better price to performance ratio than a tradition Arduino Nano. To view the Schematics you can go into the Kicad files folder. All files were made on KiCad 10.04 and should import without other dependencies. The 3D models are all included in the folder.
Main components on the MicroDev128-32P
MicroDev128-32P bill of materials (BOM)
31 components, 20 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AVR128DB32-E/RXB AVR128DB32x-xRXB Microchip Technology | QFN-32-1EP_5x5mm_P0.5mm_EP3.1x3.1mm | U1 |
| 1 | LT8653SEV_PBF Analog Devices | QFN-20-1EP_3x4mm_P0.5mm_EP1.65x2.65mm | U2 |
| 1 | UPDI DNP | PinHeader_1x03_P2.54mm_Vertical | J1 |
| 1 | GPIO DNP | PinHeader_1x14_P2.54mm_Vertical | J3 |
| 1 | PWR and ANALOG DNP | PinHeader_1x14_P2.54mm_Vertical | J4 |
| 1 | SF-0603F500-2 5A Bourns | Fuse_0603_1608Metric | F1 |
| 1 | PCM13SMTR SW_SP3T C&K / Littelfuse | SW_SP3T_PCM13 | SW1 |
| 1 | RST C&K / Littelfuse | SW_Push_1P1T_NO_CK_KMR2 | SW2 |
| 1 | 19-217/R6C-AL1M2VY/3T PWR Everlight | LED_0603_1608Metric | D1 |
| 1 | 19-217/R6C-AL1M2VY/3T L Everlight | LED_0603_1608Metric | D2 |
| 1 | PDS560-13 PDS560 Diodes Incorporated | D_PowerDI-5 | D3 |
| 3 | WS2812B-2020 WS2812B Worldsemi | LED_WS2812B-2020_PLCC4_2.0x2.0mm | D4, D5, D6 |
| 2 | NR4018T2R2M 2.2uH Taiyo Yuden | L_Taiyo-Yuden_NR-40xx | L1, L2 |
| 5 | CC0603KRX5R6BB105 1uf Yageo | C_0603_1608Metric | C1, C2, C3, C4, C10 |
| 1 | GRM31CC72A475KE11K 4.7uF Murata | C_1206_3216Metric | C5 |
| 1 | GRM31CR60J107ME39L 100uF Murata | C_1206_3216Metric | C6 |
| 1 | GRM31CR61A476ME15L 47uF Murata | C_1206_3216Metric | C7 |
| 3 | GRM155R71A104KA01D 0.1uF Murata | C_0402_1005Metric | C11, C12, C13 |
| 1 | RC0402FR-07330RL 330R Yageo | R_0402_1005Metric | R1 |
| 3 | RC0402FR-07330RL 330 Yageo | R_0402_1005Metric | R2, R3, R4 |
MicroDev128-32P design files
The KiCad project lives in the ILikeBWRs/MicroDev128-32P repository on GitHub; these links point at the commit this page was built from.
MicroDev128-32P: common questions
How big is the MicroDev128-32P PCB?
The MicroDev128-32P measures 49.1 × 17.8 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the MicroDev128-32P?
31 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the MicroDev128-32P design files?
From the ILikeBWRs/MicroDev128-32P repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the MicroDev128-32P design in my own project?
Yes, under the terms of its GPL-3.0 license, which ILikeBWRs chose for the repository.
