Macro Keyboard 2x4

ImSeanConroy·macro-keyboard·PCB/2x4/2x4.kicad_pcb

Macro Keyboard 2x4 PCB layout, top view — open source board by ImSeanConroy

About the Macro Keyboard 2x4 PCB

Macro Keyboard 2x4 is an open source PCB design by ImSeanConroy, published on GitHub under the MIT license. It is a 2-layer board measuring 92.2 × 40.1 mm, with 9 components from 2 distinct parts.

Other key parts include the SeeeduinoXIAO. By type, the board carries 8 switches and 1 IC.

It belongs with the keyboards, iot & wireless and displays & leds designs in this gallery.

From the project

Minimal Layout, Maximum Efficiency — A collection of macro keyboard to boost your productivity without crowding your workspace.

A collection of macro keyboards to boost your productivity without crowding your workspace.

This project is considered complete for the time being, the following outlines the current features and potential future improvements:

1. Open the Project - Open the .kicadpro file in KiCad to view the project. 2. Review the Design - Inspect the schematic and PCB layout to ensure it meets your needs. 3. Customize or Export - Make any modifications and export the Gerber files for fabrication. 4. Order the PCB - Submit the Gerber files to your preferred PCB manufacturer. 5. Get the Components -…

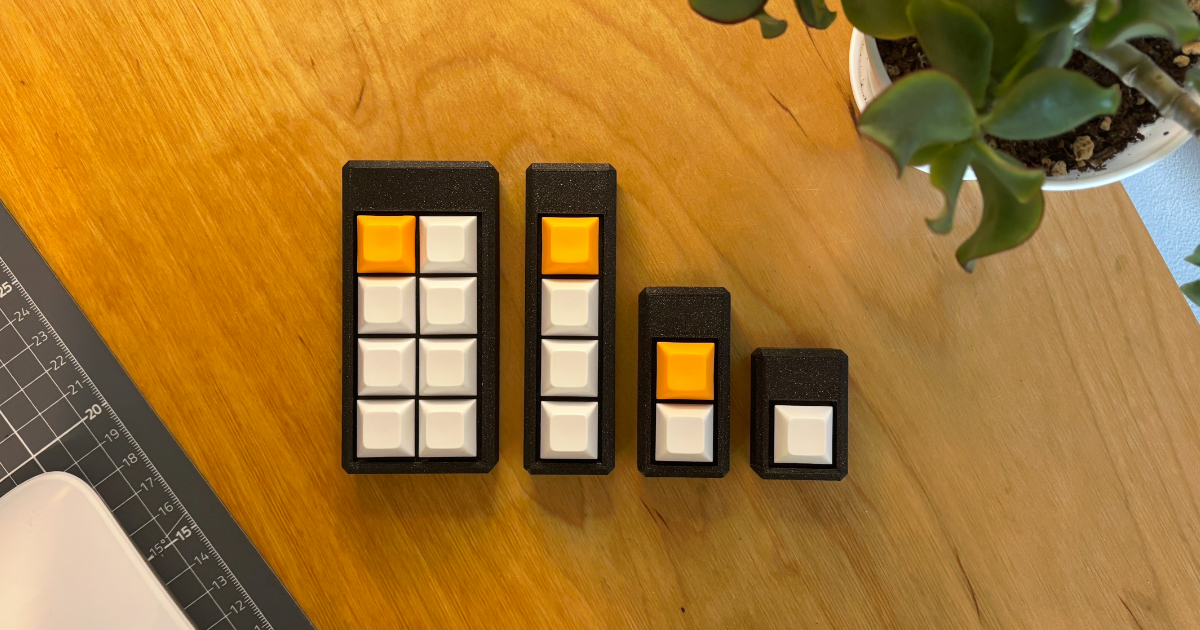

Macro Keyboard 2x4, from the project README
From the project README

Main components on the Macro Keyboard 2x4

SeeeduinoXIAO

Macro Keyboard 2x4 bill of materials (BOM)

9 components, 2 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SeeeduinoXIAO
U2
8
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8

Macro Keyboard 2x4 design files

The KiCad project lives in the ImSeanConroy/macro-keyboard repository on GitHub; these links point at the commit this page was built from.

Macro Keyboard 2x4: common questions

How big is the Macro Keyboard 2x4 PCB?

The Macro Keyboard 2x4 measures 92.2 × 40.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Macro Keyboard 2x4?

9 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Macro Keyboard 2x4 design files?

From the ImSeanConroy/macro-keyboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Macro Keyboard 2x4 design in my own project?

Yes, under the terms of its MIT license, which ImSeanConroy chose for the repository.
