SPL06

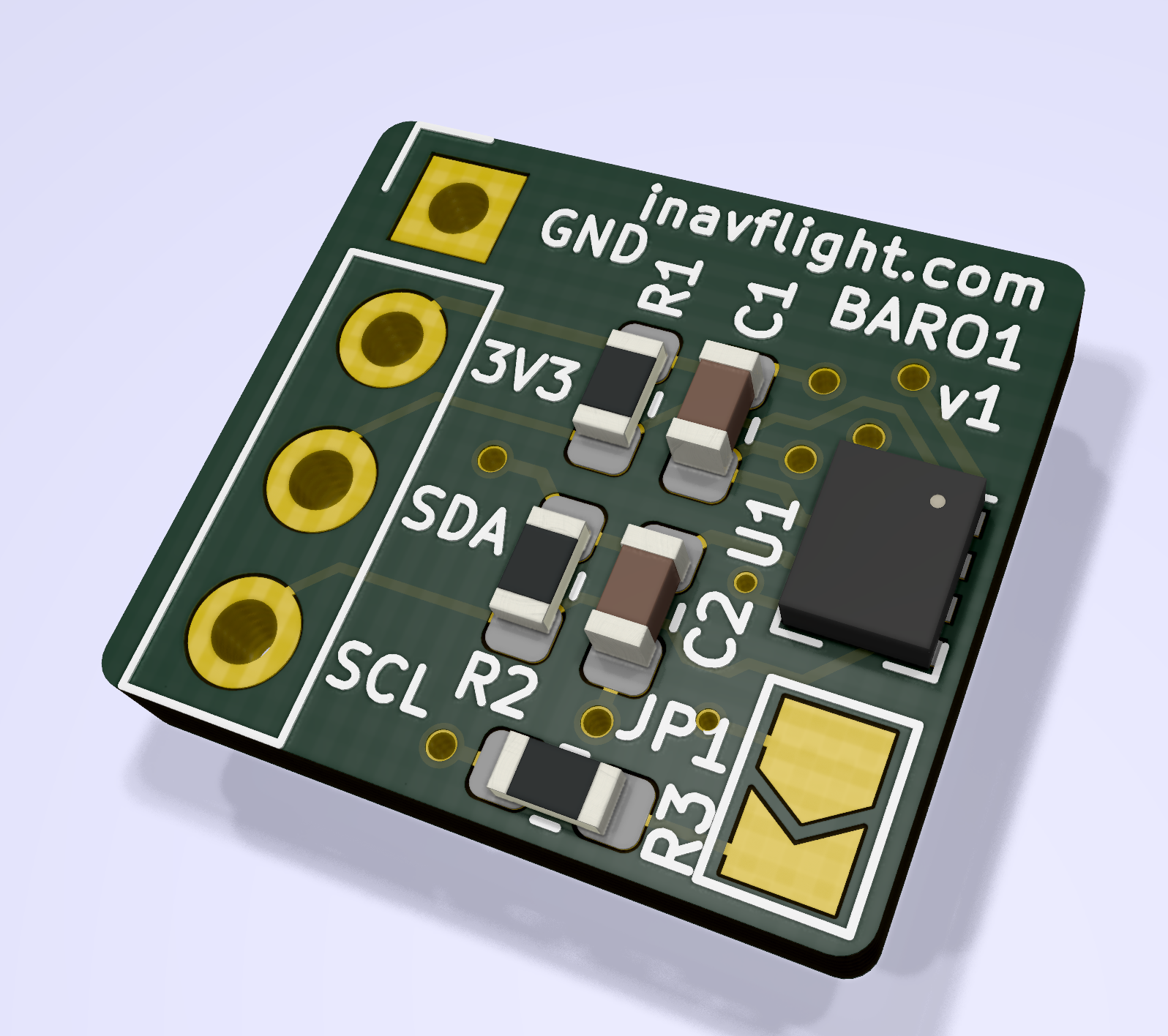

About the SPL06 PCB
SPL06 is an open source PCB design by iNavFlight, published on GitHub. It is a 2-layer board measuring 11.6 × 10.4 mm, with 7 components from 5 distinct parts.
Other key parts include the SPL06. By type, the board carries 3 resistors, 2 capacitors, 1 IC and 1 connector.
From the project
Barometer board with optional pull-ups, using an SPL06.
Barometer board with optional pull-ups, using an SPL06.
- 2x 0603 100n capacitor - 1x LGA8 SPL06-001 - 2x 0603 10k resistor (optional, skip if the I2C master has adequate pull-ups) - 1x 0603 100k resistor (optional, needed for alternative I2C addr)
Soldering the SPL06 with an iron can be tricky. Use hot air/reflow oven/hot plate instead. Passives are 0603, so easily doable with just an iron.
Main components on the SPL06
SPL06 bill of materials (BOM)
7 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SPL06 | Bosch_LGA-8_2x2.5mm_P0.65mm_ClockwisePinNumbering | U1 |
| 1 | Conn_01x04 | PinHeader_1x04_P2.54mm_Vertical | J1 |
| 2 | 100n | C_0603_1608Metric | C1, C2 |
| 2 | 10k | R_0603_1608Metric | R1, R2 |
| 1 | 100k | R_0603_1608Metric | R3 |
SPL06 design files
The KiCad project lives in the iNavFlight/hardware repository on GitHub; these links point at the commit this page was built from.
- LayoutBARO1/SPL06.kicad_pcb
SPL06: common questions
How big is the SPL06 PCB?
The SPL06 measures 11.6 × 10.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SPL06?
7 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the SPL06 design files?
From the iNavFlight/hardware repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the SPL06 design in my own project?
The repository has no license, so all rights stay with iNavFlight. Use it as a reference, and ask the author before reusing the design.
