About the 837-15330-Pico PCB
837-15330-Pico is an open source RP2040/RP2350 PCB design by Infecta, published on GitHub. It is a 2-layer board measuring 500 × 136.5 mm, with 118 components from 18 distinct parts.
Its main chip is the RP2040-Zero, from the RP2040/RP2350 family. Other key parts include the SN74LV1T34DBVR. By type, the board carries 38 capacitors, 37 resistors, 31 diodes, 5 connectors, 4 ICs and 3 switches.
From the project
Source files for a fun controller
This project aims to use the same hardware and firmware of the real ground slider for a more accurate and faithful_ recreation of CHUNITHM's ground slider input.
Why? --- It all started because I couldn't get a thick (3mm) acrylic overlay working on my original simpl-slidrr project simply due to the fact that the MPR121s perform badly on any overlay above 2mm in thickness.

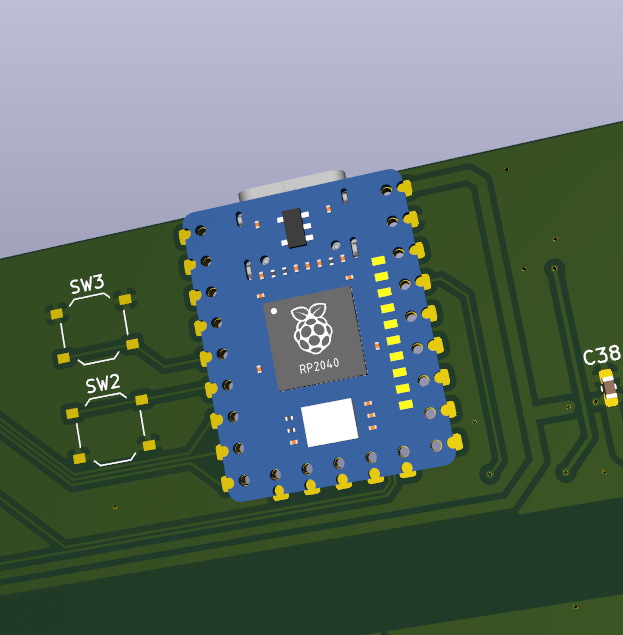

Main components on the 837-15330-Pico
837-15330-Pico bill of materials (BOM)
118 components, 18 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | ~ | SSOP-28_5.3x10.2mm_P0.65mm | U1, U2 |
| 1 | ~ | RP2040-Zero | U3 |
| 1 | SN74LV1T34DBVR | SOT-23-5 | U5 |
| 1 | ISSP U1 | JST_XH_B5B-XH-A_1x05_P2.50mm_Vertical | J1 |
| 1 | ISSP U2 | JST_XH_B5B-XH-A_1x05_P2.50mm_Vertical | J2 |
| 1 | Conn_01x32_Socket | slidrr-touchslider | J3 |
| 2 | JST-XH Series | JST_XH_S6B-XH-A_1x06_P2.50mm_Horizontal | J4, J5 |
| 1 | SW_DIP_x04 | SW_DIP_SPSTx04_Slide_9.78x12.34mm_W8.61mm_P2.54mm | SW1 |
| 2 | SW_Push | SW_Push_1P1T_XKB_TS-1187A | SW2, SW3 |
| 31 | SK6812MINI-E | LED_SK6812MINI-E_3.2x2.8mm_P1.5mm_ReverseMount | D1, D2, D3, D4, D5, D6, D7, D8 +23 |
| 2 | 4.7nF X7R | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C3 |
| 4 | X5R 4.7uF 16V | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C2, C4, C5, C6 |
| 32 | 0.1uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C7, C8, C9, C10, C11, C12, C13, C14 +24 |
| 2 | 3.2K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2 |
| 32 | R_Small | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R3, R4, R5, R6, R7, R8, R9, R10 +24 |
| 1 | 1K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R35 |
| 1 | 2K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R36 |
| 1 | 330R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R37 |
837-15330-Pico design files
The KiCad project lives in the Infecta/837-15330-Pico repository on GitHub; these links point at the commit this page was built from.
837-15330-Pico: common questions
What microcontroller does the 837-15330-Pico use?
The 837-15330-Pico is built around the RP2040-Zero, from the RP2040/RP2350 family.
How big is the 837-15330-Pico PCB?
The 837-15330-Pico measures 500 × 136.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 837-15330-Pico?
118 components, from 18 distinct parts. The full bill of materials is listed on this page.
Where can I download the 837-15330-Pico design files?
From the Infecta/837-15330-Pico repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the 837-15330-Pico design in my own project?
The repository has no license, so all rights stay with Infecta. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the 837-15330-Pico without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
