Precision-Fighting-Board
About the Precision-Fighting-Board
Precision-Fighting-Board is an open source NXP PCB design by ioridev, published on GitHub under the MIT license. It is a 2-layer board measuring 96.2 × 45.2 mm, with 8 components from 5 distinct parts.
Its main chip is the TEENSY4.0, from the NXP family. By type, the board carries 7 connectors and 1 IC.
It belongs with the dev boards & breakouts designs in this gallery.

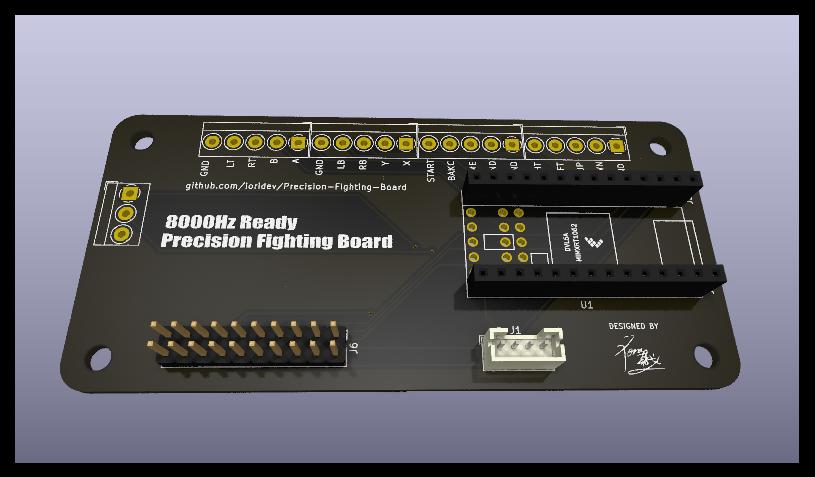

From the project
Fighting board running at 8000hz
We all need to use this board in 20XX. Discussions ## Description
This project aims to develop the fastest game controller by utilizing the power of Teensy 4.0. We strive to achieve a polling rate of 8000Hz, delivering unparalleled responsiveness for an immersive gaming experience.
- High-speed USB communication using Teensy 4.0 - Targeting an impressive 8000Hz polling rate - Precise and instantaneous input response - X-input support - No waiting time for debounce
Main components on the Precision-Fighting-Board
Precision-Fighting-Board bill of materials (BOM)
8 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TEENSY4.0 Teensy4.0 | Teensy40 | U1 |
| 1 | CONN_01X04_MALE Conn_01x04_Male | JST_PH_B4B-PH-K_1x04_P2.00mm_Vertical | J1 |
| 1 | SCREW_TERMINAL_01X03 Screw_Terminal_01x03 | TerminalBlock_MetzConnect_Type059_RT06303HBWC_1x03_P3.50mm_Horizontal | J5 |
| 1 | CONN_02X10_ODD_EVEN Conn_02x10_Odd_Even | PinHeader_2x10_P2.54mm_Vertical | J6 |
| 4 | ST01X05 ST01x05 | TerminalBlock_MetzConnect_Type059_RT06305HBWC_1x05_P3.50mm_Horizontal | J7, J8, J9, J10 |
Precision-Fighting-Board design files
The KiCad project lives in the ioridev/Precision-Fighting-Board repository on GitHub; these links point at the commit this page was built from.
Precision-Fighting-Board: common questions
What microcontroller does the Precision-Fighting-Board use?
The Precision-Fighting-Board is built around the TEENSY4.0, from the NXP family.
How big is the Precision-Fighting-Board?
The Precision-Fighting-Board measures 96.2 × 45.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Precision-Fighting-Board?
8 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Precision-Fighting-Board design files?
From the ioridev/Precision-Fighting-Board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Precision-Fighting-Board design in my own project?
Yes, under the terms of its MIT license, which ioridev chose for the repository.
Can I test firmware for the Precision-Fighting-Board without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
