Gsm iot core hw PCB layout, top view — open source STM32 board by iotmakervn

About the Gsm iot core hw PCB

Gsm iot core hw is an open source STM32 PCB design by iotmakervn, published on GitHub. It is a 2-layer board measuring 25.4 × 64.8 mm, with 92 components from 50 distinct parts.

Its main chip is the STM32F405RGTx, from the STM32 family. Other key parts include the MP2365DN, LP2985-50DBVR, MMA7660, SIM800C and SIM HOLD - PPSS-6P. By type, the board carries 33 capacitors, 33 resistors, 7 diodes, 6 ICs, 4 connectors and 2 transistors.

It belongs with the iot & wireless designs in this gallery.

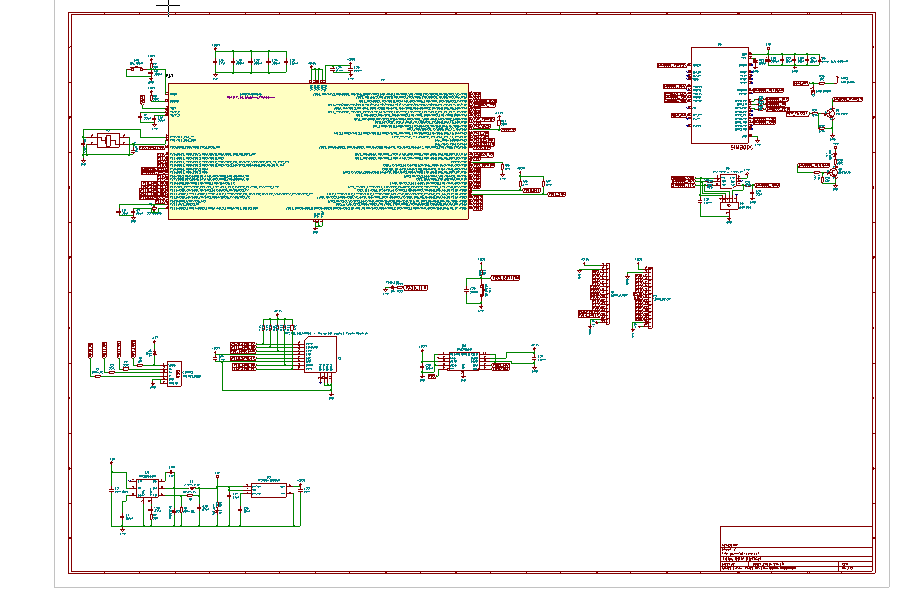

Gsm iot core hw, from the project README
From the project README

Main components on the Gsm iot core hw

MP2365DNLP2985-50DBVRSTM32F405RGTxMMA7660SIM800CSIM HOLD - PPSS-6P

Gsm iot core hw bill of materials (BOM)

92 components, 50 distinct parts.

QtyPartRefs
1
MP2365DN
U1
1
LP2985-50DBVR
U2
1
STM32F405RGTx
U3
1
MMA7660
U4
1
SIM800C
U5
1
SIM HOLD - PPSS-6P
U6
2
2SC1815
Q1, Q2
1
CRYSTAL-24M
X1
1
32.768MHz
Y1
1
MICRO_SD_HINGE - Micro SD socket Push-Push A
J1
2
CONN_01X17
P1, P2
1
Chip anten
P3
1
ANTENNA
ANT1
1
MICRO_USB
CONN1
2
SW_PUSH
SW1, SW2
1
SS34
D1
1
MBRS340
D2
1
Led_pwr
D3
1
PA15_LED
D4
1
SMF05C
D5
Show 30 more
QtyPartRefs
1
zener 5.1v/500mW
D6
1
Led_SIM
D7
1
4.7uH-2.2A
L1
3
10pF
C1, C6, C34
1
10uF/35V
C2
2
15pF
C3, C7
1
0.1uF
C4
2
2.2uF
C8, C11
10
100nF
C9, C18, C19, C20, C21, C23, C25, C26 +2
1
4.7nF
C10
2
10nF
C12, C15
1
47uF
C13
3
4.7uF
C14, C16, C24
3
10uF
C17, C22, C32
1
22pF
C29
2
100uF
C30, C31
1
33pF
C33
1
DNF-1K
R1
5
22R
R2, R3, R18, R19, R20
4
1K
R4, R21, R22, R23
6
10k
R5, R6, R10, R13, R15, R29
1
20k
R7
1
10k-1%
R8
1
33,6k-1%
R9
5
47K
R11, R30, R31, R32, R33
1
560R
R12
1
100k
R14
4
4.7k
R16, R17, R24, R27
2
4k7
R25, R28
1
0R
R26

Gsm iot core hw design files

The KiCad project lives in the iotmakervn/gsm-iot-core-hw repository on GitHub; these links point at the commit this page was built from.

Gsm iot core hw: common questions

What microcontroller does the Gsm iot core hw use?

The Gsm iot core hw is built around the STM32F405RGTx, from the STM32 family.

How big is the Gsm iot core hw PCB?

The Gsm iot core hw measures 25.4 × 64.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Gsm iot core hw?

92 components, from 50 distinct parts. The full bill of materials is listed on this page.

Where can I download the Gsm iot core hw design files?

From the iotmakervn/gsm-iot-core-hw repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Gsm iot core hw design in my own project?

The repository has no license, so all rights stay with iotmakervn. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Gsm iot core hw without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
