Obiwanstenobit PCB layout, top view — open source AVR/Arduino board by ivndbt

About the Obiwanstenobit PCB

Obiwanstenobit is an open source AVR/Arduino PCB design by ivndbt, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 93.8 × 98.5 mm, with 51 components from 12 distinct parts.

Its main chip is the ProMicro, from the AVR/Arduino family. By type, the board carries 18 connectors, 15 diodes, 1 IC and 1 switch.

It belongs with the keyboards designs in this gallery.

From the project

Open-source steno keyboard.

Open-source steno keyboard with a pseudo-split layout, designed to be compact, portable, and cost-effective.

- Overview - Features - Repository structure - Hardware - PCB - Case - Firmware - Build guide - Extra files - License - Sponsors - References

ObiWanStenobit (OWS) is a 30-key, steno-oriented mechanical keyboard designed with the primary goals of low manufacturing cost and ease of transport.

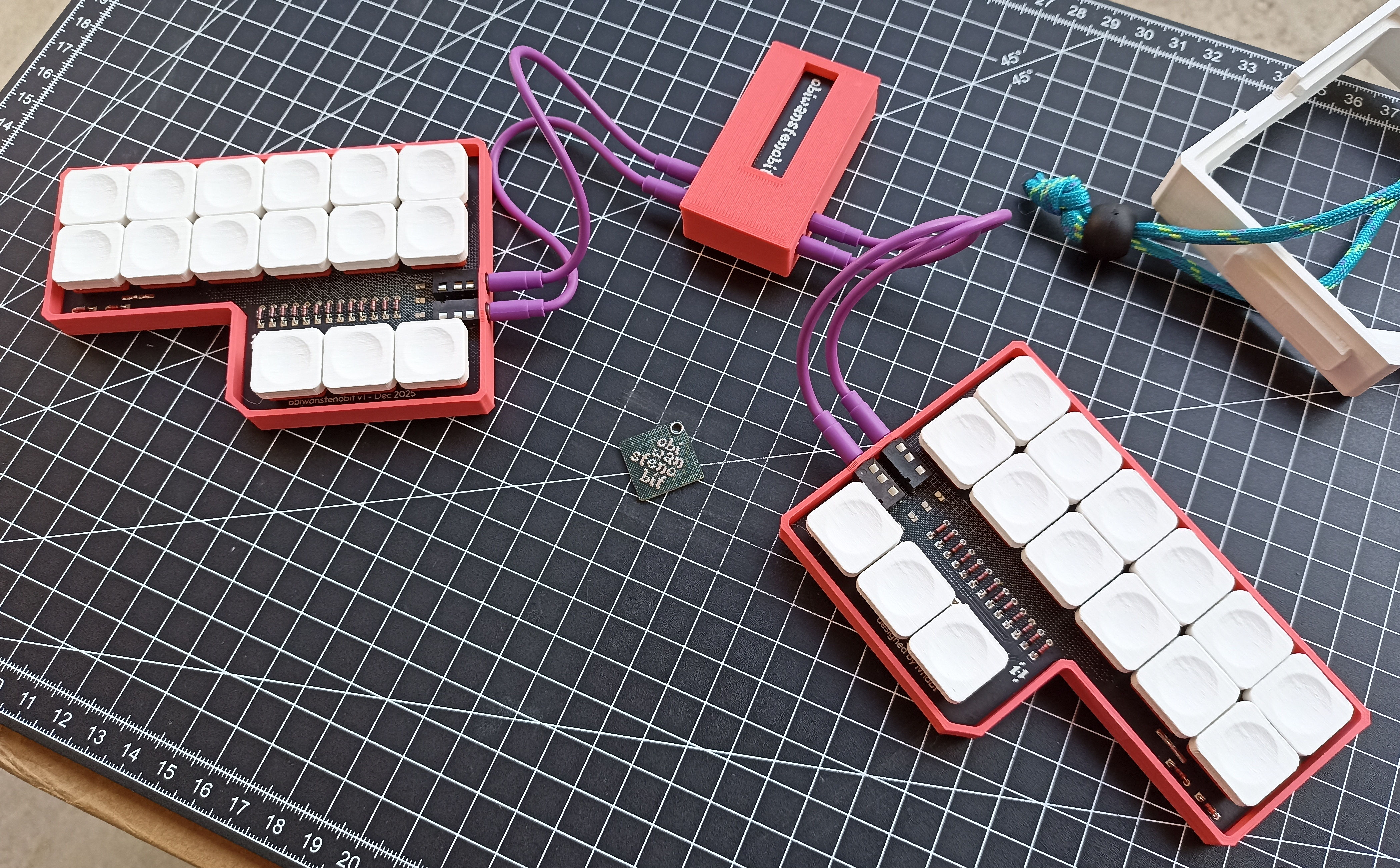

Obiwanstenobit, from the project README
From the project README

Main components on the Obiwanstenobit

ProMicro

Obiwanstenobit bill of materials (BOM)

51 components, 12 distinct parts.

QtyPartRefs
1
ProMicro
U1
12
Conn_01x01
J1, J2, J3, J4, J5, J6, J7, J8 +4
1
RIGHT1
J13
1
RIGHT2
J14
1
LEFT1
J15
1
LEFT2
J16
1
KEEB1
J17
1
KEEB2
J18
15
MX-NoLED
MX1, MX2, MX3, MX4, MX5, MX6, MX7, MX8 +7
1
RST
SW1
1
VAL**
mouse-bite-2.54mm-slot
15
D
D1, D2, D3, D4, D5, D6, D7, D8 +7

Obiwanstenobit design files

The KiCad project lives in the ivndbt/obiwanstenobit repository on GitHub; these links point at the commit this page was built from.

Obiwanstenobit: common questions

What microcontroller does the Obiwanstenobit use?

The Obiwanstenobit is built around the ProMicro, from the AVR/Arduino family.

How big is the Obiwanstenobit PCB?

The Obiwanstenobit measures 93.8 × 98.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Obiwanstenobit?

51 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Obiwanstenobit design files?

From the ivndbt/obiwanstenobit repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Obiwanstenobit design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which ivndbt chose for the repository.

Can I test firmware for the Obiwanstenobit without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
