HW-RAK3172-EaseBoard
About the HW-RAK3172-EaseBoard PCB
HW-RAK3172-EaseBoard is an open source PCB design by J-Rios, published on GitHub. It is a 2-layer board measuring 50 × 60 mm, with 46 components from 27 distinct parts.
Other key parts include the RAK3172, FT232RL and SPX3819. By type, the board carries 20 resistors, 8 capacitors, 3 ICs, 3 switches, 2 connectors and 2 LEDs.
From the project

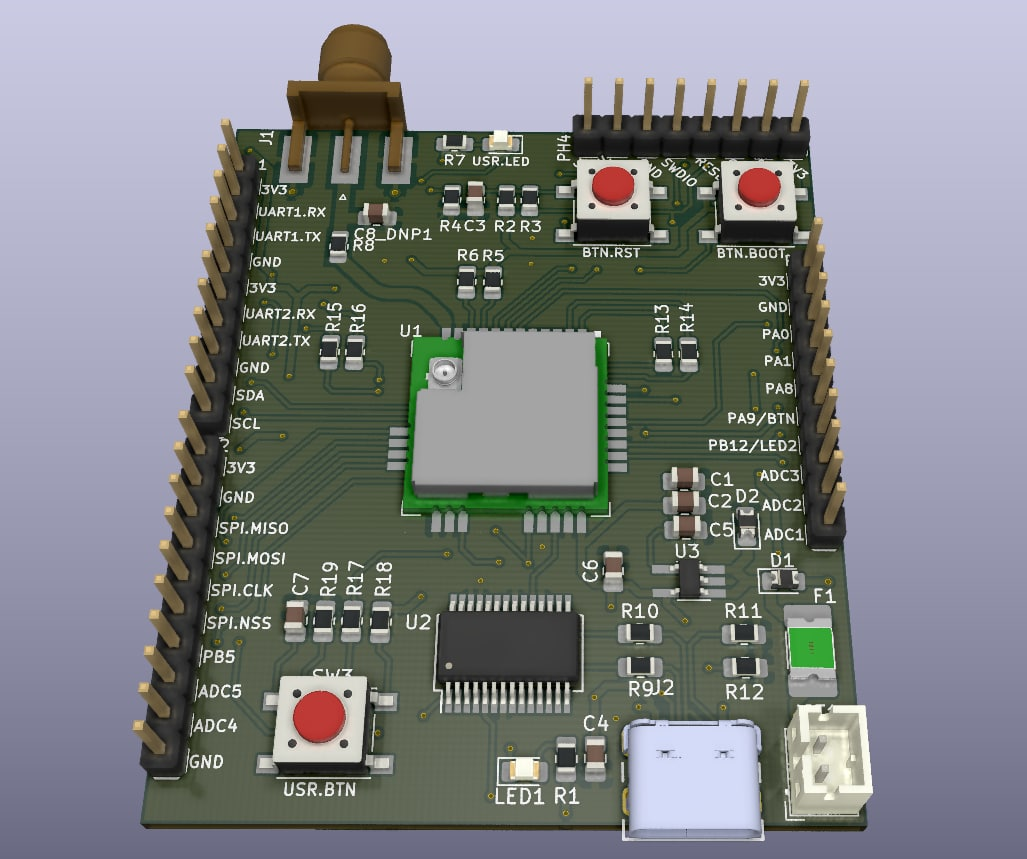

RAK3172 SoM board KiCAD design to ease evaluation and development of this LoRaWAN module based on STM32WL5 SoC
RAK3172 SoM board KiCAD design to ease evaluation and development of this LoRaWAN module based on STM32WL5 SoC.
Main components on the HW-RAK3172-EaseBoard
HW-RAK3172-EaseBoard bill of materials (BOM)
46 components, 27 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RAK3172 | RAK3172 | U1 |
| 1 | FT232RL | SSOP-28_5.3x10.2mm_P0.65mm | U2 |
| 1 | SPX3819 | TSOT-23-5_HandSoldering | U3 |
| 1 | ~ Conn_Coaxial | SMA_Molex_73251-1153_EdgeMount_Horizontal | J1 |
| 1 | USB_C_Receptacle_Simply GCT | USB_C_Receptacle_12 | J2 |
| 1 | Fuse 2A/16V | Fuse_1812_4532Metric_Pad1.30x3.40mm_HandSolder | F1 |
| 1 | JST_1X2 JST_1x2 | JST_PH_B2B-PH-K_1x02_P2.00mm_Vertical | JST1 |
| 3 | PH_1X10 PH_1x10 | PinHeader_1x10 | PH1, PH2, PH3 |
| 1 | PH_1X8 PH_1x8 | PinHeader_1x8 | PH4 |
| 3 | SW_Push | SW_Push_1P1T_NO_6x6mm_H9.5mm | SW1, SW2, SW3 |
| 2 | LED | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | LED1, LED2 |
| 1 | D | D_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D1 |
| 1 | D_Schottky | D_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D2 |
| 1 | 10UF 10uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1 |
| 2 | 100NF 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C2, C3 |
| 2 | 1UF 1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C4, C6 |
| 1 | 10NF 10nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C5 |
| 1 | 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C7 |
| 1 | DNP | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C8_DNP1 |
| 2 | 1K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R7 |
Show 7 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 10K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2 |
| 2 | 100 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3, R4 |
| 4 | 5K1 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R5, R6, R11, R12 |
| 1 | 0 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R8 |
| 6 | 22 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R9, R10, R13, R14, R15, R16 |
| 2 | 100 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R17, R19 |
| 2 | 10K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R18, R20 |
HW-RAK3172-EaseBoard design files
The KiCad project lives in the J-Rios/HW-RAK3172-EaseBoard repository on GitHub; these links point at the commit this page was built from.
HW-RAK3172-EaseBoard: common questions
How big is the HW-RAK3172-EaseBoard PCB?
The HW-RAK3172-EaseBoard measures 50 × 60 mm, has 2 copper layers and is 1.6002 mm thick.
How many components are on the HW-RAK3172-EaseBoard?
46 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the HW-RAK3172-EaseBoard design files?
From the J-Rios/HW-RAK3172-EaseBoard repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the HW-RAK3172-EaseBoard design in my own project?
The repository has no license, so all rights stay with J-Rios. Use it as a reference, and ask the author before reusing the design.
