Flying Fader

jackr-m·Flying_Fader·CAD/Flying_Fader.kicad_pcb

Flying Fader PCB layout, top view — open source STM32 board by jackr-m

About the Flying Fader PCB

Flying Fader is an open source STM32 PCB design by jackr-m, published on GitHub. It is a 2-layer board measuring 100 × 130 mm, with 89 components from 37 distinct parts.

Its main chip is the STM32H7A3VITX, from the STM32 family. Other key parts include the MIC5504-3.3YM5, MP6550GG-Z, AT42QT1070-S and TPS61169DCKR. By type, the board carries 30 capacitors, 30 resistors, 9 ICs, 7 connectors, 3 switches and 2 crystals.

It belongs with the audio designs in this gallery.

From the project

Use Flying Faders to create a MIDI control panel

- Flying Faders Use Rust Embassy framework to integrate 5 "flying faders" (motorized linear slide potentiometers) as a USB MIDI CC controller Project Overview + Code + Mechanical

Faders: https://www.adafruit.com/product/5466

Screen: https://www.adafruit.com/product/5805

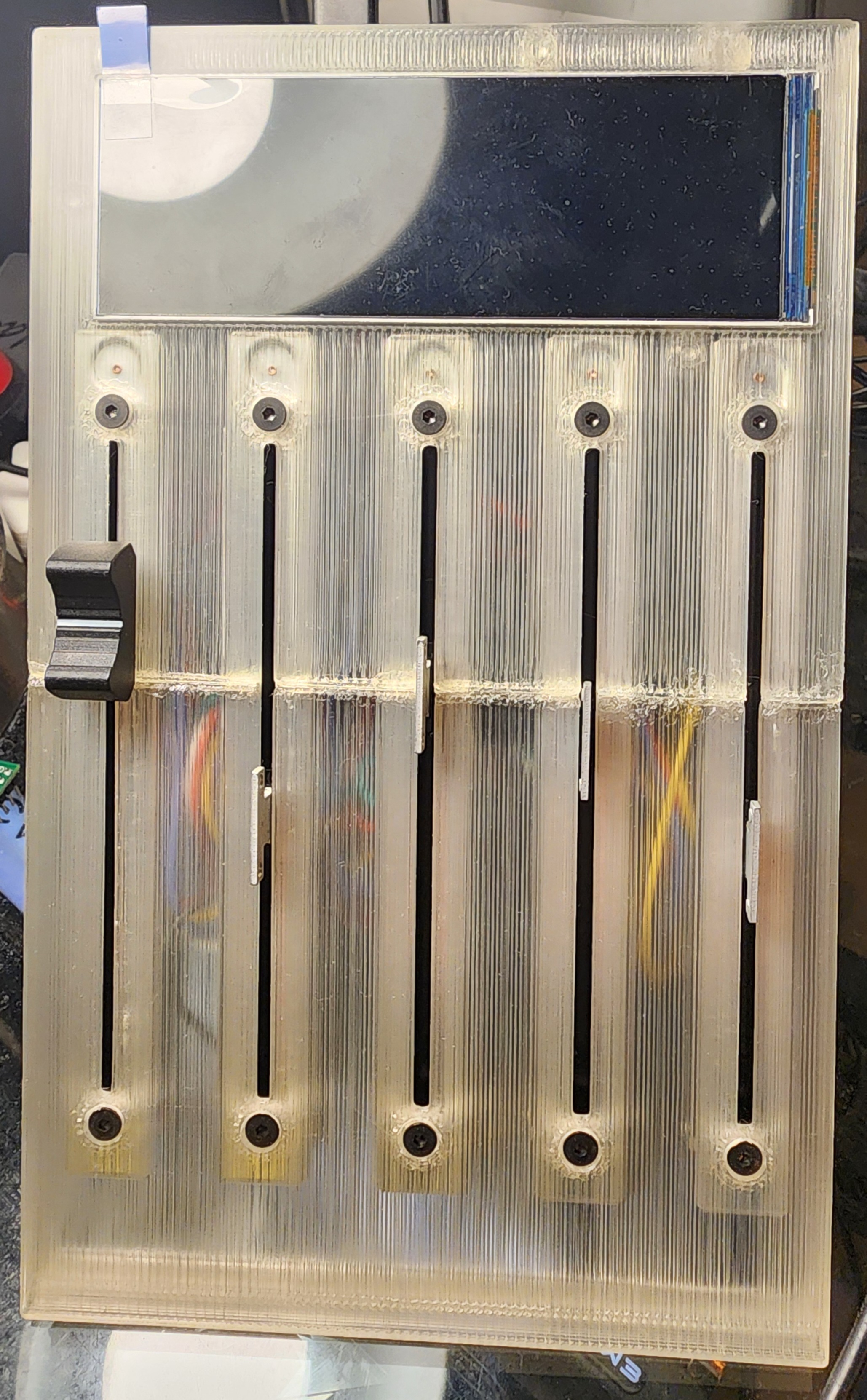

Flying Fader, from the project README
From the project README

Main components on the Flying Fader

STM32H7A3VITXMIC5504-3.3YM5MP6550GG-ZAT42QT1070-STPS61169DCKR

Flying Fader bill of materials (BOM)

89 components, 37 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32H7A3VITX
STM32H7A3VITx
U1
1
MIC5504-3.3YM5
U2
5
MP6550GG-Z
U3, U4, U5, U6, U7
1
AT42QT1070-S
U8
1
TPS61169DCKR
U9
1
50MHZ
50MHz
Y1
1
32.768KHZ
32.768kHz
Y2
1
CONN_ARM_JTAG_SWD_10
Conn_ARM_JTAG_SWD_10
J1
1
40P_FPC_0.5MM
40P_FPC_0.5mm
J2
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J3
1
Barrel_Jack
J4
1
CONN_02X05_ODD_EVEN
Conn_02x05_Odd_Even
J5
1
CONN_01X04_PIN
Conn_01x04_Pin
J6
1
UART4
J7
1
SW_SPDT
SW1
1
RESET
SW2
1
BOOT0
SW3
5
SM10002NKA1X-HW1
VR1, VR2, VR3, VR4, VR5
1
MBR0540
D1
1
10UH
10uH
FB1
Show 17 more
QtyPartRefs
1
6.8U
6.8u
L1
4
C_Small
C1, C2, C3, C4
4
1u
C5, C6, C25, C26
2
2.2U
2.2u
C7, C8
8
0.1U
0.1u
C9, C12, C14, C16, C18, C27, C28, C30
5
0.47U
0.47u
C10, C11, C13, C15, C17
5
0.1N
0.1n
C19, C20, C21, C22, C23
2
10U
10u
C24, C29
13
10K
10k
R1, R3, R4, R5, R15, R16, R17, R18 +5
1
100
R2
2
5.1K
5.1k
R6, R7
2
0
R8, R9
5
6.8K
6.8k
R10, R11, R12, R13, R14
2
8.2
R21, R22
1
4.3
R23
1
2
R24
3
4.7K
4.7k
R28, R29, R30

Flying Fader design files

The KiCad project lives in the jackr-m/Flying_Fader repository on GitHub; these links point at the commit this page was built from.

Flying Fader: common questions

What microcontroller does the Flying Fader use?

The Flying Fader is built around the STM32H7A3VITX, from the STM32 family.

How big is the Flying Fader PCB?

The Flying Fader measures 100 × 130 mm, has 2 copper layers and is 1.600198 mm thick.

How many components are on the Flying Fader?

89 components, from 37 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Flying Fader design files?

From the jackr-m/Flying_Fader repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Flying Fader design in my own project?

The repository has no license, so all rights stay with jackr-m. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Flying Fader without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
