Trugbild PCB layout, top view — open source FPGA board by JakubKajzer

About the Trugbild PCB

Trugbild is an open source FPGA PCB design by JakubKajzer, published on GitHub. It is a 4-layer board measuring 85 × 40 mm, with 90 components from 19 distinct parts.

Its main chip is the XC3S50A-4VQG100C, from the FPGA family. Other key parts include the AS4C32M8SA-6TIN, MIC5365-3.3YD5, LDK130PU12R_DFN6 and MX25L1636EM2I-08G. By type, the board carries 30 diodes, 29 capacitors, 14 resistors, 7 inductors, 5 ICs and 4 connectors.

From the project

An FPGA working in serial with HDMI, for some real live video modifications

- Xilinx Spartan 3 XC3S50A - 2MB Flash memory - 32MB DRAM memory - Possibility to power device only from HDMI or from external input

- [x] Order PCB fabrication - [ ] Order elements - [ ] Solder everything - [ ] First run - [ ] Try to run device only with power from HDMI (max. 50mA@5V) - [ ] Make and test if device can transmit HDMI at Full HD - [ ] Make some video modification while transmitting - [ ] Try to add some kind of neuron network to face recognition - [ ] Try to cover detected faces with some picture or someone face :) ## Comments ### Make PCB This point took me many hours of…

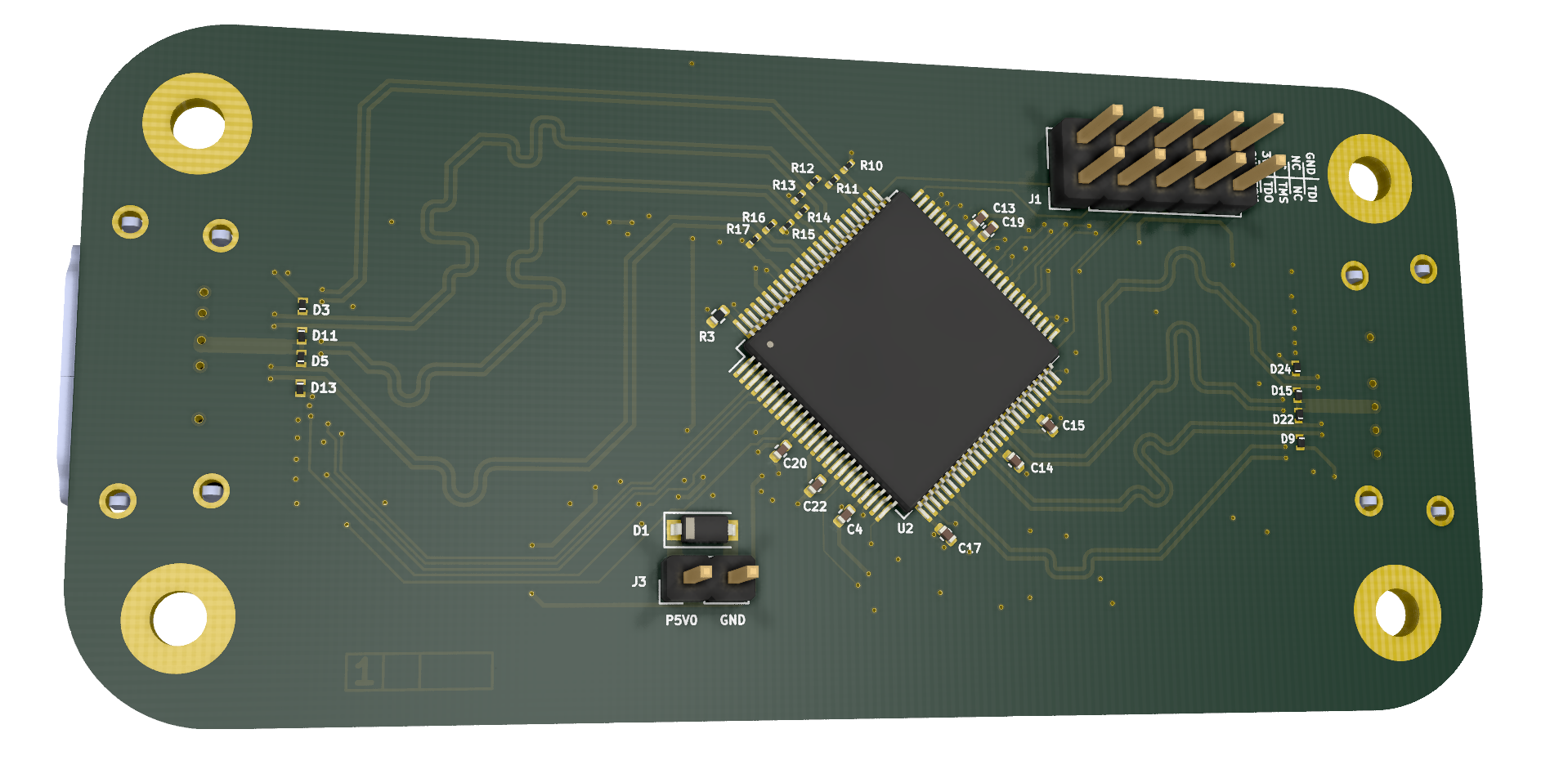

Trugbild, from the project README
From the project README

Main components on the Trugbild

AS4C32M8SA-6TINXC3S50A-4VQG100CMIC5365-3.3YD5LDK130PU12R_DFN6MX25L1636EM2I-08G

Trugbild bill of materials (BOM)

90 components, 19 distinct parts.

QtyPartRefs
1
AS4C32M8SA-6TIN
U1
1
XC3S50A-4VQG100C
U2
1
MIC5365-3.3YD5
U3
1
LDK130PU12R_DFN6
U4
1
MX25L1636EM2I-08G
U5
1
EC5645ETTS-50.000M
X1
1
Conn_02x05_Odd_Even
J1
2
HDMI_A
J2, J4
1
Conn_01x02
J3
1
BAT46
D1
28
AOZ8831DI-05
D2, D3, D4, D5, D6, D7, D8, D9 +20
1
LED
D30
7
Ferrite_Bead_Small
FB1, FB2, FB8, FB9, FB10, FB11, FB12
6
100uF
C1, C24, C25, C26, C28, C29
23
100nF
C2, C4, C5, C7, C9, C11, C13, C14 +15
3
DNP
R1, R2, R3
2
10k
R4, R18
8
49R9
R10, R11, R12, R13, R14, R15, R16, R17
1
1k
R19

Trugbild design files

The KiCad project lives in the JakubKajzer/Trugbild repository on GitHub; these links point at the commit this page was built from.

Trugbild: common questions

What microcontroller does the Trugbild use?

The Trugbild is built around the XC3S50A-4VQG100C, from the FPGA family.

How big is the Trugbild PCB?

The Trugbild measures 85 × 40 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Trugbild?

90 components, from 19 distinct parts. The full bill of materials is listed on this page.

Where can I download the Trugbild design files?

From the JakubKajzer/Trugbild repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Trugbild design in my own project?

The repository has no license, so all rights stay with JakubKajzer. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Trugbild without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
