About the CH330 Hardware PCB
CH330 Hardware is an open source PCB design by Jana-Marie, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 10 × 10 mm, with 9 components from 6 distinct parts.
Other key parts include the CH330. By type, the board carries 2 connectors, 2 diodes, 2 capacitors, 2 resistors and 1 IC.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
CH330 breakout board
I created this board because I wanted to play with the CH330N because it was supposed to be a crystal-less, <$0.35 USB UART converter in a SOIC-8 package. Since these chips were available from LCSC, I created a quick design and ordered both together.

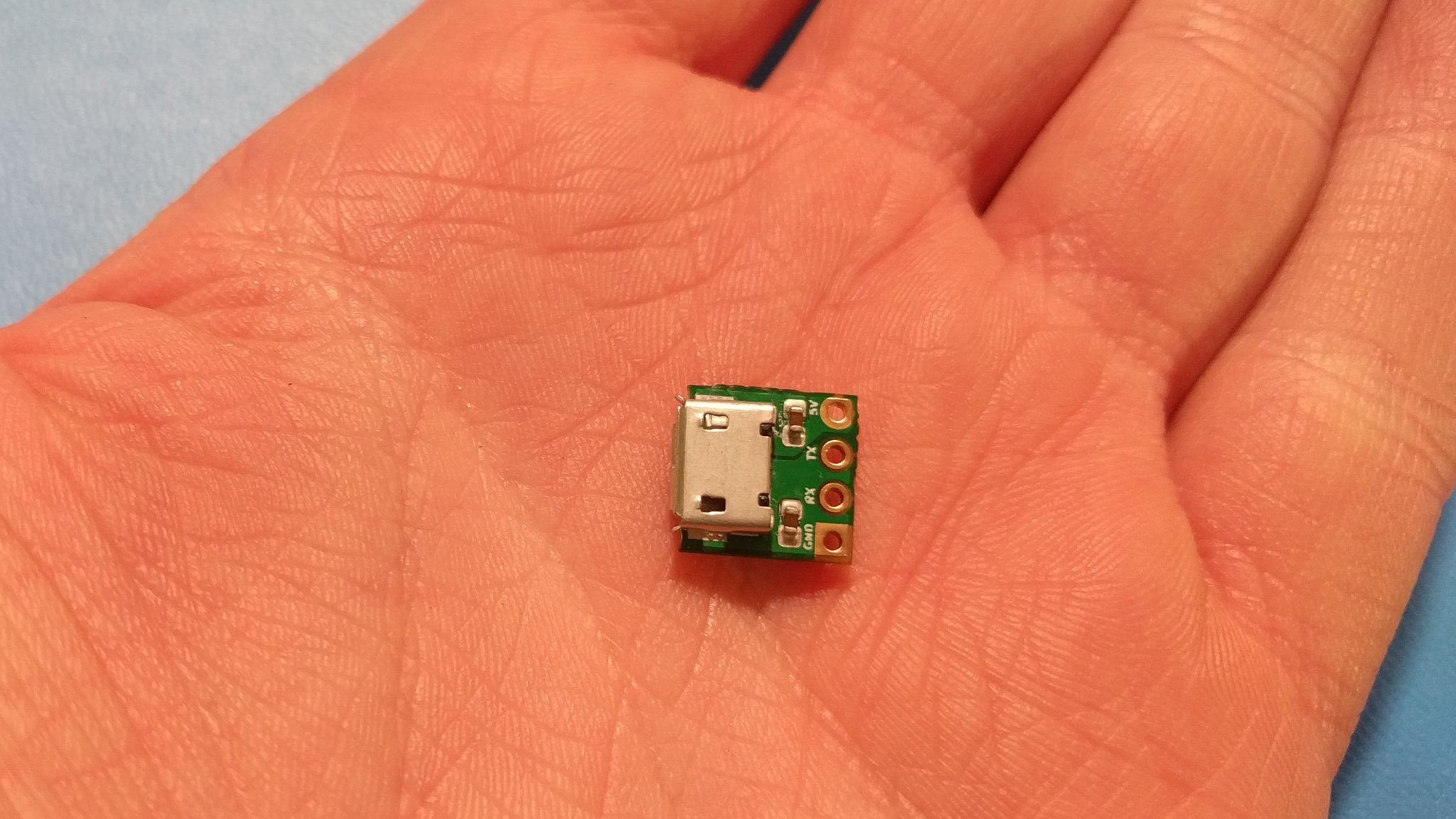

As the IC is very small (other USB UART converters are packed in at least a QFN or SOIC-16), I didn't want the board to get much bigger. Accordingly, I developed this 10*10mm USB UART converter board with the CH330N and micro-USB. The assembly is quite fiddly, I suggest that you reflow the USB port and then solder the CH330N (and the LEDs) by…

Main components on the CH330 Hardware
CH330 Hardware bill of materials (BOM)
9 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CH330 | SOIC-8_3.9x4.9mm_P1.27mm | U1 |
| 1 | A97800 USB_B_Micro | USB_Micro-B_Molex_47346-0001 | J1 |
| 1 | WM2746 Conn_01x04_Female | PinHeader_1x04_P2.54mm_Vertica_WITHOUT_SILK | J2 |
| 2 | 19-217/BHC-ZL1M2RY/3T LED Everlight | LED_0603_1608Metric | D1, D2 |
| 2 | 06035G104ZAT2A 100n AVX | C_0603_1608Metric | C1, C2 |
| 2 | P220BY 220 | R_0603_1608Metric | R1, R2 |
CH330 Hardware design files
The KiCad project lives in the Jana-Marie/CH330_Hardware repository on GitHub; these links point at the commit this page was built from.
- LayoutCH330.kicad_pcb
- BOMbom.csv
CH330 Hardware: common questions
How big is the CH330 Hardware PCB?
The CH330 Hardware measures 10 × 10 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the CH330 Hardware?
9 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the CH330 Hardware design files?
From the Jana-Marie/CH330_Hardware repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the CH330 Hardware design in my own project?
Yes, under the terms of its GPL-3.0 license, which Jana-Marie chose for the repository.
