Blind tc

Jana-Marie·temperature-logger·blind_tc/blind_tc.kicad_pcb

Blind tc PCB layout, top view — open source board by Jana-Marie
Simulate this board

About the Blind tc PCB

Blind tc is an open source PCB design by Jana-Marie, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 106 × 50 mm, with 4 components from 1 distinct parts.

It belongs with the sensors and test & measurement designs in this gallery.

From the project

Anotter USB temperature logger that can record up to four channels with thermocouple or NTCs connected via CDC directly or SCPI to USB.

Anotter USB temperature logger that can record up to four channels with thermocouple or NTCs connected via CDC directly or SCPI to USB. You can choose how you want to receive the data by moving the selector switch next to the Type-C receptacle. If you switch to CSV, it will simply output all connected channels to your console in a machine and human readable format (CSV or TSV, I prefer TSV) at about 10 readings per second. If you switch to SCPI, an SCPI terminal is displayed via USB so that you can integrate the logger into your lab equipment. This is particularly handy because you can also…

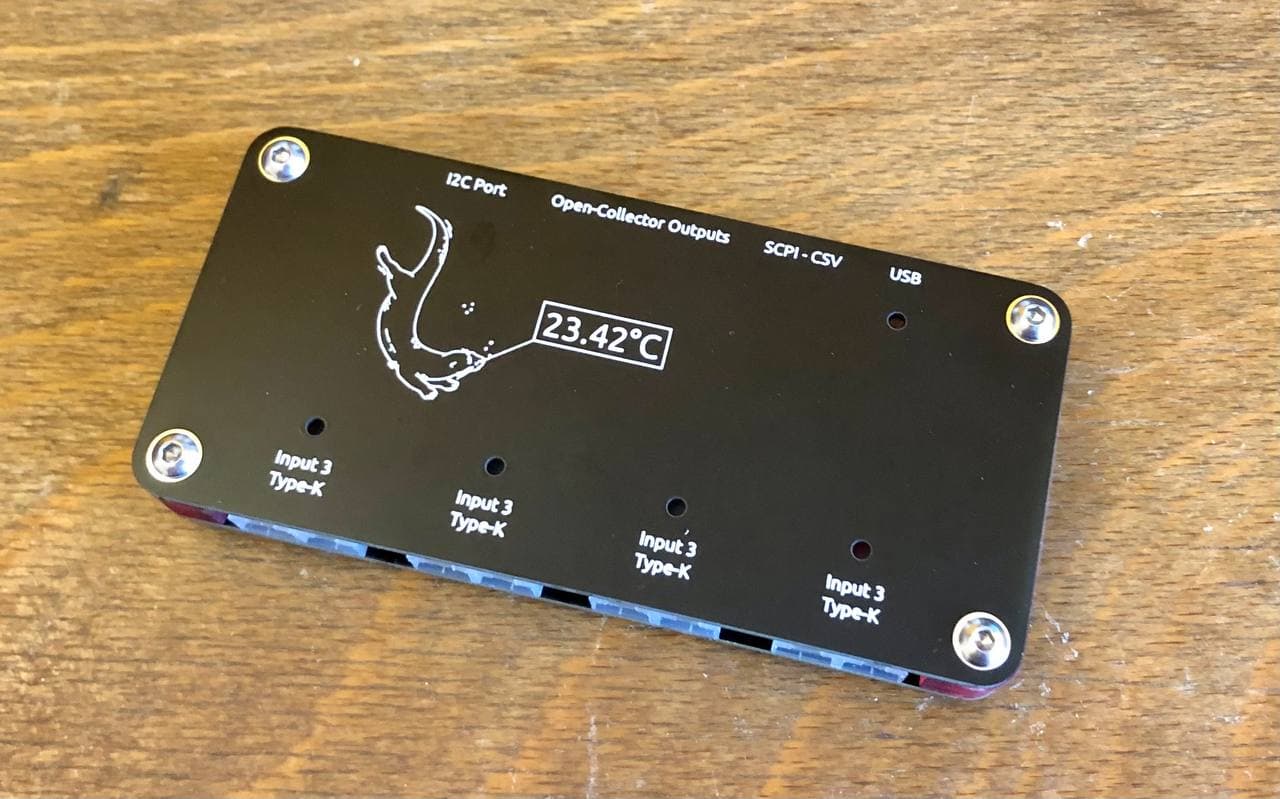

Blind tc, from the project README
From the project README

Blind tc bill of materials (BOM)

4 components, 1 distinct parts — part numbers from the project's BOM.

QtyPartRefs
4
MountingHole_Pad
H1, H2, H3, H4

Blind tc design files

The KiCad project lives in the Jana-Marie/temperature-logger repository on GitHub; these links point at the commit this page was built from.

Blind tc: common questions

How big is the Blind tc PCB?

The Blind tc measures 106 × 50 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Blind tc?

4 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Blind tc design files?

From the Jana-Marie/temperature-logger repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Blind tc design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which Jana-Marie chose for the repository.
