Backlight controller 6x3

janelia-kicad·backlight_controller_6x3

Backlight controller 6x3 PCB layout, top view — open source NXP board by janelia-kicad

About the Backlight controller 6x3 PCB

Backlight controller 6x3 is an open source NXP PCB design by janelia-kicad, published on GitHub under the Custom license license. It is a 2-layer board measuring 140.3 × 67.3 mm, with 87 components from 19 distinct parts.

Its main chip is the DEV-14056, from the NXP family. Other key parts include the SN74ABT541BDWR, NUD3124LT1G and MAX6817EUT+T. By type, the board carries 26 resistors, 17 diodes, 12 ICs, 11 connectors, 9 capacitors and 2 switches.

From the project

This standalone board controls up to four Smart Vision backlights with IR and visible channels plus additional high and low power channel outputs.

- Repository Information - Description - Images - Schematic - Gerbers - Bill of Materials - PCB Parts - Supplemental Parts - Vendor Parts Lists - Supplemental Documentation - Assembly Instructions - Manufacturing Archive

- Name: backlight\controller\6x3 - Version: 1.0 - License: Open-Source Hardware - URL: - Author: Peter Polidoro - Email: peter@polidoro.io

This board controls up to four Smart Vision backlights with IR and visible channels plus additional high and low power channel outputs.

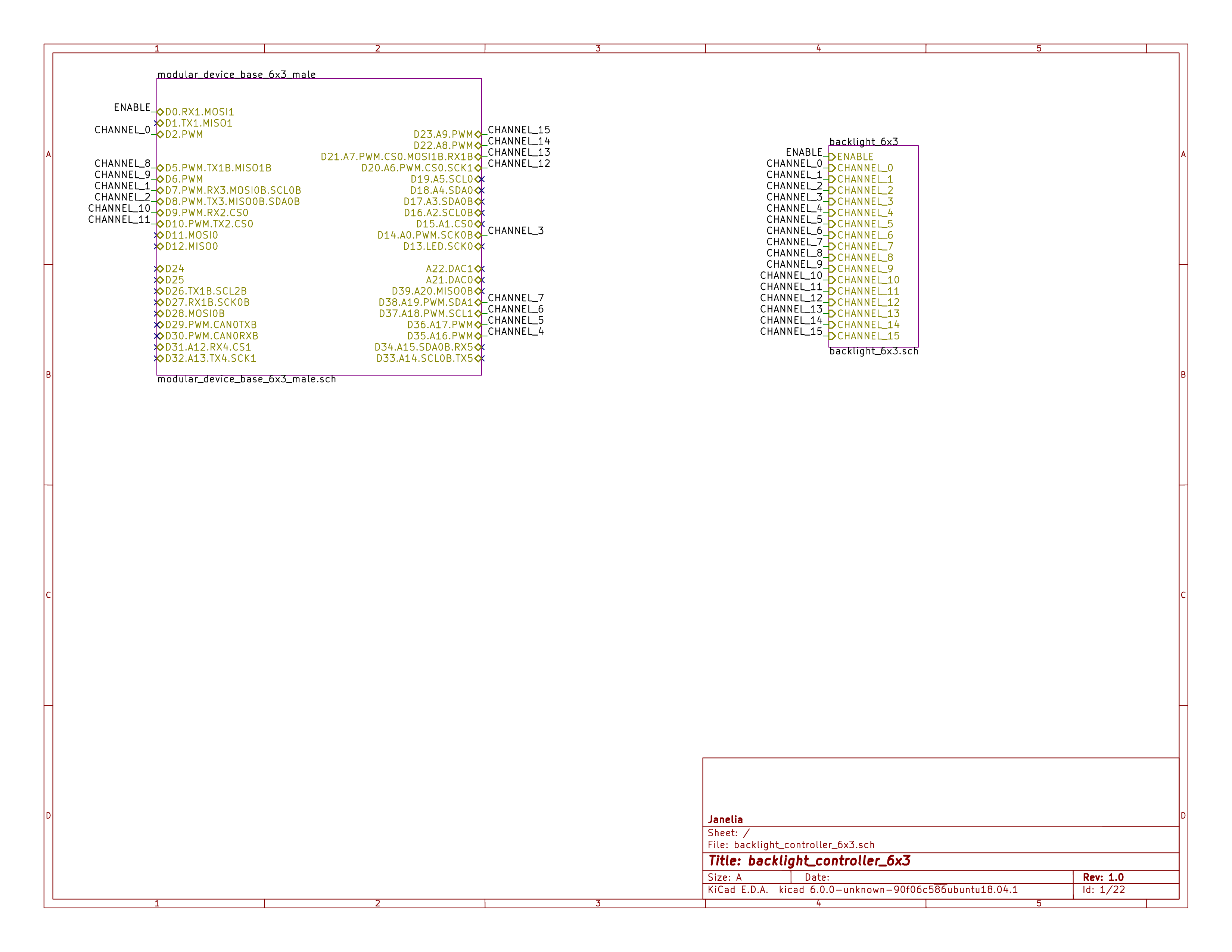

Backlight controller 6x3, from the project README
From the project README

Main components on the Backlight controller 6x3

SN74ABT541BDWRNUD3124LT1GMAX6817EUT+T

Backlight controller 6x3 bill of materials (BOM)

87 components, 19 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
SN74ABT541BDWR
Texas Instruments
U1, U2
9
NUD3124LT1G
NUD3124
ON Semiconductor
U3, U4, U5, U6, U7, U8, U9, U10 +1
1
MAX6817EUT+T
VAL**
Maxim Integrated
U12
1
09551156612741
DB9F
HARTING
J1
1
09551296812741
DB9M
HARTING
J2
8
1411976
M12-5-RCPT
Phoenix Contact
J3, J4, J5, J6, J7, J8, J9, J10
1
0039301060
MINI_FIT
Molex
P1
4
BTS3256DAUMA1
BTS3256
Infineon Technologies
HPS1, HPS2, HPS3, HPS4
4
MOUNTING_HOLE_4-40
MH1, MH2, MH3, MH4
1
R-78C5.0-1.0
CONV_DC_DC_5V_1A
Recom Power
REG1
2
KT11P4SM34LFS
VAL**
C&K
SW1, SW2
1
DEV-14056
TEENSY_3.5
SparkFun Electronics
TEENSY1
17
LTST-C170GKT
LED_GRN
Lite-On Inc.
D1, D2, D3, D4, D5, D6, D7, D8 +9
2
C2012X5R1V106M085AC
10uF
TDK Corporation
C1, C2
7
C0805T104K5RAL7800
0.1uF
KEMET
C3, C4, C5, C6, C7, C8, C9
1
ERJ-6ENF2201V
2.2k
Panasonic Electronic Components
R1
5
ERJ-6ENF5901V
5.9k
Panasonic Electronic Components
R2, R4, R6, R8, R10
16
ERJ-6ENF2870V
287
Panasonic Electronic Components
R3, R5, R7, R9, R11, R13, R15, R17 +8
4
ERJ-6ENF75R0V
75
Panasonic Electronic Components
R12, R14, R16, R18

Backlight controller 6x3 design files

The KiCad project lives in the janelia-kicad/backlight_controller_6x3 repository on GitHub; these links point at the commit this page was built from.

Backlight controller 6x3: common questions

What microcontroller does the Backlight controller 6x3 use?

The Backlight controller 6x3 is built around the DEV-14056, from the NXP family.

How big is the Backlight controller 6x3 PCB?

The Backlight controller 6x3 measures 140.3 × 67.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Backlight controller 6x3?

87 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Backlight controller 6x3 design files?

From the janelia-kicad/backlight_controller_6x3 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Backlight controller 6x3 design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Backlight controller 6x3 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
