Solder-Paste-Dispenser with-DCMotor

Jarins·Solder-Paste-Dispenser-with-DCMotor·Hardware/SPD_DC_MotorHBridge.kicad_pcb

Solder-Paste-Dispenser with-DCMotor PCB layout, top view — open source STM32 board by Jarins

About the Solder-Paste-Dispenser with-DCMotor PCB

Solder-Paste-Dispenser with-DCMotor is an open source STM32 PCB design by Jarins, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 70 × 20.1 mm, with 48 components from 30 distinct parts.

Its main chip is the STM32F103C8Tx, from the STM32 family. Other key parts include the MCP1826S-3.3 and TB67H451FNG. By type, the board carries 11 capacitors, 11 resistors, 5 connectors, 5 diodes, 3 ICs and 3 switches.

It belongs with the robotics & motion, displays & leds and power & battery designs in this gallery.

From the project

Motorized solder paste dispenser

+ Controled with 32bit processor STM32F103C8T6 ( original is STM32F030) + used output H-bridge for motor control TB67H451FNG. No need cooling with during operation. + + DC micromotor 6V / 60 rpm with gearbox without thread rod

+ redesigned mechanism of operation and piston mounting and mainly redesigned Syringe mount, which can be removed and put on without disassembling the dispenser

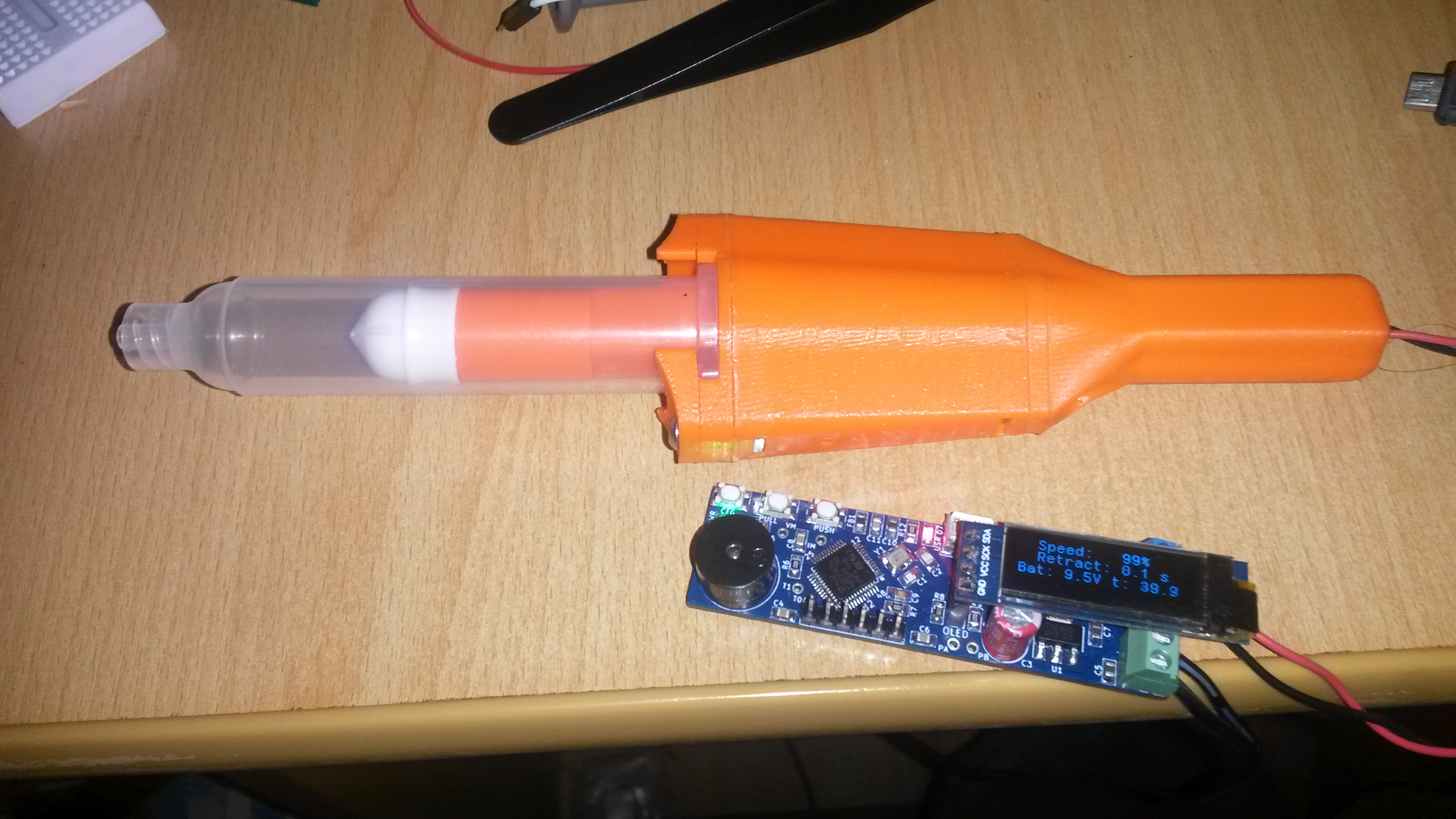

Solder-Paste-Dispenser with-DCMotor, from the project README
From the project README

Main components on the Solder-Paste-Dispenser with-DCMotor

MCP1826S-3.3STM32F103C8TxTB67H451FNG

Solder-Paste-Dispenser with-DCMotor bill of materials (BOM)

48 components, 30 distinct parts.

QtyPartRefs
1
MCP1826S-3.3
U1
1
STM32F103C8Tx
U2
1
TB67H451FNG
U3
1
TSX-3225 16MHz
Y1
2
Screw_Terminal_01x02
J1, J2
1
Display
J3
1
SWDIO
J4
1
USB_Micro
J5
1
Buzzer
BZ1
5
MountingHole_Pad
IM1, MP1, MP2, MP3, VM1
3
TactSwichWhite
SW1, SW2, SW3
2
MountingHole_Pad
T0, T1
1
3.3V
D2
1
16V
D4
1
MBR130LSFT1G
D5
2
LED_Small_ALT
D6, D7
1
MPZ1608S221ATA00
FB1
2
10p
C1, C2
1
100u/35V
C3
4
100n
C4, C6, C8, C9
Show 10 more
QtyPartRefs
1
1u
C5
2
2.2u
C7, C10
1
104
C11
1
0
R2
1
51k
R4
1
5k6
R5
2
10k
R6, R7
2
2k2
R8, R9
2
510R
R12, R15
2
22
R13, R14

Solder-Paste-Dispenser with-DCMotor design files

The KiCad project lives in the Jarins/Solder-Paste-Dispenser-with-DCMotor repository on GitHub; these links point at the commit this page was built from.

Solder-Paste-Dispenser with-DCMotor: common questions

What microcontroller does the Solder-Paste-Dispenser with-DCMotor use?

The Solder-Paste-Dispenser with-DCMotor is built around the STM32F103C8Tx, from the STM32 family.

How big is the Solder-Paste-Dispenser with-DCMotor PCB?

The Solder-Paste-Dispenser with-DCMotor measures 70 × 20.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Solder-Paste-Dispenser with-DCMotor?

48 components, from 30 distinct parts. The full bill of materials is listed on this page.

Where can I download the Solder-Paste-Dispenser with-DCMotor design files?

From the Jarins/Solder-Paste-Dispenser-with-DCMotor repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Solder-Paste-Dispenser with-DCMotor design in my own project?

Yes, under the terms of its GPL-3.0 license, which Jarins chose for the repository.

Can I test firmware for the Solder-Paste-Dispenser with-DCMotor without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
