About the Amiga-HDMI-Through-Hole PCB
Amiga-HDMI-Through-Hole is an open source PCB design by jasonsbeer, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 170.2 × 107.1 mm, with 15 components from 11 distinct parts.
Other key parts include the 74AHC86N, 74LVC574A and LD1117A. By type, the board carries 5 capacitors, 4 ICs, 4 connectors, 1 jumper and 1 resistor.
It belongs with the retro computing designs in this gallery.
From the project

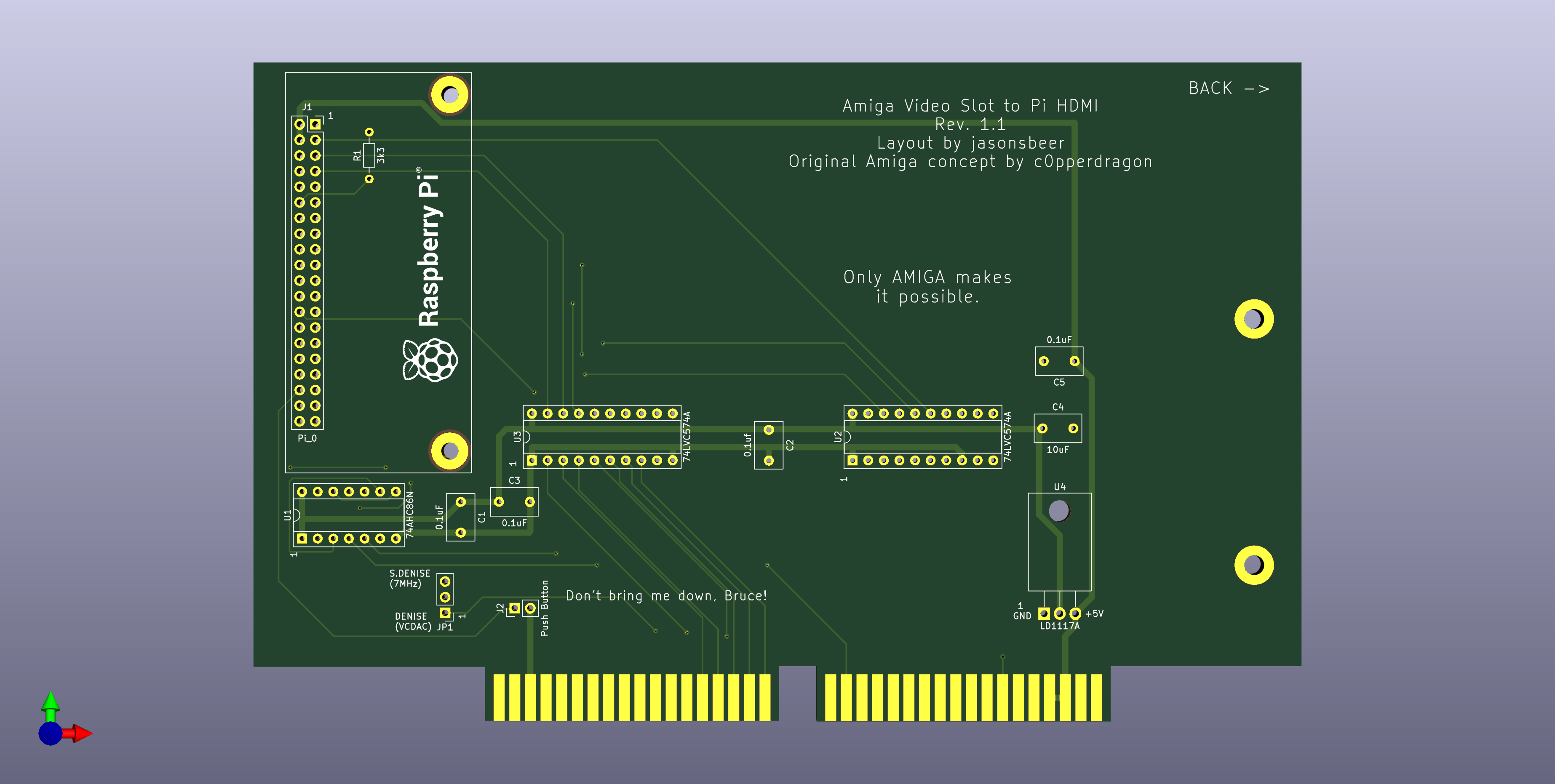

Amiga Video Slot to HDMI Adapter
There are mounting holes to facilitate the use of a support bracket, which can be 3D printed. The bracket files can be found here.
Set JP1 to match the Denise version in your Amiga. S.Denise = Super Denise (CSG 8373) or Denise (MOS 8362). An incorrect jumper setting will result in a low quality image. Connect an HDMI cable to the Raspberri Pi and to an HDMI or DVI monitor. If you do not have a support bracket, I strongly encourage you to place a peice of thin cardboard between the video card and the power supply of the Amiga 2000. Tape it in place to ensure the card will not short out on the…

Main components on the Amiga-HDMI-Through-Hole
Amiga-HDMI-Through-Hole bill of materials (BOM)
15 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74AHC86N | DIP-14_W7.62mm_Socket | U1 |
| 2 | 74LVC574A | DIP-20_W7.62mm_Socket | U2, U3 |
| 1 | LD1117A | TO-220-3_Horizontal_TabDown | U4 |
| 1 | CN203 | Amiga 2x18 Card Edge Male | CN203 |
| 1 | CN207 | Amiga 2x18 Card Edge Male | CN207 |
| 1 | Pi_0 | PinSocket_2x20_P2.54mm_Vertical | J1 |
| 1 | Push Button | PinHeader_1x02_P2.54mm_Vertical | J2 |
| 1 | JP1 | PinHeader_1x03_P2.54mm_Vertical | JP1 |
| 4 | 0.1uF | C_Disc_D7.5mm_W4.4mm_P5.00mm | C1, C2, C3, C5 |
| 1 | 10uF | C_Disc_D7.5mm_W4.4mm_P5.00mm | C4 |
| 1 | 3k3 | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R1 |
Amiga-HDMI-Through-Hole design files
The KiCad project lives in the jasonsbeer/Amiga-HDMI-Through-Hole repository on GitHub; these links point at the commit this page was built from.
Amiga-HDMI-Through-Hole: common questions
How big is the Amiga-HDMI-Through-Hole PCB?
The Amiga-HDMI-Through-Hole measures 170.2 × 107.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Amiga-HDMI-Through-Hole?
15 components, from 11 distinct parts. The full bill of materials is listed on this page.
Where can I download the Amiga-HDMI-Through-Hole design files?
From the jasonsbeer/Amiga-HDMI-Through-Hole repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Amiga-HDMI-Through-Hole design in my own project?
Yes, under the terms of its GPL-3.0 license, which jasonsbeer chose for the repository.
