Esp32-laser security

JaswantBhartiya·esp32-laser-security·esp32-laser-security-pcb/esp32-laser-security.kicad_pcb

Esp32-laser security PCB layout, top view — open source board by JaswantBhartiya

About the Esp32-laser security PCB

Esp32-laser security is an open source PCB design by JaswantBhartiya, published on GitHub under the MIT license. It is a 2-layer board measuring 63.5 × 52 mm, with 11 components from 9 distinct parts.

By type, the board carries 6 resistors, 3 connectors, 1 switch and 1 diode.

It belongs with the iot & wireless and sensors designs in this gallery.

From the project

A wire-free laser security tripwire system powered by an ESP32-S3. Features independent transmitter nodes, multi-bounce mirror pathing, dynamic auto-ambient light calibration, custom KiCad PCB files, and 3D mechanical mounts.

A professional, budget-friendly embedded security system built around a custom PCB and the ESP32 DevKit V1. This project utilizes an optical multi-bounce laser path bounced across real glass mirrors to form a tight perimeter grid, monitored dynamically by an onboard Light Dependent Resistor (LDR).

Wireless Perimeter Design: The laser operates on its own isolated battery across the room, eliminating long, messy signal lines back to the controller. Multi-Bounce Path: Supports $650\text{nm}$ red or $532\text{nm}$ green lasers, holding a sharp focal point through 4 to 5 mirror reflections. Auto…

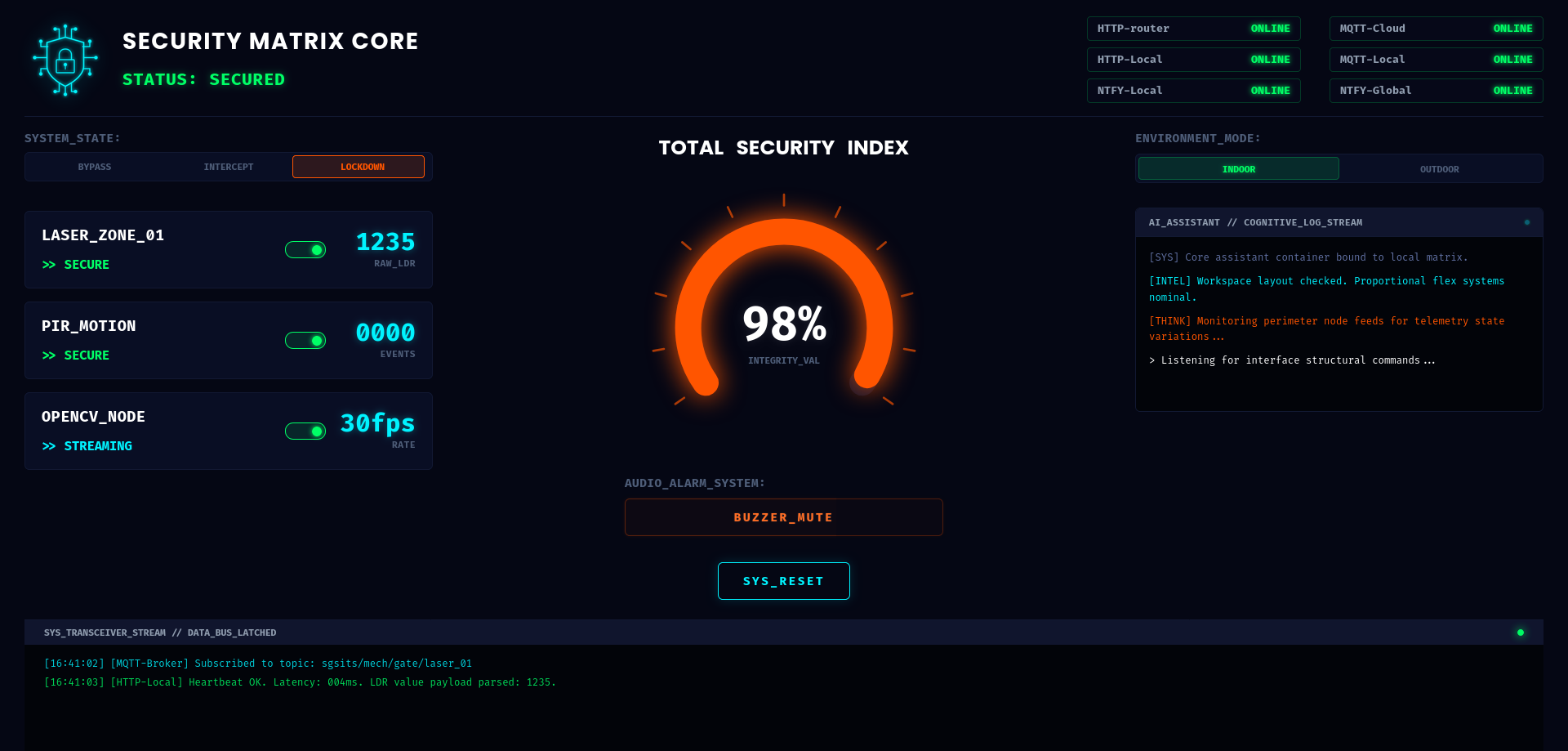

Esp32-laser security, from the project README
From the project README

Esp32-laser security bill of materials (BOM)

11 components, 9 distinct parts.

QtyPartRefs
1
EXT. RG LED
J1
1
Headers
J2
1
EXT. BUZZER
J3
1
RESET BUTTON
SW1
1
RG LED
D1
1
LDR
R1
1
10kΩ
R2
2
330Ω
R3, R4
2
220Ω
R5, R6

Esp32-laser security design files

The KiCad project lives in the JaswantBhartiya/esp32-laser-security repository on GitHub; these links point at the commit this page was built from.

Esp32-laser security: common questions

How big is the Esp32-laser security PCB?

The Esp32-laser security measures 63.5 × 52 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp32-laser security?

11 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the Esp32-laser security design files?

From the JaswantBhartiya/esp32-laser-security repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Esp32-laser security design in my own project?

Yes, under the terms of its MIT license, which JaswantBhartiya chose for the repository.
