The-FOGBoard
About the The-FOGBoard PCB
The-FOGBoard is an open source PCB design by Jay-Tai, published on GitHub. It is a 2-layer board measuring 41 × 58 mm, with 4 components from 2 distinct parts.
Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 3 switches and 1 IC.
It belongs with the keyboards and displays & leds designs in this gallery.
From the project
FOGBOARD is one of my first hardware projects that I have worked on! Feel free to open source anything! I will be trying to make more advanced versions in the future!

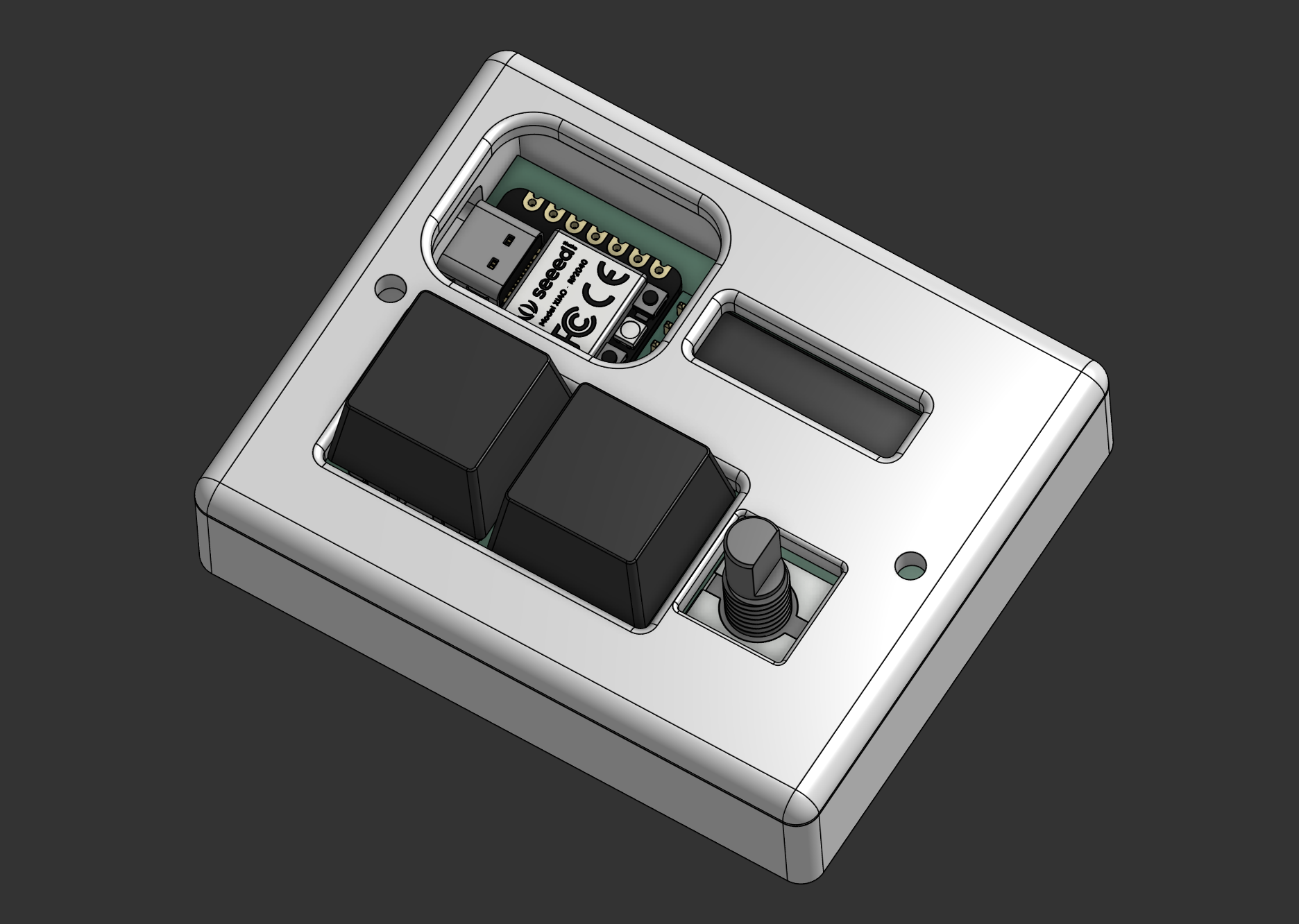

FOGBoard is a 2-key, 1-encoder, and a Macropad with a screen that is based off of the SEEED XIAO RP2040. It's firmware is based off of the QMK Firmware & C Language.
It serves as a shortcut tool meant to be used for reimaging computers - Making it easier to perform tasks with the FOG Server.
- Dual Layer 3D Printed PLA Outer Casing - 2 Mechanical Keys - 0.91" OLED Screen - Rotary encoder for scrolling and entering - Custom PCB
Main components on the The-FOGBoard
The-FOGBoard bill of materials (BOM)
4 components, 2 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MOUDLE-SEEEDUINO-XIAO | XIAO-Generic-Hybrid-14P-2.54-21X17.8MM | U1 |
| 3 | SW_Push | SW_Cherry_MX_1.00u_PCB | SW1, SW2, SW3 |
The-FOGBoard design files
The KiCad project lives in the Jay-Tai/The-FOGBoard repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/Macropad.kicad_pcb
- SchematicPCB/Macropad.kicad_sch
- BOMBOM.csv
The-FOGBoard: common questions
How big is the The-FOGBoard PCB?
The The-FOGBoard measures 41 × 58 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the The-FOGBoard?
4 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the The-FOGBoard design files?
From the Jay-Tai/The-FOGBoard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the The-FOGBoard design in my own project?
The repository has no license, so all rights stay with Jay-Tai. Use it as a reference, and ask the author before reusing the design.
