About the ReGary PCB

ReGary is an open source FPGA PCB design by jbilander, published on GitHub under the CC-BY-SA-4.0 license. It is a 4-layer board measuring 38 × 38 mm, with 38 components from 19 distinct parts.

Its main chip is the GW1N-UV1P5LQ100, from the FPGA family. Other key parts include the LM1117-3.3, TPS73643DBV, SN74CBT16210 and PLCC_84_plug. By type, the board carries 23 capacitors, 9 ICs, 3 connectors and 2 resistors.

From the project

A drop in replacement PCB for the Fat Gary chip

This is WORK IN PROGRESS. If you generate gerbers and order PCBs from this source you are doing so completely at your own risk!.

BOM Rev. 1A --------- Reference | Name/Value | Package | Notes -|-|-|-| U1 | GW1N-UV1P5LQ100 | TQFP-10014x14mmP0.5mm | Gowin FPGA GW1N-UV1P5LQ100 U2 | LM1117-3.3 | SOT-223 | Low-Dropout Linear Regulator 3.3 Volt U3 | S-1132B43-M5T1U or TPS73643DBVR | SOT-23-5 | Low-Dropout Linear Regulator 4.3 Volt S-1132B43-M5T1U TPS73643DBVR U4-U7 | SN74CBT16210 | TSSOP-48 6.1x12.5mmP0.5mm | 20-BIT FET Bus switch with level shifting, high-speed TTL-compatible. SN74CBT16210CDGGR…

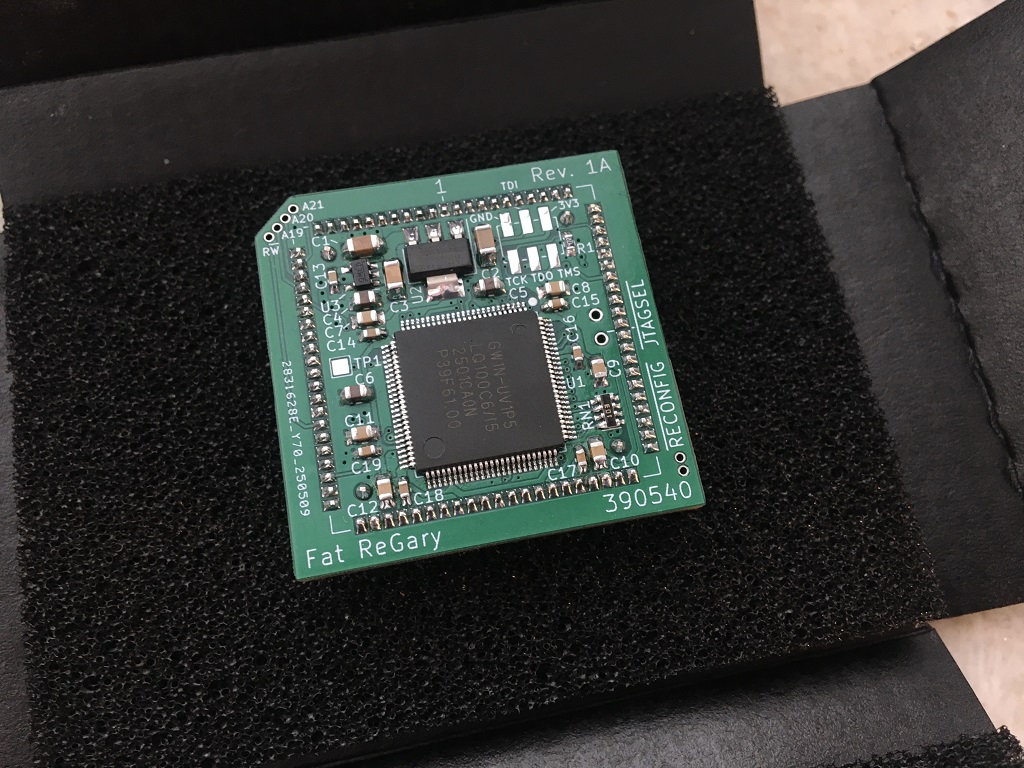

ReGary, from the project README
From the project README

Main components on the ReGary

GW1N-UV1P5LQ100LM1117-3.3TPS73643DBVSN74CBT16210PLCC_84_plug

ReGary bill of materials (BOM)

38 components, 19 distinct parts.

QtyPartRefs
1
GW1N-UV1P5LQ100
U1
1
LM1117-3.3
U2
1
TPS73643DBV
U3
4
SN74CBT16210
U4, U5, U6, U7
1
PLCC_84_plug
U8
1
PLCC_84_plug
U9
1
Conn_01x02
J1
1
Conn_01x04
J2
1
Conn_01x02
J3
1
Conn_02x03_Odd_Even
JTAG1
3
10uF
C1, C2, C3
1
1uF
C4
2
1uF
C5, C6
6
0.1uF
C7, C8, C9, C10, C11, C12
1
0.1uF
C13
6
0.01uF
C14, C15, C16, C17, C18, C19
4
0.01uF
C20, C21, C22, C23
1
4k7
R1
1
10k
RN1

ReGary design files

The KiCad project lives in the jbilander/ReGary repository on GitHub; these links point at the commit this page was built from.

ReGary: common questions

What microcontroller does the ReGary use?

The ReGary is built around the GW1N-UV1P5LQ100, from the FPGA family.

How big is the ReGary PCB?

The ReGary measures 38 × 38 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the ReGary?

38 components, from 19 distinct parts. The full bill of materials is listed on this page.

Where can I download the ReGary design files?

From the jbilander/ReGary repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the ReGary design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which jbilander chose for the repository.

Can I test firmware for the ReGary without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
